Weightless Flow Control Pellet Batching Batching Machine In Grain Industries
Batching System Machine Used In Pellet Batching Systems In Grain, Chemical, Feed And Other Industries.
1. Scope of application
The punching plate flow controller is suitable for the flow measurement of bulk materials, and it is widely used in the batching system of grain, cement, chemical industry, feed and other industries.
2. Technical parameters
| Model | DCS-20CB |
| Rated range | (2000～20000)kg/h |
| Cumulative measurement accuracy | ±1% |
| Power supply voltage | AC 220V ±5% ,50HZ |
| Average power | 40W |
| Working environment |
(-10～40)℃ relative humidity ≤90% non-condensing |
| Environmental vibration Amplitude |
≤1mm Frequency; ≤25 HZ |
|

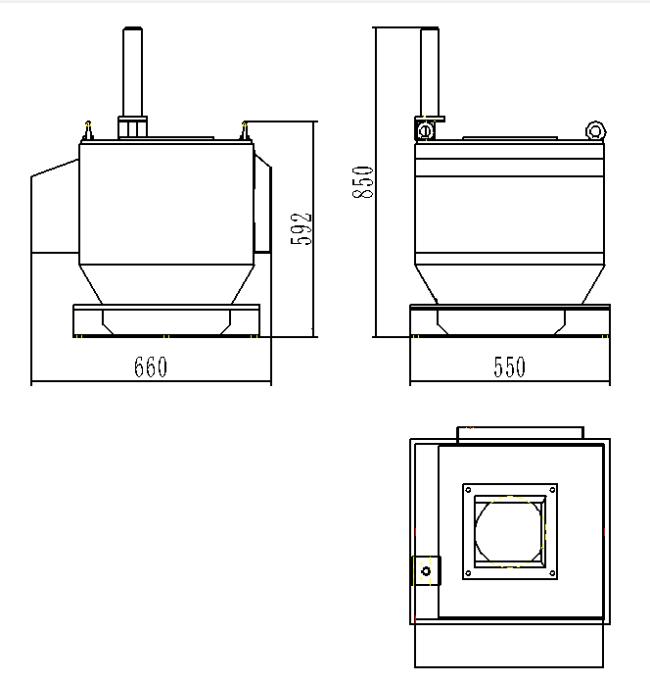

Dimensions (mm) |
660×550×850 |
3. Features
a. Adopt high-precision weighing sensor and quantitative controller, 24-bit high-precision low-temperature drift Σ-Δ conversion chip, 300Hz typical sampling rate; high measurement accuracy and good stability;
b. The product is easy to operate, just set the target flow rate, turn on the automatic knob, and the device will directly enter the automatic operation state.
c. It has the functions of automatic flow statistics, printing and data communication.
d. The parts in contact with the material are made of stainless steel, which is corrosion-resistant and prolongs the service life of the equipment.
e. If there is a chain alarm for lack of material during automatic work, one of the machines will stop, and other online products will stop running at the same time to ensure the consistency of material ratio.
4. Product sample picture
