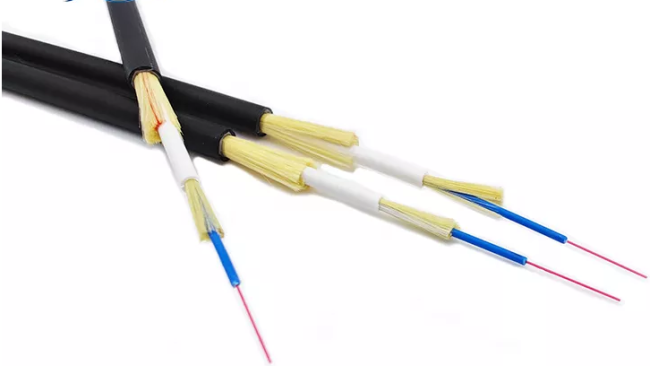

YTTX Double Sheathed FTTH Aramid Yarn Round Optical Cable

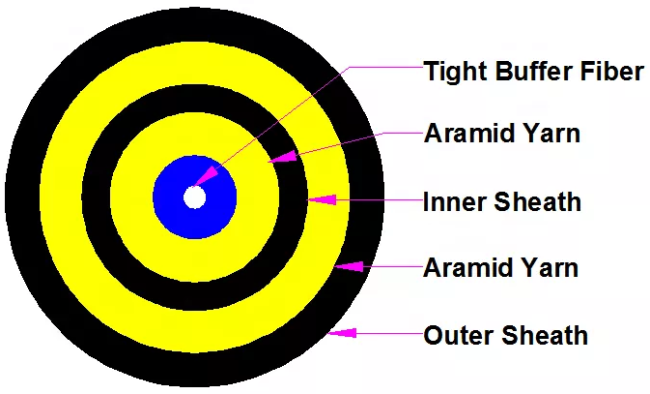

Multipurpose distribution cable adopts 900 μ M Flame retardant tight buffered optical fiber is used as optical communication medium, the tight buffered optical fiber is wrapped with a layer of aramid yarn as a strength component unit, and the cable is sheathed with PVC or LSZH (low smoke, halogen-free, flame retardant).
Features
Tightly buffered fiber is easy to peel off
Compact buffer fiber has excellent flame retardancy
Aramid yarn has excellent tensile strength
Select low friction jacket
Application
Optical fiber jumper or pigtail
Cable distribution of indoor riser layer and booster layer
Interconnection between instruments and communication equipment
Technical Data
|
ITEM
|
Technical Parameters
|
|
|
Fiber
|
Fiber type
|
G657A
|
|
Fiber count
|
1
|
|
|
Color
|
Red
|
|
|
Tight Buffer
|
Material
|
LSZH
|
|
Diameter
|
0.9mm
|
|
|
Color
|
Blue
|
|
|
Strength member
|
Material
|
Aramid Yarn+ Water blocking aramid yarn
|
|
Inner Jacket
|
Material
|
LSZH Fire retardant
|
|
Thickness
|
0.4mm (±0.05mm)
|
|
|
Color
|
White
|
|
|
Diameter
|
2.4mm(±0.2mm)
|
|
|
Strength member
|
Material
|
Aramid Yarn+ Water blocking aramid yarn
|
|
Outer jacket
|
Material
|
LSZH Fire retardant
|
|
Color
|
Black
|
|
|
Thickness
|
0.8mm (±0.1mm)
|
|
|
Diameter
|
5.0mm (±0.2mm)
|
|
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer with 18 years' history.
2. What is your fiber brand ?
Corning, SEI, YOFC, FiberHome, etc
3. Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5. Which kind of certification you have ?
ISO9001, SGS, 3C Anatel.
6. What is your delivery time?
Usually within 2-3 working days
7. What about your annual production capacity?
Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;
FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;
Patch Cord/Pigtails, it is 12,400,000 Pieces per year.
8. What is your payment way?
T/T, L/C, Western Union and Paypal.
9. Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
10. Can you supply your cable test value form?
-Yes. After finishing production , we can supply if you ask.
11. Do your factory inspect every roll of cables?
-Yes. we factory do 100% inspection per order.
