Outdoor Fiber Optic Cable GYTA53 2-144 Cores Armored Double Jacket Applied for Aerial/Direct Buried
Popular GYTA53 armored gyta53 fiber optic cable double sheath direct buried fiber optic cable

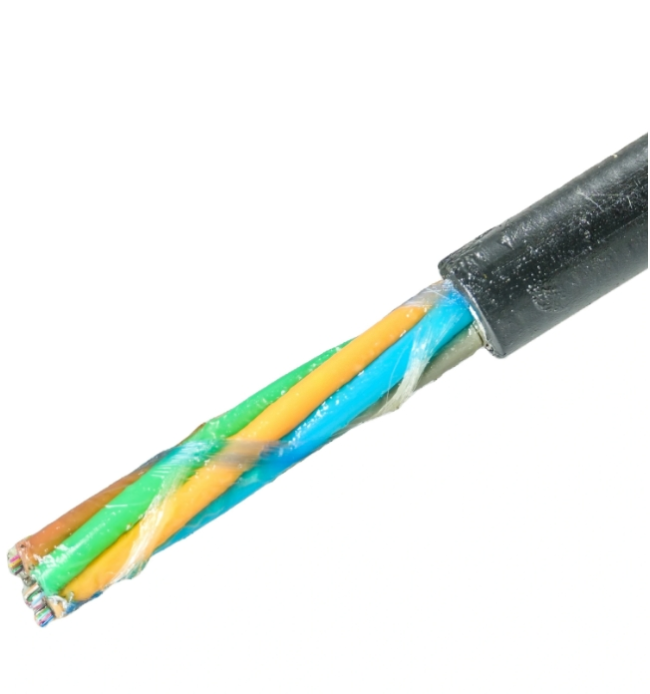

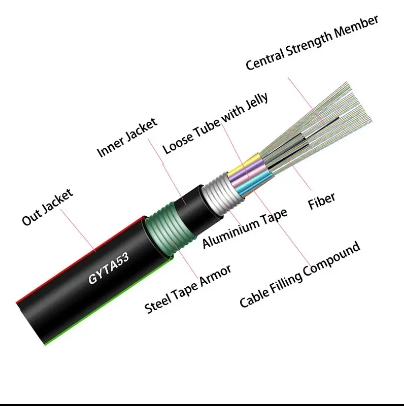

The fibers are placed in a loose tube which is made of high modulus plastic and filled with gel. The tubes are twisted around the metallic strength member to form the cable core. An Aluminum tape (APL) is wrapped around the core, and the core is filled with the water-blocking compound. Then the cable core is coated with a PE inner jacket. After the steel tape is longitudinally armored on the inner jacket, the cable is finalized with a PE outer jacket.
Features
- Metal Reinforcing Member
- Aluminum-Polyethylene Bonded Inner Sheath,Corrugated Steel Tape Armor
- Communication Outdoor Optical Cable with Polyethylene Outer Sheath
Application
- Directly Buried
- Long Distance Communication Or Local Area Communication
Technical Parameter
| Fiber Count | Tube No | Cable Diameter(mm) |
Cable Weight(kg/km) | Tensile Strength(N/100mm) |
Crush Strengt(N/100mm) |
Attenuation Coefficient(db/KM) |
Bending Radius(mm) |
|
| Long/Short Term | Long/Short Term | 1310nm | 1550nm | Static/Dynamic | ||||
| 2-36 | 6.0 | 12.2 | 145 | 1000/3000 | 1000/3000 | <=0.36 | <=0.22 | 12.5D/25D |
| 38-72 | 6 | 14.7 | 225 | 1000/3000 | 1000/3000 | <=0.36 | <=0.36 | 12.5D/25D |
| 74-96 | 8 | 16.5 | 270 | 1000/3000 | 1000/3000 | <=0.36 | <=0.36 | 12.5D/25D |
| 98-120 | 10 | 18.1 | 320 | 1000/3000 | 1000/3000 | <=0.36 | <=0.36 | 12.5D/25D |
| 122-144 | 12 | 19.7 | 365 | 1000/3000 | 1000/3000 | <=0.36 | <=0.36 | 12.5D/25D |

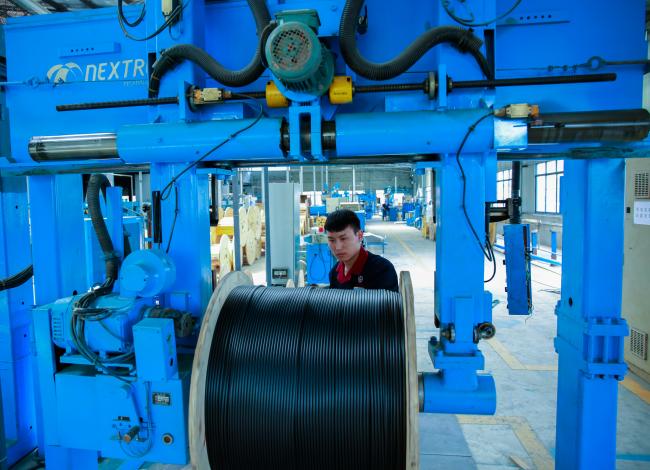

Factory View
