Outdoor Steel Armored Cable GYTS Single Mode with G652D Direct Buried Overhead
GYTS fiber optic cable is used for duct or aerial applications. These steel tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance. The cable is the stranded loose tube fiber optic cable with compact structure; the cable jacket is made of strong Polyethylene; High strength loose tube that is hydrolysis resistant. We provides GYTS from 2 fiber cores to 144 fiber cores. Both single mode type and multimode types are available. We also provide Customized Service such as fiber number, fiber color and cable length, etc.
Application
The communication main line for voice or data between buildings.
Installed in channels or underground pipes.
Technical Parameter
| Fiber Count | Outer Dia.(mm) | Tensile Resistance(N) | Crush Resistance(N/100m) | Mini Bending Radius(mm) | Attenuation(dB/km) | Operation Temperature(℃) | N.W(kg/km) | ||||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | 1310nm | 1550nm | ||||
| 12 | 8.4 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40℃~+60℃ | 75 |
| 24 | 8.4 |
600 |
1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40℃~+60℃ | 75 |
| 36 | 8.7 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40℃~+60℃ | 85 |
| 48 | 9.2 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40℃~+60℃ | 85 |
| 72 | 9.8 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40℃~+60℃ | 90 |
| 96 | 11.3 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40℃~+60℃ | 140 |
| 144 | 13.8 | 600 | 1500 | 300 | 1000 | 20D | 10D | ≤0.36 | ≤0.22 | -40℃~+60℃ | 190 |
Company Profile
Sichuan Yuantong Communication Co., Ltd., a nationally recognized key high-tech enterprise of significant importance, is strategically located in the enchanting and prosperous "land of abundance" - Chengdu.
Company Qualification
Company has got many national approval certificates.
Exhibition Photos
We have built a long-term strategic cooperative relationship with a number of domestic and oversea telecom operators.

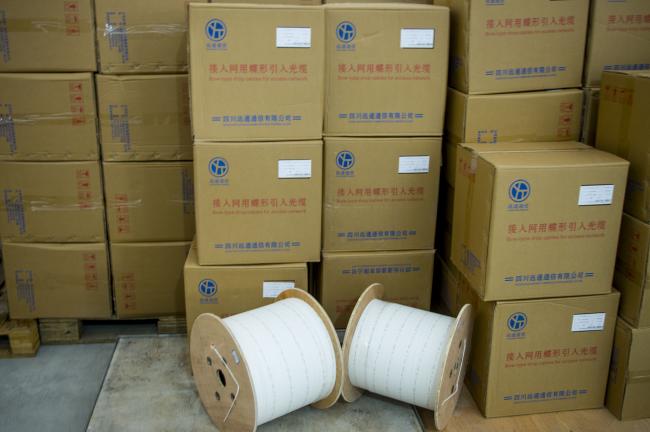

Packaging & Shipping
Products sold widely to America, Europe, Middle East, Africa, Southeast Asia, and other continents.
FAQ
1.Are you the actual factory?
Yes, we are the actual factory with 20 years' history.
2.What is your fiber brand?
Fiber brand: YTTX
3.What are your main products?
Outdoor fiber optic cables; indoor fiber optic cables; FTTH Drop cables; ADSS;Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
4.What is the guarantee period for product quality?
The guarantee period for fiber optic cable is 25 years.
5.Do you have certificates for raw materials?
We have established long-term cooperative relationships with qualified ISO9001 and ROHS raw material suppliers.
6.What is your delivery time?
Generally, it takes 5 to 7 working days after receiving your advance payment. The specific time depends on the items and the quantity of your order.
OEM and ODM order highly welcome !
