Overhead Aerial Fiber Optic Cable 2 4 6 8 10 12 Core Self-supporting Steel tape Gyxtc8s Cable
GYXTC8S Fiber Optic Armoured Steel Tape Cable Steel Wire GYXTC8S Self Sustainment Overhead Aerial Fiber Optic Cable.
2 to 12 fibers OM1,OM2,OM3,OM4 multimode or OS1/OS2 (ITU-T G.652D) singlemode 250um Single loose tube metallic Corrugated Steel Tape armored outdoor self-supporting aerial fiber cable. The messenger part is made up of stranded wires as the supporting part,which is completed with a Polyethylene (PE) sheath to be a figure 8 structure.

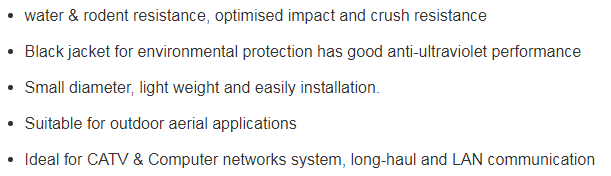

Application
Technical Parameter
| Fiber Count | Out Sheath Dia.(mm) | Weight(kg) | Minimum Allowable Tensile Resistance(N) | Minimum Allowable Crush Load(N/100mm) | Minimum Bending Radius(mm) | Storage Temperature(℃) | |||
| Short Term | Long Term | Short Term | Long Term | Short Term | Long Term | ||||
| 24 | 5.6+9.2/16.8 | 170 | 8000 | 3000 | 1000 | 3000 | 20D | 10D | -40~+60 |
| 36 | 5.6+9.7/17.3 | 190 | 8000 | 3000 | 1000 | 3000 | 20D | 10D | -40~+60 |
| 48 | 5.6+11/18.6 | 210 | 8000 | 3000 | 1000 | 3000 | 20D | 10D | -40~+60 |
| 72 | 5.6+11.8/19.4 | 250 | 8000 | 3000 | 1000 | 3000 | 20D | 10D | -40~+60 |
Company Profile
- Sichuan Yuantong Communication Co., Ltd., which is specializing in all kinds of optical cable
over 20 years.

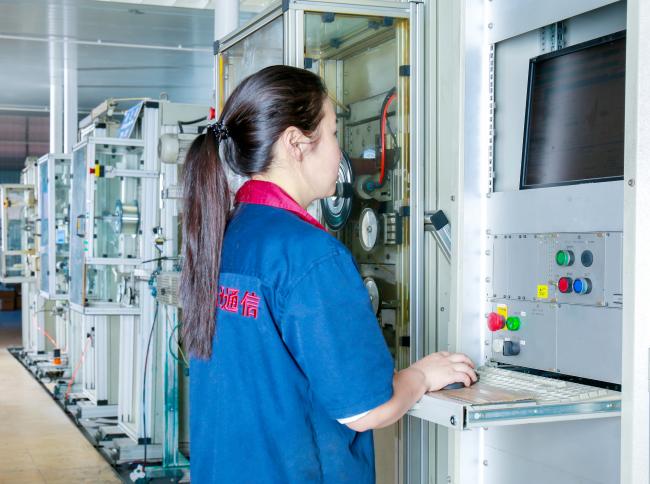

- We're a factory of optical cable in Chengdu and our main product is FTTH drop cable and
outdoor fiber optical cable and etc.
- We have been in this field for 20 years and can offer you the product at a very competitive
price and with high quality.
Company Qualification
Our company has got many national approval certificates in the fields of communications
and optical fiber manufacturing.
Exhibition Photos
We sell optical cable products to many countries and have established long-term
strategic partnerships with many domestic and foreign telecom operators.

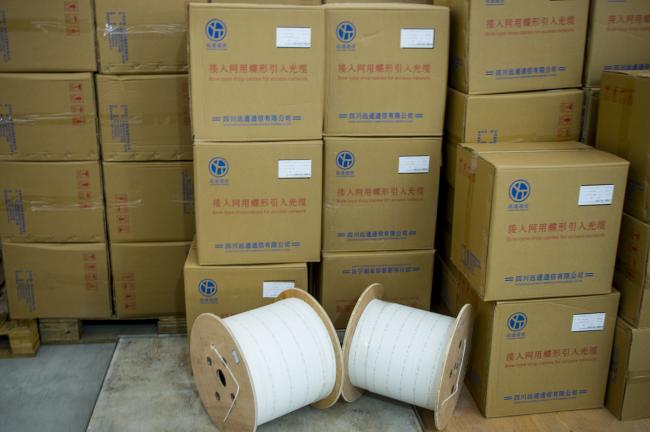

Packaging & Shipping
The optical fiber and cable products we manufacture are widely sold in America, Europe,
the Middle East, Africa, Southeast Asia and other continents.
FAQ
1.Are you the actual factory?
Yes, we are the actual factory with 20 years' history.
2.What is your fiber brand?
Fiber brand: YTTX
3.What are your main products?
Outdoor fiber optic cables; indoor fiber optic cables; FTTH Drop cables; ADSS;Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
4.What is the guarantee period for product quality?
The guarantee period for fiber optic cable is 25 years.
5.Do you have certificates for raw materials?
We have established long-term cooperative relationships with qualified ISO9001 and ROHS raw material suppliers.
6.What is your delivery time?
Generally, it takes 5 to 7 working days after receiving your advance payment. The specific time depends on the items and the quantity of your order.
OEM and ODM order highly welcome !
