PE Jacket Central Loose Tube Underwater Fiber Optic Cable GYTA53 Armoured Multi 144 Core
Features

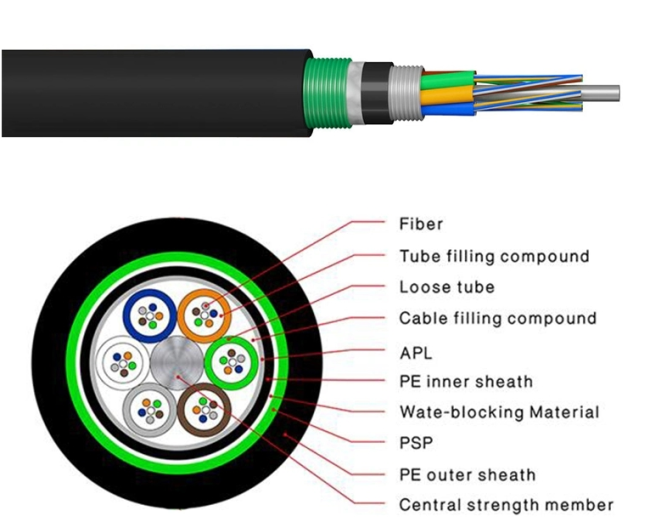

Double jacket and Corrugated steel tape armoring for water & rodent resistance, optimised impact and crush resistance
Application
- Suitable for outdoor duct and direct burial applications
- Ideal for environments where impact protection is required
- Long distance and local aera network communication
Technical Parameter
| Fiber Count | 144 | |
| Tube No | 12 | |
| Cable Diameter(mm) | 19.7 | |
| Cable Weight(kg/km) | 365 | |
| Tensile Resistance(N) | Long Term | 1000 |
| Short Term | 3000 | |
| Crush Resistance(N/100m) | Long Term | 1000 |
| Short Term | 3000 | |
| Mini Bending Radius(mm) |
Dynamic | 25D |
| Static | 12.5D | |
| Attenuation(dB/Km) | 1310nm | ≤0.36 |
| 1550nm | ≤0.22 | |
Company Profile
Sichuan Yuantong Communication Co., Ltd is one of the leading manufacturer in the cables
and telecom accessories. We have more than 20 years experience in this line.
