380V Egg Tray Machine Paper Pulp Moulding Recycled Waste Paper 6000pcs/Hr
Used Paper Pulp Moulding Recycled Waste Paper 6000pcs/Hr Egg Tray Machine
Machine Introduction:
Egg tray machine uses waste paper as raw materials to produce different kinds of products according to your requirements, such as egg trays, egg cartons, egg boxes, apple trays, fruit trays, industrial trays, seeding trays etc. Our machine include pulp making system ,forming system and drying system.
Raw material:
Waste paper, widely sourced and easy to collect.
Specification:
|
Tech Date |
|
| Production name | Egg Tray Machine |
| Model | 5by8 face |
| Capacity | 6300pcs/h |
| No. of Molds | 8 plate plus 1 plate |
| Labor needed | 5-6/shift |
| Machine color | Can customize as per clients, like grey, silver, blue |
| Template Size | 1550mm*470mm |
| Dimension |
3600**2250*2500mm |
| Voltage | 380V,voltage can be customized |
| Power | 180kw |
| Mold material | Aluminum |
| Rotary speed | 23 times per minute |
| Drying method | Troditonal dryer and multi layer metallic dryer |
Main Features:
1) Full automatic running according to setting
2) Global famous brand of electric parts make stable running
3) Optimized design with new technology, leading to high efficiency
4) Perfect malfunction checkout system and motor protecting system guarantee safe running.
Main Equipments List:
Equipment process

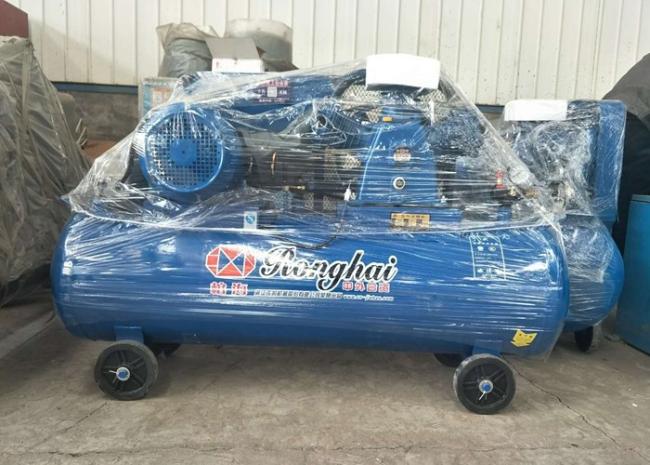

1) Forming system include forming machine,vacuum pump,vacuum container,self absorbing pump, air compressor,air tank,clean water pump, forming mould, transferring mould.

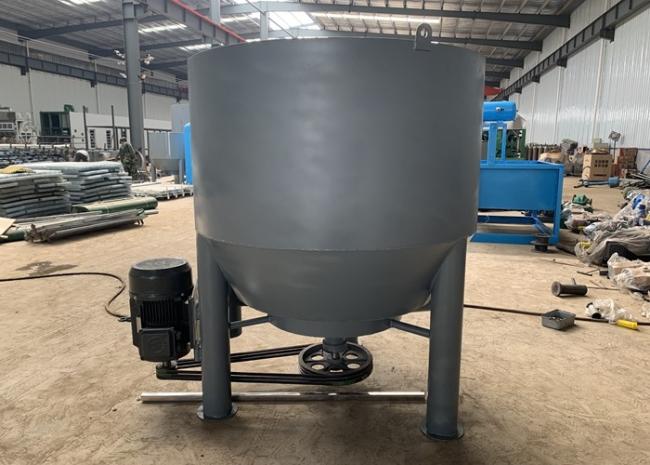

2) Pulp making system include hydraulic pulper, pulp pump, multi-function refiner machine, stirrer, pulp making control system.
3) Drying system include blower, burner, conveyer, drying control system.
4) Packing System: Automatic stacking and counting machine.
Auxiliary packaging of finished products
(1) Automatic stacking machine
(2) Packing machine
(3)Transfer conveyor
After-Sales Service
Training how to instal the machine, training how to use the machine smoothly.
Engineers available to service machinery overseas.
We have professional design team,you can tell us the egg tray making machine ,our designer can customize them.
1.Help you install equipment.
2.1 year warranty.
3.Free parts.
4.24 hours online.
Our company

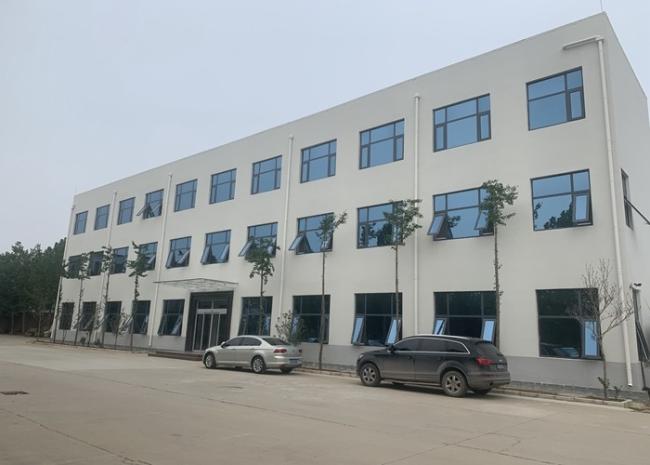

Hebei Wongs Machinery Equipment Co., Ltd is a large enterprise which specialized in producing of various kinds of paper pulp molding products and equipments ,We can product all kinds of paper pulp molding products ,such as egg tray ,egg box ,bottle tray ,paper shoes stretcher ,cans and milk box .Our equipments have already been exported to more than 30 countries,Algeria,Russia,Egype,Ukraine,Australia,Argentina,Brazil,Saudi Arabia,Libya,Syria.Our paper egg tray molding equipment have semi-automatic ,full -automatic,Excellent automatic integral device etc,with different specification different level.Forming Machine include :Rotary type,flip type ,Reciprocating type and Rolled,Drying System:Energy:coal/dry wool/LPG/GAS/Diesel oil,it may be drying naturally in less rain area.Packing System :We have shipping machine withe pneumatic or hydraulic transmission system,we will give you best design according to our requirement.
