Six Mould Wine Tray Holder Molded Pulp Equipment 7500pcs/Hr 6-8 Rotary Metal Drying
Six Mould Wine Tray Holder 7500pcs/Hr 6-8 Rotary Metal Drying Production Line
Paper Egg tray Machine Introduction:
It is controlled highly automation, easily learned, convenient services, and can widely use in different business.It can produce egg carton, egg box, egg tray, bottle tray, agricultural train seeding cup, industrial production packing. The equipment is best-selling nation and is sold abroad.
Raw material:
The raw materials are mainly from various pulp boards such as reed pulp, straw pulp, slurry, bamboo pulp and wood pulp, and waste paperboard, waste paper box paper, waste white paper, paper mill tail pulp waste, etc. Waste paper, widely sourced and easy to collect.
Specification:
| Raw material | waste paper | Waste paper | waste paper | Waste paper | Waste paper | waste paper | |
| Eag tray Capacity | 350pcs/hour | 700pcs/hour | 1000pcs/hour | 1300pcs/hour | 2000pcs/hour | 4000pcs/hour | |
| Net weight per piece (gram) | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g | 70g-75g | |
| waste paper consumption | 0.025ton / hour | 0.06ton / hour | 0.1ton / hour | 0.13ton / hour | 135kg/ hour | 225kg / hour | |
| water consumption | 0.05ton / hour | 0.1tonhour | 0.15ton / hour | 0.2ton : hour | 0.5ton / hour | 0.6ton / hour | |
| Natural Gas consumption of Dryer | 12cbmh | 25cbmh | 35cbmh | 50cbm/h | 60cbmh | 80cbmh | |
| orker requirement | 2-3workers | 3-4workers | 4-6workers | 4-6workers | 5-7workers | 8-10workers | |
| Power Requirement | Without dryer | 20Kw | 30Kw | 40Kw | 45Kw | 70Kw | 100KWw |
| with dryer | 30Kw | 45Kw | 6OKw | 65Kw | 80Kw | 150Kw | |
| Area of workshop | without dryer | More than10OM- | More than 10o M | More than 120 MR | Mlore than 150 M | More than 200 Me | More than 250 M |
| with dryer | More than200 M | More than 240 M | More than30OM3 | More than 320 M | More than 40oMz | nore than 520M | |
| Container Requirement | without dryer | 20n*1 | 20n*1 | 40n*1 | 40n*1 | 40n*1 | 40n*1 |
| with dryer | 401*1+20n*1 | 40f*2+20n1*1 | 40n1*2+201*1 | 40n*3 | 401*3+20n'1 | 4on*6 | |

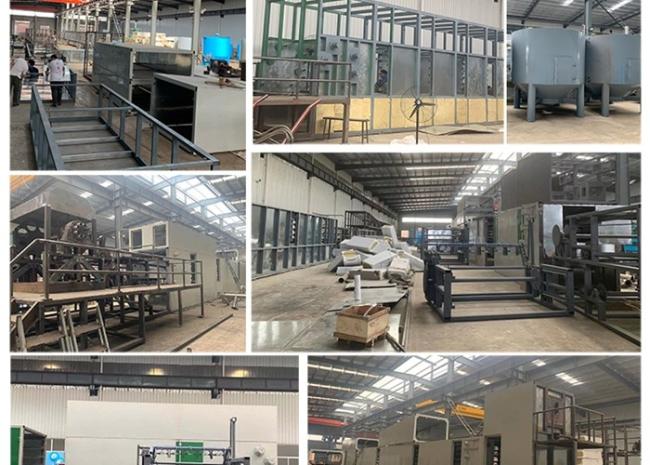

Wine tray making machine photo show
Features
1.Mainly producing the pulp molded products,such as egg tray ,egg box,fruit tray,coffee tray.
2.Material for the molded pulp products is waste paper,corrugated paper,waste newspaper,magazine.
3.Semi-automatic control, PLC+Touch screen controller.
4.Stainless steel pulp tank,the surface of platens covered with stainless steel.
5.Transferred to a flat-bed automatically
Process for egg tray machine:
Process for egg tray machine: pulp making--tray forming--drying
Pulp molding system: Hydraulic pulper,High-frequency vibration sieve frame,Pulp pump.
2. Forming system: Forming machine, Molds, Vacuum pump, Screw Air Compressor, Vacuum buffer tank, Air compressor storage tank, Refiner machine
3. Drying system: Conveyor, Blower, Induced fan, Burner, Bellows, etc.
Our Sales Service
Training how to instal the machine, training how to use the machine smoothly.
Engineers available to service machinery overseas.
Our clients show
Payment terms
Delivery from Tianjin seaport; 60 days after receive 30% T/T prepayment, 70% T/T before shipment for automatic egg tray production line with metal drying oven
Our company
We Hebei wongs macinery equipment co., Ltd company limited has a history more than 30 years in producing pulp and paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines,and so on. We win high praise from clients at home and abroad for our sophisticated craft, high quality and excellent function.
FAQ
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shijiazhuang city, Hebei province, you can fly to Zhengding airport, When you confirm flight No. and time, please feel free to contact us, then we will pick up you on time.
Q: Why you choose our company?
A:1,Our company have mademachine forabout 32 years with strong experience and advanced technology.
2,we are factory direct sale ,provide you Best Quality and Service with Reasonable price.
Q: What's the trade term and payement term?
A: 30% or 40% T/T before production; Paid in full before shipment.
Q: Will you send the equipment to us directly after completion
A: After the completion of the equipment,you must first come to the acceptance,confirm that there is no problem before delivery.
