5000pcs/Hr Apple Tray Machine Rotary 54pcs Molds
5000pcs/Hr Rotary Machine For Egg Trays Making Production Line
Machine Introduction:
Pulp Moulding production line, which uses waste paper, cardboard, leftover material of paper mill, by hydraulic pulper, mix making a certain dense pulp, and pulp is absorbed by vacuum of special metal moulding to become wet products, through drying , and shaping to become finished products.
Raw material:
The raw materials are mainly from various pulp boards such as reed pulp, straw pulp, slurry, bamboo pulp and wood pulp, and waste paperboard, waste paper box paper, waste white paper, paper mill tail pulp waste, etc.
Specification:
|
Tech Date |
|
| Production name | Egg Tray Machine |
| Labor need | 5 person/shift |
| Model | 5by8 rotary type |
| Capacity | 5000pcs/h |
| No. of Molds | 48pcs + 6 pcs |
| Machine color | Can customize as per clients |
| Template Size | 1550mm*470mm |
| Dimension |
3600**2250*2500mm |
| Voltage | voltage can be customized |
| Power | 150kw |
| Mold material | Plastic or aluminum |
| Rotary speed | 21 times per minute |
| Drying method | Brick drying line or metal drying line |

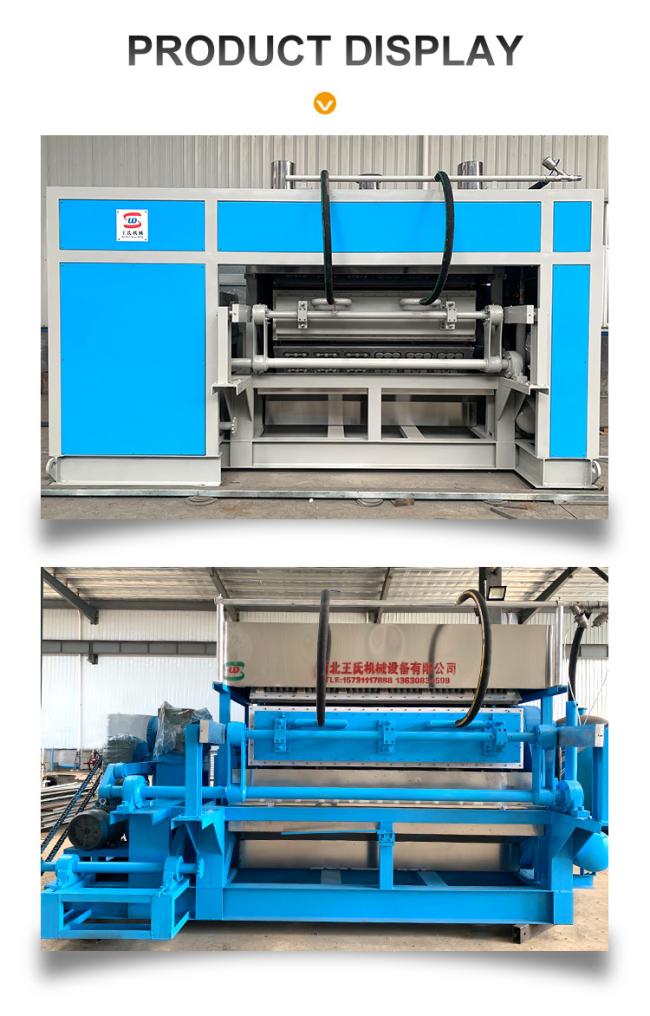

Our machine photo show:
Finished products:
Our Company Advantages:
We have our own factory,we can provide quality guaranteed products and price .
1. High efficiency and low cost.
2. Easy operation and reduce labor force.
3. Low noice and Safety.
4. Environmental protection.
5. Large output,5000-7000 pieces per hour.
Equipment process
1. Pulp system
(1) Put the raw materials into the pulping machine, add an appropriate amount of water, and stir for a long time to turn the waste paper into pulp and then put it into the pulp storage tank for storage.
(2) Put the pulp in the storage tank into the mixing tank, and adjust the pulp concentration in the mixing tank. The white water in the return tank and the thick slurry in the storage tank are further stirred by the homogenizer. After being adjusted into suitable pulp, it is put into the supply tank to be used by the forming system.
Equipment used: pulping machine, homogenizer, slurry supply pump
2. Molding system
(1) The pulp in the supply tank is fed into the forming machine, after being adsorbed by the vacuum system, the pulp is passed through the mold on the equipment, leaving the pulp on the mold to form, and the white water is absorbed and driven back into the pool by the vacuum pump.
(2) After the mold is adsorbed, the transfer mold passes the positive pressure out of the air compressor, and the molded product is blown from the forming mold to the transfer mold, and then sent out by the transfer mold.
Equipment used: molding machine, mold, vacuum pump, negative pressure tank, water pump, air compressor, mold cleaning machine.
3. Drying system
(1) Natural drying method: The product is dried directly by weather and natural wind.
(2) Traditional drying: brick tunnel kiln, the heat source can be natural gas, diesel, coal, dry wood, liquefied petroleum gas and other heat sources.
(3) New-type multi-layer drying line: The 6-layer metal drying line can save more than 30% energy than transmission drying. The main heat source is natural gas, diesel, liquefied petroleum gas, methanol and other clean energy sources.
4. Auxiliary packaging of finished products
(1) Automatic stacking machine
(2) Packing machine
(3)Transfer conveyor
Process of egg tray machine
After-Sales Service
* Training how to instal the machine, training how to use the machine smoothly.
* Engineers available to service machinery overseas.
