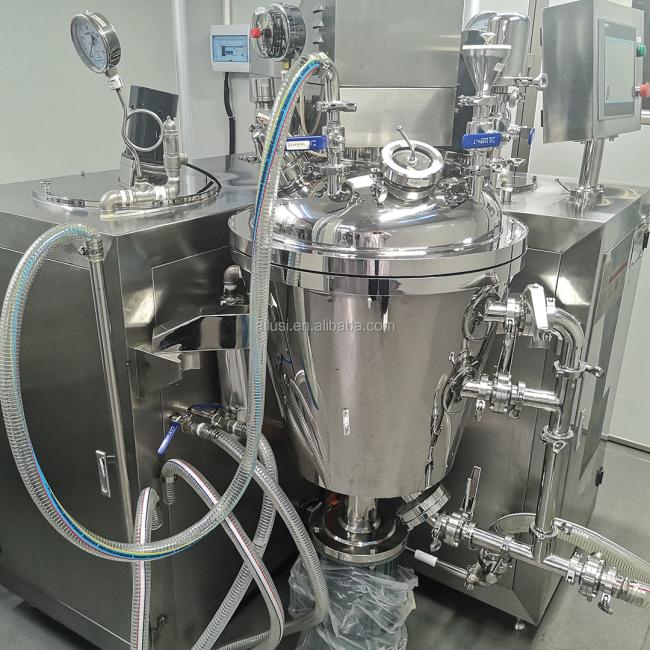

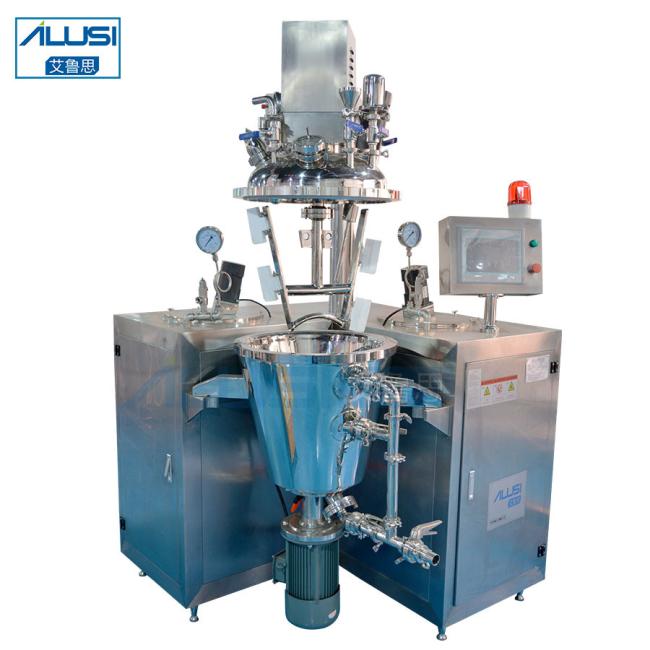

500L Stainless Steel Tank Emulsifier Mixing Machine Cosmetic Production Boiler Toothpaste Cream Mixer Machine
500L Stainless steel tank steel cosmetic production boiler emulsifier mixing tank toothpaste cream mixer machine
manufacturing plant cosmetics production equipment production line homogenizer mixer Toothpaste cream emulsifier
2,The homogenizing structure is made through German techology. The machine adopts the improted double-end mechanical seal effect.The maximum emulsifying rotation speed can reach 3500rpm and the high shearing fineness can reach 0.2-5um.
3,The vacuum defoaming can make the materials meet the requirement of being aseptic . The vacuum materials vacuum sucking can avoid dust.
4,The main boiler lid can adopt lifting system, it is easy to clean and the cleaning effect is more obvious, the main boiler can adopt tilting discharge.
5,The boiler body is welded with 3 layer imported SS plate, tank body and pipes adopts mirror polish whcih meet the GMP standard.
6,According to process requirement, the tank body can heating and cooling the electric heating.

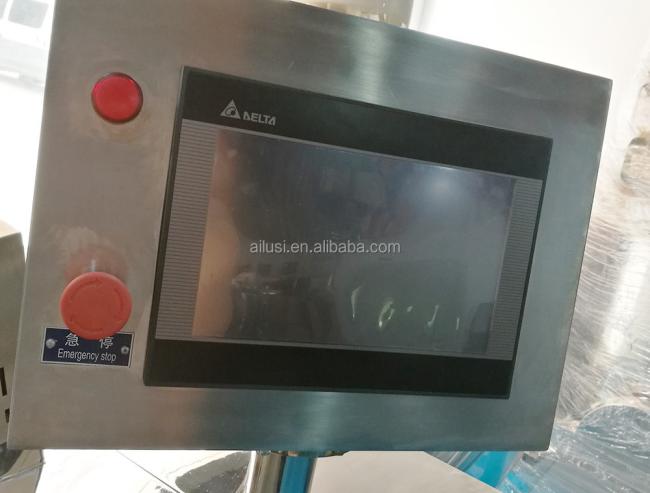

7,To ensure the stability of whole machine, the machine adopt the imported electric appliances which can meet the international standards.
-
Item NO.:AVE
-
Lead Time:35 days
-
Product Orgin:China
-
Shipping Port:Yangzhou/Guangzhou
-
Payment:EXW, FOB, CIF etc
-
Product Detail
Vacuum Emulsifier Homogenizer Description:
Emulsfying Homogenizing means when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between the stator and rotor by strong energy of motion produced by the machine effect.
By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence for over 199 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.
The product of vacuum emulsifying mixer machine mainly applied in such industries as daily chemical care products, biopharmaceutical industry, food industry, paint and ink, nanometer materials, petrochemical industry, printing and dyeing auxiliaries, pulp & paper, pesticide, fertilizer, plastic & rubber, electronic and electronics, fine chemical industry, etc.
The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
| capacity (L) | Agitator power (kW) | Speed (rpm) | Homogenizer power (kW) | Speed (rpm) | Oil/Water tank (L) | Agitator power (kW) | Speed (rpm) | Hydraulic (KW) |
| 50 | 1.5 | 0~75 | 2 | 0~3600 | 20/45 | 0.37/0.37 | 0~1440 | 0.75kw |
| 100 | 2.2 | 0~75 | 3 | 0~3600 | 40/90 | 0.55/0.55 | 0~1440 | 0.75kw |
| 200 | 3 | 0~75 | 5.5 | 0~3600 | 80/180 | 0.75/0.75 | 0~1440 | 1.1kw |
| 300 | 4 | 0~75 | 5.5 | 0~3600 | 120/270 | 1.1/1.1 | 0~1440 | 1.5kw |
| 500 | 4 | 0~75 | 7.5 | 0~3600 | 200/450 | 1.5/1.5 | 0~1440 | 1.5kw |
| 1000 | 5.5 | 0~75 | 11 | 0~3600 | 400/900 | 2.2/2.2 | 0~1440 | 2.2kw |
| 2000 | 7.5 | 0~75 | 15 | 0~3600 | 800/1800 | 2.2/2.2 | 0~1440 | - |
| 3000 | 11 | 0~75 | 18.5 | 0~3600 | 1200/2700 | 3/3 | 0~1440 | - |
Factory:
