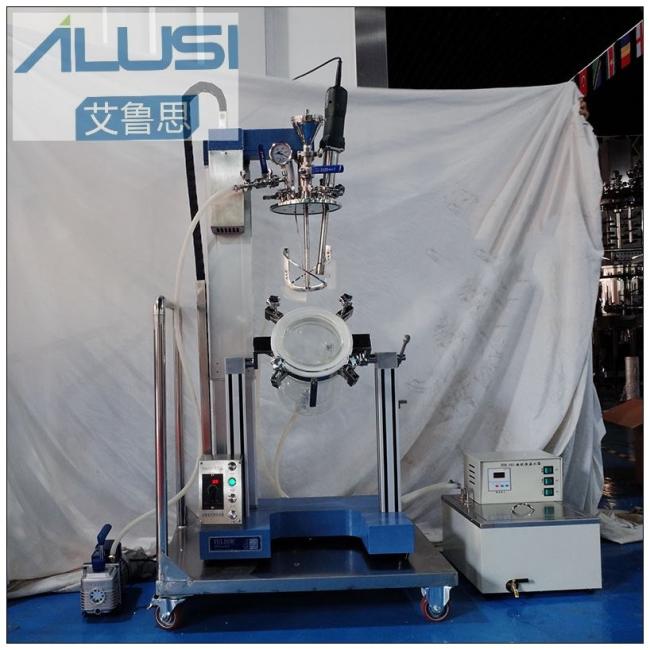

2L 5L 10L Vacuum Emulsifier High Shear Equipment Mixer Reactor Glass Kettle Lab Homogenizer
This machine is an instrument developed by our engineers with latest German technologies, designed in modular structure, applies to blending, mixing, emulsifying, dispersing and homogenizing mobile liquids. This homogenizer can be widely applied in cosmetic cream, oil-water emulsion, polyreaction and nanophase material dispersion as well as special occasions requiring vacuum or pressure test.
This equipment has the advantages of simple structure, small size, low noise, smooth operation, long service life, easy operation, easy cleaning, assembly and disassembly and maintenance.
-
Item NO.:ALS-10 Liter
-
Lead Time:15 DAYS
-
Shipping Port:Yangzhou/Guangzhou
-
Payment:EXW, FOB, CIF, DDP, DDU etc.
-
MOQ:1
Product Parameters:
-
Product Detail
-
![]()
Features of the vacuum reactor:
2. Germany imported high-speed motor, long-life, stable operation.
3. The whole structure of the design is reasonable, made of excellent materials
4. Stepless speed regulation, the maximum speed up to 30000rpm, the shear velocity can reach 27m / s.
5. Meet your different work environment (confined, open, atmospheric pressure, vacuum)
6. Overload protection and double protection insulation make sure for your security.
7. The cutting working head is made of stainless steel, which meets the GMP hygienic standard and can be used repeatedly.
* Double Jacket: Heating can through water or heating oil, meet the needs of different production processes
* Homogenizer from Germany imported motor, continuously viable.8000-30000 rpm
Double layers: heating through water or oil.
Glass reactor: We can see the whole processing of mixing, homogenizing, emulsifying of materials
Whole bracket adopts SUS304, the contact material parts adopt SUS316L with GMP standrand
Advantage:
- Homogenizing turbine (speed up to 3.000 rpm)

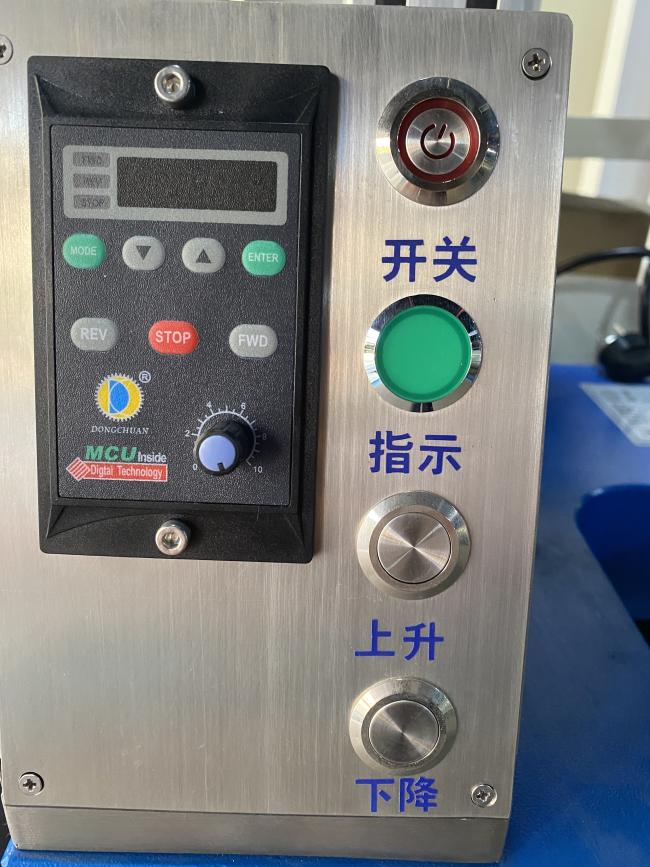

- Control Panel T&S color kind to show all the main machine.
- Mechanical lifting of the cover
- Mechanical vessel tilting to facilitate the finished product discharge
- Essences little hopper
- Central bottom valves to suck undervacuum raw material or discharge the finished product.
- Inspection window with light to check the mixing phases.
- Different optionals available to satisfy the different customer needs such as:
- Check weighters
- cleaning system by spray balls
- printing of production data
- heating by steam
The equipment is mainly used in daily chemical care products, biomedicine, food industry, coating ink, nano materials, petrochemical industry, printing and dyeing auxiliaries, paper industry, pesticide and chemical fertilizer, plastic rubber, power electronics, other fine chemicals, etc., especially for material emulsification configuration with high matrix viscosity and solid content.
Factory:
Package & Delivery:
To ensure the quality of our service, we will follow the standard package upon delivery:
1. All products before delivery should be tested by assembly and commissioning engineers. Our salesman need to send the tested video to the customer to ensure working well of the machines. Precision parts need to be packed in film or carton.
2. All products are packed in wooden boxes. Firmly fix the edge of the foot of the equipment to adapt the machine to the requirements of loading and unloading.
Our Servers:
Ailusi provide Turn-key Project Service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
