Cosmetic Hair Conditioner Hair Dye Tube Filling Machine Body Lotion Plastic Tubes Manual Filling Sealing Machine

Price Negotiable
Price: 4600-13000USD
MOQ: 1
Delivery Time: 35
Brand: AILUSI
Product Description

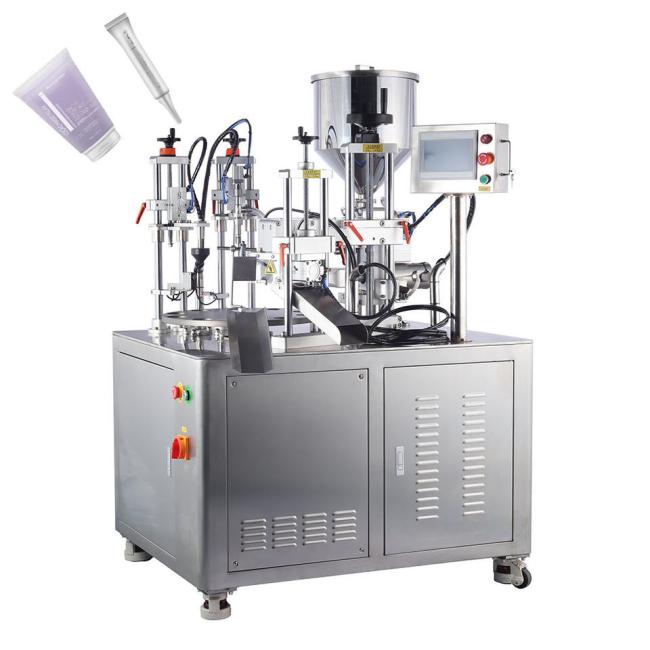

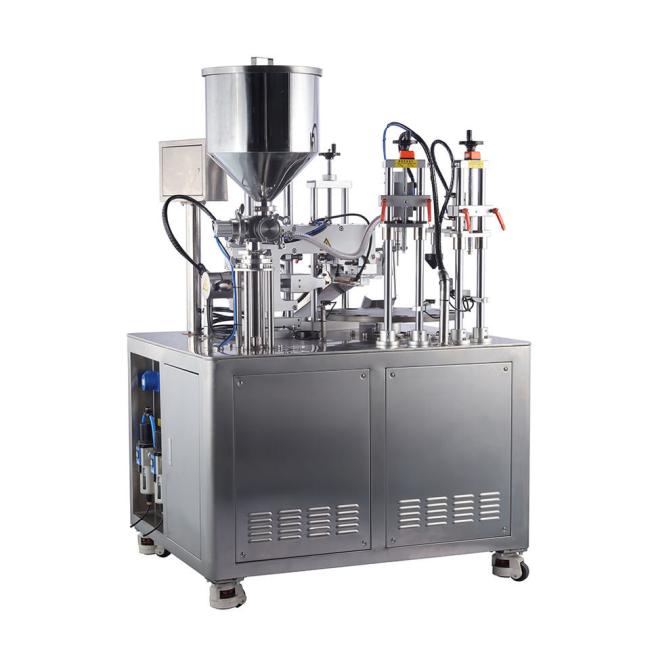

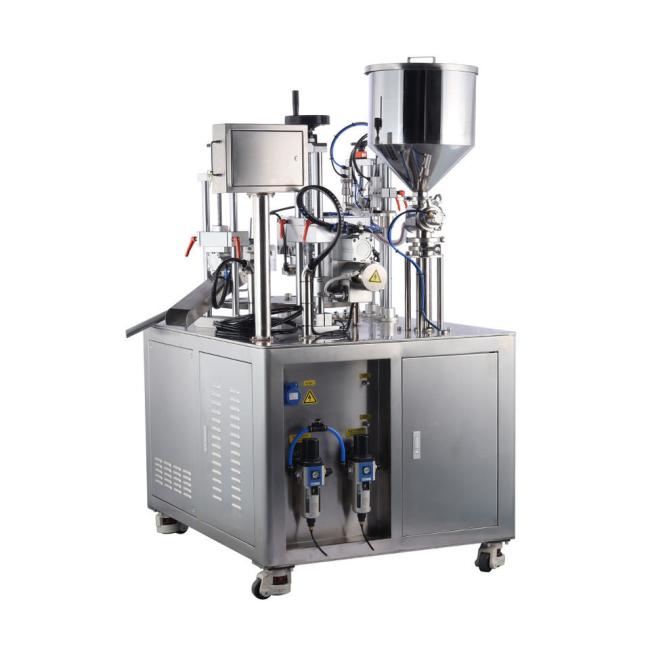

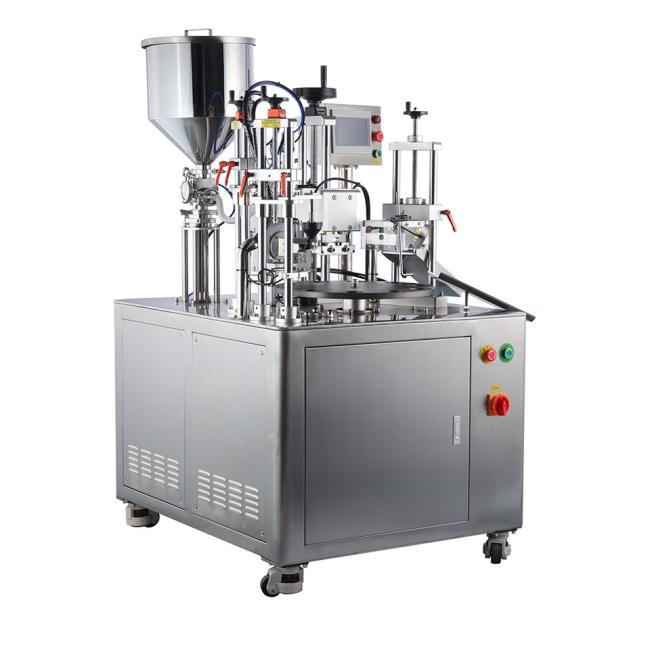

Plastic Tube Filling Sealing Machine:

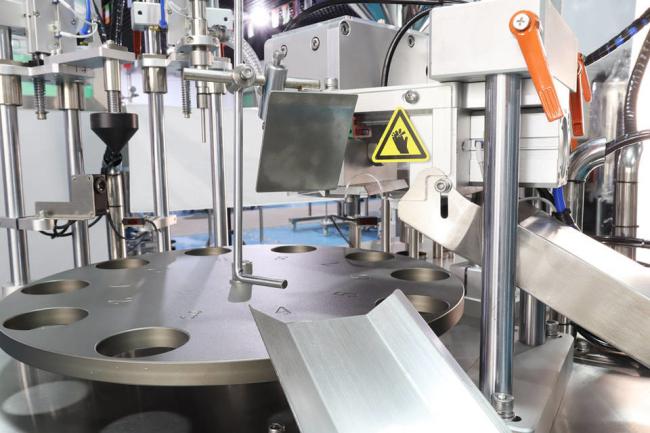

Semi-Automatic Tube Filling And Sealing machine for filling plastic tubes and ultrasonic sealing edges with creams and ointments. It is supplemented by the orientation function of the position of the type according to the label printed on the tube/ The embossed expiration system and lot number are applied. There is also a mechanism for trimming the edge of the tube. Used in the manufacture of cosmetics. medicines, food. Customer must provide tube sizes. The manufacturer makes plastic molds to the size of the customer's tubes. The design is a rotating table with 10 holes, a plastic glass for the diameter of the tube is installed in each hole.

The operator performs only one function---installs empty tubes in glasses. Filling the tube, orienting according to the photo mark, sealing the edges and ejecting the finished tube is done automatically. Simple and intuitive dosage settings. If necessary, you can order sets of molds for all tube sizes of interest. The tube edge is clamped by a pneumatic drive. The height of the lips is adjusted to the height of the tube.

  • Item NO.:AFS

  • Lead Time:30 DAYS

  • Product Orgin:China

  • Shipping Port:Guangzhou Port

  • Payment:EXW, C&F, CIF and etc.

  • Price:$4000-12000/Set

  • MOQ:1

  • Product Detail

Function
Tube filling and sealing
Material
316L stainless steel & 304 stainless steel
Tube diameter
φ15-φ60
Tube length
50-250(customizable)
Filling volume
5-400ml/pcs(adjustable)
Product capacity
60-1800 pcs/h(adjustable)
Working Position
10 Holes. One size one mold.
Features:

According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.

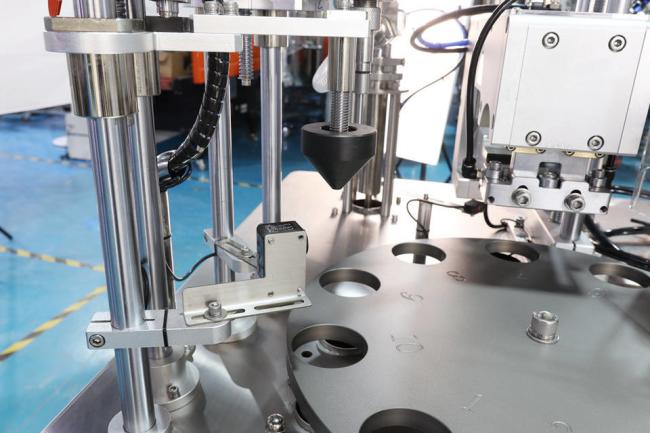

The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.

Photo-electronic, electric, pneumatic integrative control is applied with the machine. Automatic positioning, No tube, no filling. Date printing, Hot air sealing, Mechanical structure.

Can do customized with Double jacket instant heater with inside air heating, it won't damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.

Ultrasonic tube filler is suitable for Plastic, LDPE, HDPE etc.

All contact parts are high quality 316L stainless steel to meet GMP standard. Double Jacketed Temperature Control Hopper and Agitator are available as options.



* Because the product is updated quickly, please ask us the type of machine before placing an order









Factory:

Package & Delivery:

To ensure the quality of our service, we will follow the standard package upon delivery:

1. All products before delivery should be tested by assembly and commissioning engineers. Our salesman need to send the tested video to the customer to ensure working well of the machines. Precision parts need to be packed in film or carton.

2. All products are packed in wooden boxes. Firmly fix the edge of the foot of the equipment to adapt the machine to the requirements of loading and uploading.

Our Servers:

Ailusi provide Turn-key Project Service to customer.

1. Factory Layout design;

2. Factory Decoration based on GMP standard;

3. Formula of products;

4. Raw material etc;

5. Machine design, whole production line from A to Z;

6. Shipping service, FOB, CFR, CIF etc;

7. Installation service. Training service, Maintenance service.
