Liquid Detergent Hand Sanitizer Homogenizer Emulsifier Mixer 1000L Stainless Steel Homogeneous Machine
Liquid Mixer Tank

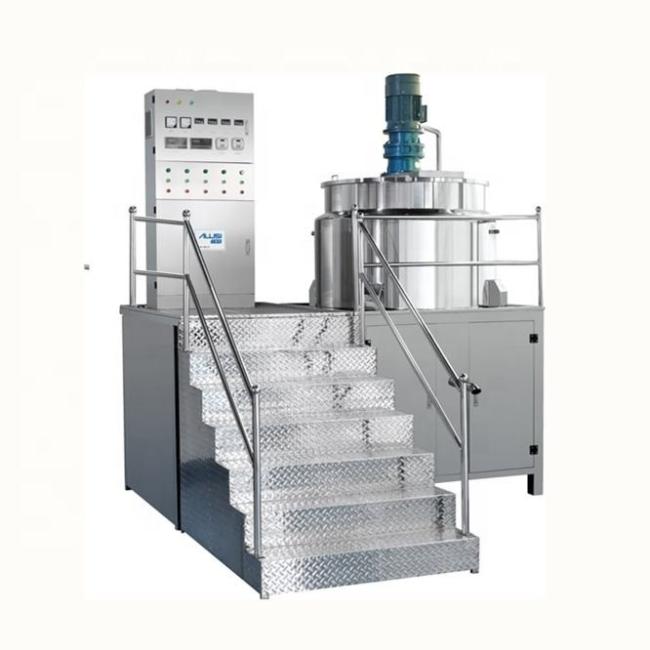

1) Stainless Steel Mixing Tank has mixing agitator,bottom homogenizer,motor,electric control box,operation platform,staircase,etc.

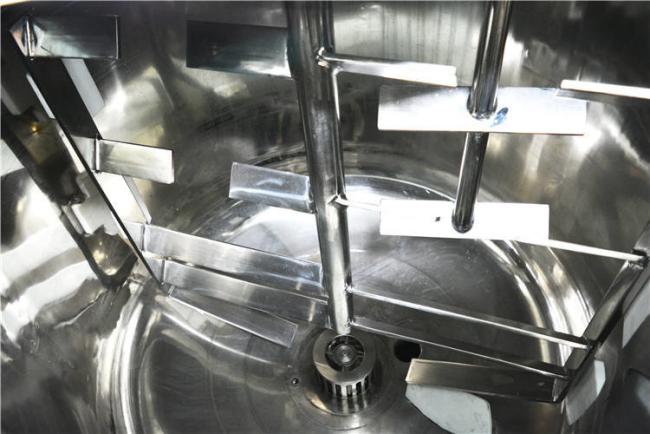

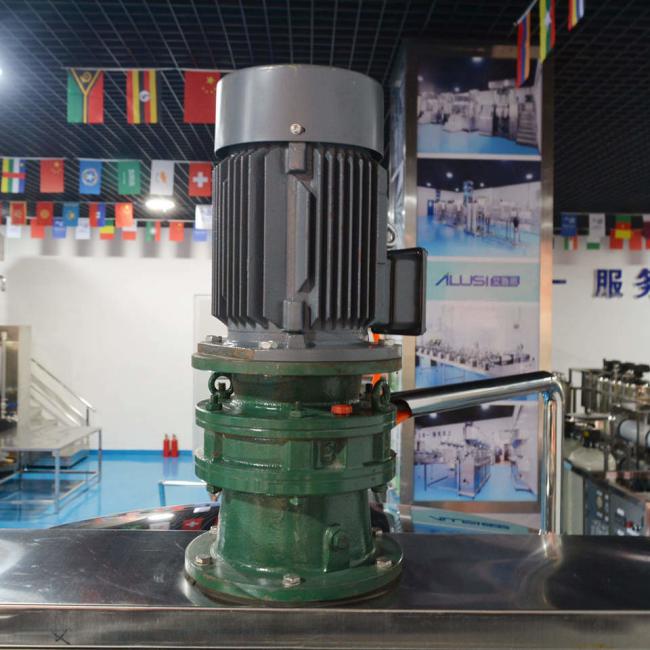

2) The scraper type agitator mixing adopts the frequency converter for speed adjustment , so that high quality products of
different processes according to customer requirements.

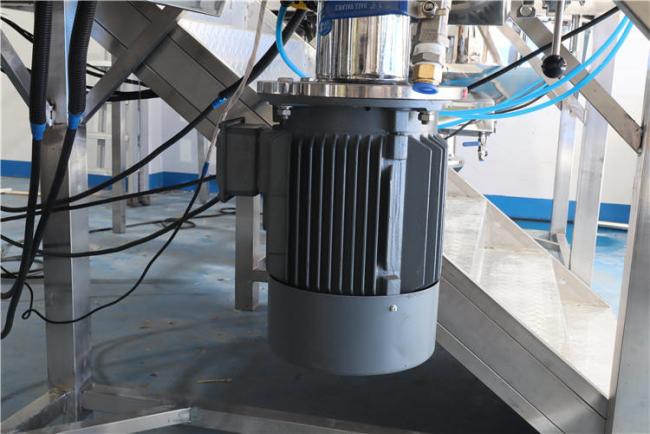

3) The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and can rapidly dissolve
4) The tank body is welded by three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing or matte finish , which fully conforms to GMP requirements.
5) According to customer requirement. Easy to discharge , bottom direct discharge or by transfer pump.

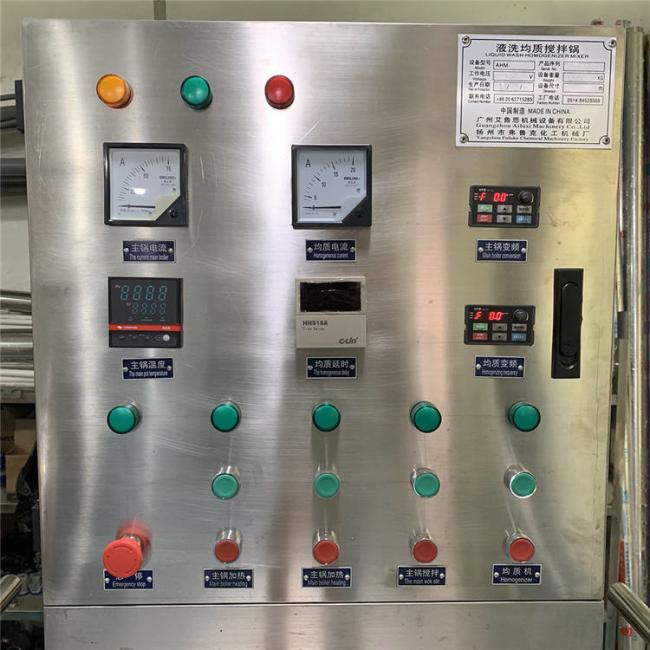

6) We can choose PLC automatic control system ,or manual button control box,it depends upon your demand.
-
Item NO.:ALW-1000L
-
Lead Time:30-40 Days
-
Product Orgin:China
-
Shipping Port:Guangzhou/Jiangsu Port
-
Payment:EXW, C&F, CIF and etc.
-
MOQ:1
-
Weight:600 Kg
-
homogeneous emulsifying tank,it's widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used as blending tank, buffer tank, melting tank, high shear mixing tank and emulsifying tank, which cleanable to sanitary standards .
Product Features:
1) Material: SUS304/ SUS 316L
2) Layer: Single layer/ double layers/ three layers
3) Power: 0.55~55KW
4) Capacity: 50L~50,000L
5) Voltage: 110V~600V,50,60hz,can be customized
6) Heating Type: electric/ steam heating
7) Polish: mirror polish inside and outside

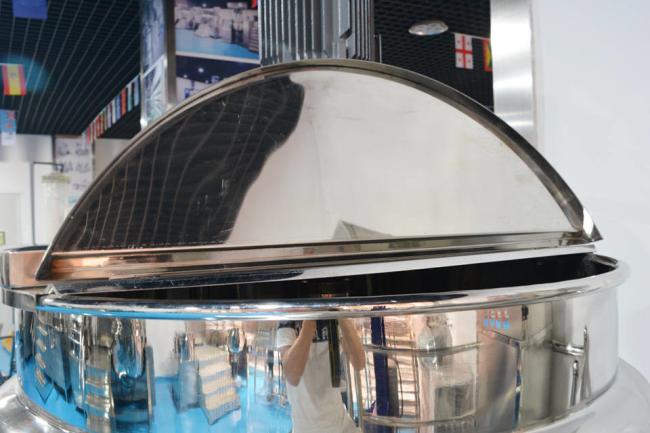

8) Top: flate top with lid / closed cover
|
Item
|
Working Capacity
|
Mixing Power
(KW)
|
Mixing Speed
(rpm)
|
Homogenizing Power(KW)
|
Homogenizing Power(KW)
|
Heating Method
|
|
AHM-50
|
50L
|
0.75
|
0-75
|
1.5
|
0~3600
|
Electric Heating
|
|
AHM-100
|
100L
|
1.1
|
0-75
|
2.2
|
0~3600
|
Electric Heating
|
|
AHM-200
|
200L
|
2.2
|
0-75
|
3
|
0~3600
|
Electric Heating
|
|
AHM-300
|
300L
|
2.2
|
0-75
|
3
|
0~3600
|
Electric Heating
|
|
AHM-500
|
500L
|
5.5
|
0-75
|
7.5
|
0~3600
|
Electric Heating
|
|
AHM-1000
|
1000L
|
7.5
|
0-75
|
11
|
0~3600
|
Electric Heating/
Steam Heating
|
|
AHM-2000
|
2000L
|
7.5
|
0-75
|
18
|
0~3600
|
|
|
AHM-3000
|
3000L
|
15
|
0-75
|
22
|
0~3600
|
|
|
AHM-5000
|
5000L
|
22
|
0-75
|
33
|
0~3600
|
Our Servers:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, Maintenance service.
