Titanium Knitted Mesh 0.08mm To 0.50mm Diameter Wire Good Thermal Property
Titanium Knitted Mesh 0.08mm To 0.50mm Diameter Wire
Knitted Wire Mesh Introduction
knitted wire mesh, also called liquid-Gas filter net, foam-breaking net, packing net, gas-liquid net, foam-catching net, woven wire mesh, braided wire mesh, shielding wire mesh.
It is a kind of wire mesh woven in a special form. The wire used for weaving is generally φ0.08~φ0.50mm round wire or pressed flat wire. The form can also be braided with metal filaments and fiber filaments.
Materials:
Main materials of knitted wire mesh: stainless steel wire 201, 304, 304L, 321, 316, 316L, 904L, pure nickel wire, pure titanium wire, Monel, PP, PC, PE, PVC, PTFE.
Specifications:

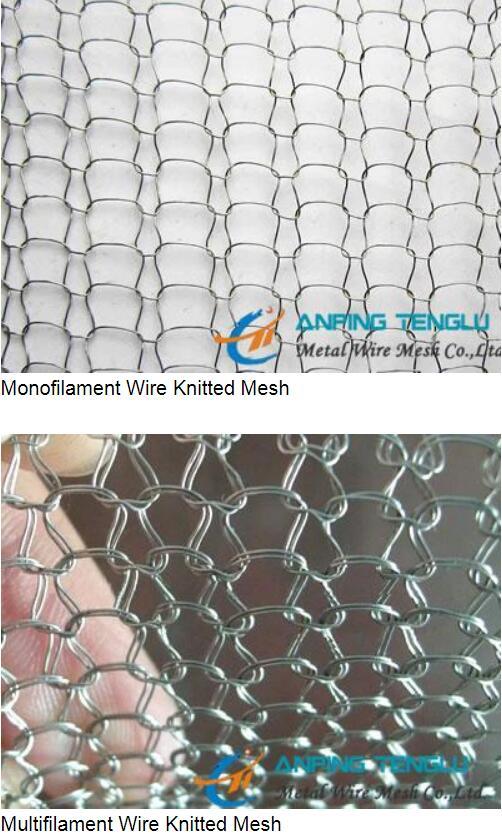

Wire diameter: 0.07mm-0.55mm (the commonly used wire diameter is: 0.20mm-0.25mm) In addition, there are many strands of wires woven together.
Hole size: from (2×3mm) to (4×5mm) to (12×6mm) In addition, the hole size can be fine-tuned according to customer requirements. The opening form is the cross arrangement of large holes and small holes (the size of the holes in the length direction is the same, and the width is different)
The surface condition of the knitted mesh: flat mesh surface and corrugated mesh surface pressed into corrugations (the width and depth of the corrugation have different specifications)
Width of knitted mesh: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, etc.
|
Common Specifications of Knitted Wire Mesh |
||||
|
Wire Diameter (mm) |
Opening Size (mm) |
Width (mm) |
Length (m) |
Number of Wires (Nos.) |
|
0.10 |
1.0-3.0 |
3-50 |
10-200 |
1-3 |
|
0.11 |
1.0-3.0 |
3-80 |
10-200 |
1-3 |
|
0.12 |
1.0-3.0 |
3-80 |
10-100 |
1-3 |
|
0.15 |
1.0-3.0 |
9-120 |
10-100 |
1-3 |
|
0.17 |
1.0-3.0 |
9-120 |
10-50 |
1-2 |
|
0.19 |
1.0-3.0 |
15-120 |
10-50 |
1-2 |
|
0.21 |
3.0-7.0 |
15-120 |
10-50 |
1-2 |
|
0.23 |
3.0-7.0 |
40-1000 |
10-50 |
1-2 |
|
0.25 |
3.0-7.0 |
40-1000 |
10-50 |
1-2 |
|
0.27 |
3.0-7.0 |
60-1000 |
10-50 |
1 |
|
0.28 |
3.0-7.0 |
60-1000 |
10-50 |
1 |
|
0.30 |
3.0-7.0 |
60-1000 |
10-50 |
1 |
Features:
Low density and high tensile strength.
Excellent Corrosion resistance.
High temperature resistance.
Outstanding filtration performance.
Good thermal property.
Acid and alkali resistance.
Nontoxic.
Applications:
Used in the chemical industry to Make wire mesh demisters, catalysts and the elimination or capture of mist droplets and liquid foam entrained in the gas during distillation, evaporation, absorption and other processes;
Oil and gas separation, oil-water separation, gas-liquid separation, shock absorption and noise reduction, sealing elements, etc. in the manufacturing process of mechanical equipment;
Dust removal, water removal, fog removal, air purification, flue gas desulfurization, water treatment equipment, oil-water separators in the field of environmental protection; separation and filtration devices in various occasions;
Filters for cars and tractors;
Sealing, damping (shock), noise reduction and exhaust purification components in automotive components;
Electromagnetic interference shielding devices for electronic and electrical products are widely used.
Pest control
Packing:
Our factory Photos:
