Woven 1.8mm Nickel 200 Wire Mesh In Fiber Chemical Electrical Industry
Nickel 200 Wire Mesh With Excellent Mechanical Properties Used In Fiber Chemical Electrical Industry

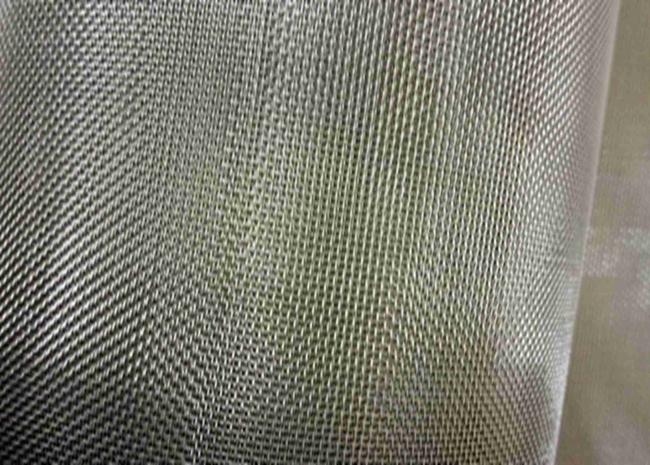

Nickel Woven Wire Mesh Introduction:
Nickel 200 wire mesh has excellent mechanical properties and ductility with high purity nickel. It resists to high temperature and corrosion and has good electrical and thermal conductivity, magnetostrictive properties. Nickel wire mesh can be used for filter or element of heating, food processing and salt refining equipment. It also provides service in mining, marine, electrical, chemical industries.
Material:
Pure Nickel Series: Nickel 200 (EN 2.4060), Nickel 201 (EN 2.4061), Nickel 270 (EN 2.4050)
Nickel Alloy Series: Cr20Ni80 (EN 2.4869)
| Table 1: Nickel 200 Wire Mesh Chemical Composition (%) | ||||||
| Ni | Fe ≤ | C ≤ | Mn ≤ | Si ≤ | Cu ≤ | S ≤ |
| balance | 0.4 | 0.15 | 0.35 | 0.35 | 0.25 | 0.01 |
Nickel 200 and 201 are considered as commercially pure. With 99.6% grade, the low carbon content of 201 prevents the metal alloy from becoming brittle when exposed to temperatures 600F and above. The Nickel 270 is considered as high purity grade metal alloy, produced through powder metallurgy.
Features:
Excellent acid, alkali, chemicals corrosion resistance;
Superior thermal and electrical conductivity, magnetostrictive properties;
Abrasion and high temperature resistance;
Good ductility and strength.
Applications:
Service as filter in chemical, mining, food, petroleum, machine industries;
Used for conductive or heating elements;
Play an important role in electrical, machine, salt refining, marine development, etc.
Specifications:
| Specifications of Nickel 200 Wire Mesh | |||
| Mesh | Wire Diameter | Opening | |
| mm | inch | (mm) | |
| 2 mesh | 1.8 | 0.071 | 10.9 |
| 3 mesh | 1.6 | 0.063 | 6.866 |
| 4 mesh | 1.2 | 0.047 | 5.15 |
| 5 mesh | 0.91 | 0.036 | 4.17 |
| 6 mesh | 0.711 | 0.028 | 3.522 |
| 8 mesh | 0.61 | 0.024 | 2.565 |
| 10 mesh | 0.508 | 0.02 | 2.032 |
| 12 mesh | 0.457 | 0.018 | 1.66 |
| 14 mesh | 0.417 | 0.016 | 1.397 |
| 16 mesh | 0.345 | 0.014 | 1.243 |
| 18 mesh | 0.315 | 0.012 | 1.096 |
| 20 mesh | 0.315 | 0.0124 | 0.955 |
| 22 mesh | 0.315 | 0.0124 | 0.84 |
| 24 mesh | 0.315 | 0.0124 | 0.743 |
| 26 mesh | 0.295 | 0.0116 | 0.682 |
| 28 mesh | 0.295 | 0.0116 | 0.612 |
| 30 mesh | 0.274 | 0.011 | 0.573 |
| 32 mesh | 0.254 | 0.01 | 0.54 |
| 34 mesh | 0.234 | 0.0092 | 0.513 |
| 36 mesh | 0.234 | 0.0092 | 0.472 |
| 38 mesh | 0.213 | 0.0084 | 0.455 |
| 40 mesh | 0.193 | 0.0076 | 0.442 |
| 42 mesh | 0.193 | 0.0076 | 0.412 |
| 44 mesh | 0.173 | 0.0068 | 0.404 |
| 46 mesh | 0.173 | 0.0068 | 0.379 |
| 48 mesh | 0.173 | 0.0068 | 0.356 |
| 50 mesh | 0.173 | 0.0068 | 0.335 |
| 60 mesh | 0.173 | 0.0068 | 0.25 |
| 70 mesh | 0.132 | 0.0052 | 0.231 |
| 80 mesh | 0.122 | 0.0048 | 0.196 |
| 90 mesh | 0.112 | 0.0044 | 0.17 |
| 100 mesh | 0.012 | 0.004 | 0.152 |
| 120 mesh | 0.081 | 0.0032 | 0.131 |
| 140 mesh | 0.061 | 0.0024 | 0.12 |
| 150 mesh | 0.061 | 0.0024 | 0.108 |
| 160 mesh | 0.061 | 0.0024 | 0.098 |
| 180 mesh | 0.051 | 0.002 | 0.09 |
| 200 mesh | 0.051 | 0.002 | 0.076 |
| 220 mesh | 0.051 | 0.002 | 0.065 |
| 250 mesh | 0.041 | 0.0016 | 0.061 |
| 280 mesh | 0.035 | 0.0014 | 0.056 |
| 300 mesh | 0.031 | 0.0012 | 0.054 |
| 320 mesh | 0.031 | 0.0012 | 0.046 |
| 330 mesh | 0.031 | 0.0012 | 0.042 |
| 350 mesh | 0.031 | 0.0012 | 0.039 |
| 360 mesh | 0.025 | 0.00098 | 0.0385 |
| 400 mesh | 0.025 | 0.00098 | 0.0385 |
Other specifications according to your request.
