Stainless Steel 304 Extruder Screen Disc High Temperature Resistance Corrosion Resistance
Stainless Steel 304 Extruder Screen Disc High Temperature Resistance And Corrosion Resistance
Introduction

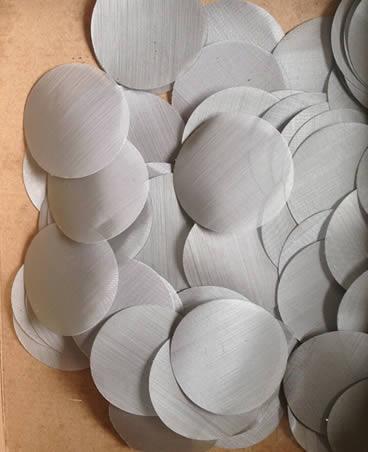

Extruder screen disc can be made of various materials like stainless steel wire cloth, brass wire cloth, nickel cloth and black wire cloth. The screen discs are mainly used for extremely thin and fine extrusion process in industrial production. It can be made of various types and sizes. Single layer discs and spot weld multi layer packs are available.
Features:
Various forms and sizes.
High temperature resistance and corrosion resistance.
Withstand harsh work conditions.
Accurate filtration rating.
Long lasting life.
Applications:
Extruder screen disc is mainly used as the filter in petroleum, chemical, medicine, metallurgy, machinery, ship and automobiles to separate impurity or liquid foam. Besides, it also can be used for the production of rubber and plastic extrusion.
Specificationis:
Material: stainless steel ansi304, ansi316, mild steel, stainless steel, brass, galvanized, aluminum alloy.
Weave types: plain weave, twilled weave, dutch weave.
Layer: single layer or multi-layer.
Shape: round, square, oval, kidney shape, and other special shapes.
Disc Diameter: 20mm - 600mm.
Multilayer discs by either spot welded or bound.
| Mesh | Wire Dia. mm | Aperture Size | Open Area % |
| 10 × 10 | 0.711 | 1.829 mm | 51.8 |
| 14 × 14 | 0.457 | 1.357 mm | 55.9 |
| 16 × 16 | 0.457 | 1.131 mm | 50.7 |
| 20 × 20 | 0.559 | 0.711 mm | 31.4 |
| 20 × 20 | 0.457 | 0.813 mm | 41 |
| 24 × 24 | 0.376 | 0.682 mm | 41.4 |
| 30 × 30 | 0.376 | 0.531 mm | 34.2 |
| 30 × 30 | 0.31 | 0.536 mm | 40 |
| 40 × 40 | 0.274 | 0.361 mm | 32.3 |
| 50 × 50 | 0.193 | 0.335 mm | 43.6 |
| 60 × 60 | 0.193 | 0.230 mm | 29.8 |
| 80 × 80 | 0.122 | 0.196 mm | 37.9 |
| 100 × 100 | 0.102 | 0.152 mm | 36 |
| 120 × 120 | 0.091 | 0.120 mm | 31.8 |
| 150 × 150 | 0.071 | 0.088 mm | 29.6 |
| 200 × 200 | 0.05 | 0.077 mm | 36.76 |
| 250 × 250 | 0.04 | 0.062 mm | 36.76 |
| 300 × 300 | 0.04 | 0.045mm | 27.83 |
| 325 × 325 | 0.035 | 0.043mm | 30.49 |
| 400 × 400 | 0.028 | 0.036mm | 31.25 |
| 500 × 500 | 0.025 | 0.026mm | 25.79 |
Hot specifications:
10-12 micron screen
Dutch weave screen of mesh size: 20 × 60 × 100 size.
Screen mesh, 120 × 120 mesh
extruder screens:
Plain steel, diam. 220mm, 30 mesh (wire 0.30mm).
Plain steel, diam. 170mm, 30 mesh (wire 0.30mm).
Plain steel, diam. 170mm, 40 mesh (wire 0.25mm).
Packing:
Questions: What specs are needed to quote?
Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
