Introduction

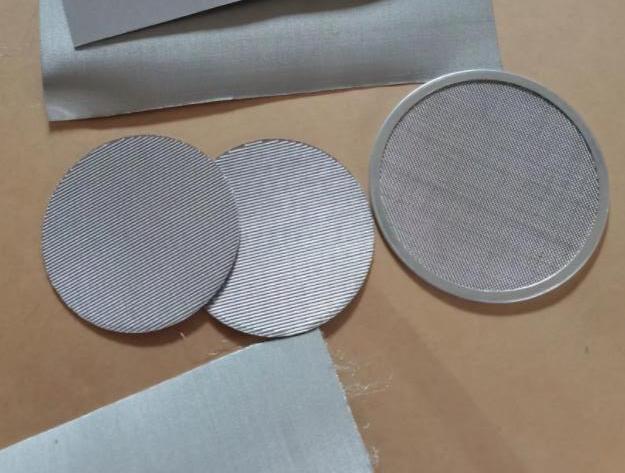

Stainless steel fine mesh extruder screens are made from fine wire cloth that has high filtration precision. And it can be round, ring, oval or other shapes with or without frame edges.
As the key component of extruder, fine stainless steel extruder screen can keep impurities out from rubber, viscous or other liquid materials. And it also can be used in chemical and pharmaceutical industries.
Features:
High filtration precision and precise size.
Excellent resistance to rust, acid, alkali and abrasion.
Various shapes can be applied to different machines.
Applications:
Melt such as plastic, rubber, chemical fiber, hot melt adhesive, coating materials.
In chemical, medicine, food industries.
Specificationis:
Materials: 304, 302, 304L, 316 stainless steel wire.
Mesh count: 50–650 mesh, or finer mesh can be customized.
Thickness: 0.08–5 mm.
Shapes: round, ring, oval, tube, etc.
Processing methods: plain weave, twill weave, plain dutch weave, twill dutch weave.
Packing: wrapped with moisture-proof paper or plastic film and then put into cartons or pallets.
| Mesh/Inch | Wire Diameter (mm) | Aperture (mm) | Open Area (%) | Weight (kg/m2) |
| 200 × 200 | 0.05 | 0.077 | 60.6 | 0.24 |
| 200 × 200 | 0.06 | 0.067 | 52.7 | 0.35 |
| 250 × 250 | 0.03 | 0.072 | 49.8 | 0.11 |
| 250 × 250 | 0.04 | 0.062 | 36.9 | 0.2 |
| 270 × 270 | 0.035 | 0.059 | 60 | 0.16 |
| 270 × 270 | 0.04 | 0.054 | 57.4 | 0.21 |
| 300 × 300 | 0.03 | 0.055 | 57 | 0.13 |
| 325 × 325 | 0.035 | 0.0432 | 55.3 | 0.2 |
| 400 × 400 | 0.03 | 0.0335 | 52.7 | 0.18 |
| 500 × 500 | 0.025 | 0.0258 | 50.7 | 0.15 |
| 635 × 635 | 0.02 | 0.02 | 55 | 0.1 |
Packing:
Questions: What specs are needed to quote?
Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
