Stainless Steel 316 Welded Wire Mesh Superior Corrosion Resistance In Marine
Stainless Steel 316 Welded Wire Mesh With Superior Corrosion Resistance Commonly Used In Marine Applications
Welded Wire Mesh Introduction
Stainless steel 316 welded wire mesh is a type of wire mesh fabricated from stainless steel grade 316 wires that are welded together at the intersections, creating a grid pattern. Stainless steel 316 is a higher-grade material compared to 304, known for its superior corrosion resistance, especially in more demanding environments with exposure to chloride solutions and saltwater. Here are some key features and common applications of stainless steel 316 welded wire mesh:
Key Features:
Superior Corrosion Resistance: Stainless steel 316 offers excellent resistance to corrosion, making the welded wire mesh highly suitable for marine environments, chemical processing plants, and areas with high chloride exposure.
High Strength and Durability: Stainless steel 316 welded wire mesh provides high tensile strength and durability, ensuring long-term performance even in harsh conditions.
Crevice and Pitting Corrosion Resistance: Stainless steel 316 is particularly resistant to crevice and pitting corrosion, making it ideal for applications where these types of corrosion are a concern.
Heat Resistance: Stainless steel 316 exhibits good heat resistance properties, allowing the welded wire mesh to maintain its structural integrity at elevated temperatures.
Hygienic Properties: Similar to 304, stainless steel 316 is non-porous, easy to clean, and resistant to bacteria growth, making it suitable for applications in the food, pharmaceutical, and medical industries.
Common Applications:
Marine Environments: Stainless steel 316 welded wire mesh is commonly used in marine applications such as boat building, dock infrastructure, seawall protection, and marine aquaculture due to its superior corrosion resistance to saltwater.
Chemical Processing: In chemical processing plants, stainless steel 316 welded wire mesh is utilized for filtration, separation, and containment applications where resistance to corrosive chemicals is crucial.
Coastal Structures: For structures located in coastal areas where exposure to saltwater and harsh weather conditions is significant, stainless steel 316 welded wire mesh is employed for fencing, barriers, and reinforcement.
Oil and Gas Industry: Stainless steel 316 welded wire mesh finds applications in the oil and gas industry for filtration systems, pipeline protection, and offshore platform structures due to its corrosion resistance and durability.
Pharmaceutical and Medical Equipment: In pharmaceutical and medical settings requiring higher corrosion resistance, stainless steel 316 welded wire mesh is used for cleanroom equipment, sterilization trays, and storage racks.
Architectural and Decorative Applications: Stainless steel 316 welded wire mesh is chosen for architectural features, decorative screens, balustrades, and artistic installations where both aesthetic appeal and corrosion resistance are essential.
Stainless steel 316 welded wire mesh is a premium material known for its exceptional corrosion resistance, strength, and durability, making it a preferred choice for demanding applications in aggressive environments. Proper selection of mesh specifications can ensure optimal performance and longevity in diverse settings.
Specifications:
| Opening Size | Wire Diameter | ||
| Inch | mm | SWG | mm |
| 1/4" × 1/4" | 6.4 mm × 6.4 mm | 22# - 24# | 0.6 mm - 0.7 mm |
| 3/8" × 3/8" | 10.6 mm × 10.6 mm | 19# - 22# | 0.7 mm - 1.0 mm |
| 1/2" × 1/2" | 12.7 mm × 12.7 mm | 16# - 23# | 0.6 mm - 1.6 mm |
| 5/8" × 5/8" | 16 mm × 16 mm | 18# - 21# | 0.8 mm - 1.2 mm |
| 3/4" × 3/4" | 19.1 mm × 19.1 mm | 16# - 21# | 0.8 mm - 1.6 mm |
| 1" × 1/2" | 25.4 mm × 12.7 mm | 16# - 20# | 0.9 mm - 1.6 mm |
| 1" × 1" | 25.4 mm × 25.4 mm | 14# - 21# | 0.8 mm - 1.2 mm |
| 1 1/2" × 1 1/2" | 38 mm × 38 mm | 14# - 19# | 1.0 mm - 2.0 mm |
| 1" × 2" | 25.4 mm × 50.8 mm | 14# - 16# | 1.6 mm - 2.0 mm |
| 2" × 2" | 50.8 mm × 50.8 mm | 12# - 16# | 1.6 mm - 2.6 mm |
| 2" × 3" | 50 mm × 75 mm | 13# - 16# | 1.6 mm - 2.3 mm |
| 3" × 3" | 75 mm × 75 mm | 12# - 16# | 1.6 mm - 2.6 mm |
| 2" × 4" | 50 mm × 100 mm | 13# - 14# | 2.0 mm - 2.3 mm |
| 4" × 4" | 100 mm × 100 mm | 13# - 14# | 2.0 mm - 2.3 mm |
| 8" × 8" | 200 mm × 200 mm | 13# - 14# | 2.0 mm - 2.3 mm |
Other sizes as your special request.

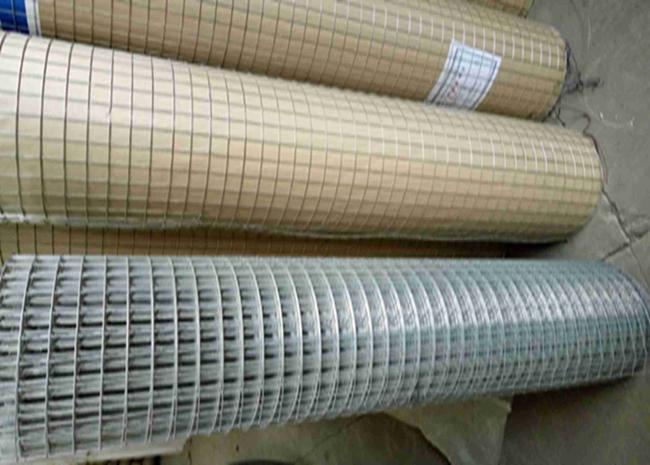

Packing: in waterproof paper in rolls. Custom packing available at request.
