Bright Surface Expanded Metal Screen Mesh Diamond Hole Shape Stainless Steel
EXPANDED METAL MESH, EXPANDED METAL SHEET
Aluminum expanded metal mesh:
Material: aluminum sheet
Aperture:5x10cm
Thickness:4.0mm
Strand width:4.0mm
Expanded metal mesh
Long way of mesh(mm):12.5-200
Short way of mesh (mm):5-80
Thickness(mm): 0.5-8
Length(mm):600-4000 width (mm):600-2000
Variety: small, medium and heavy expanded metal mesh. Expanded aluminum mesh, expanded platinum filtration mesh, expanded brass mesh, expanded copper mesh, expanded stainless steel mesh, expanded nickel mesh. Opening in the shape of diamond, hexagonal or special shape.

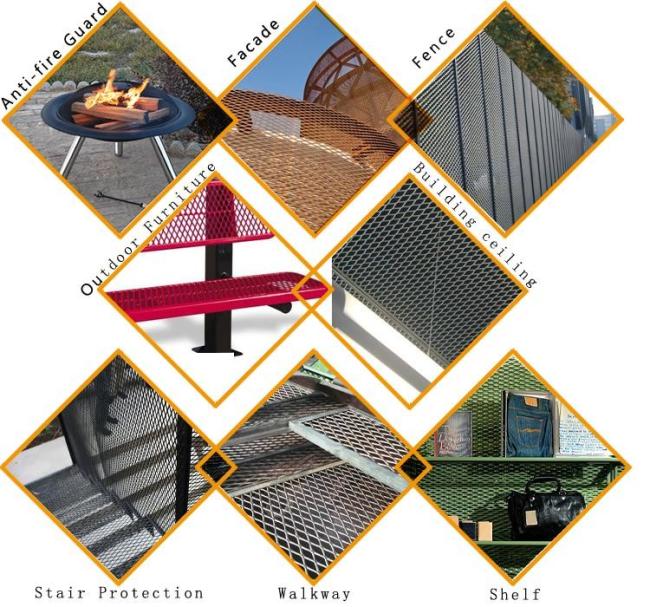

Uses: used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.
Specification:
| Sheet thickness(mm) | Opening in width(mm) | Opening in length(mm) | strand | Roll width(m) | Roll length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |

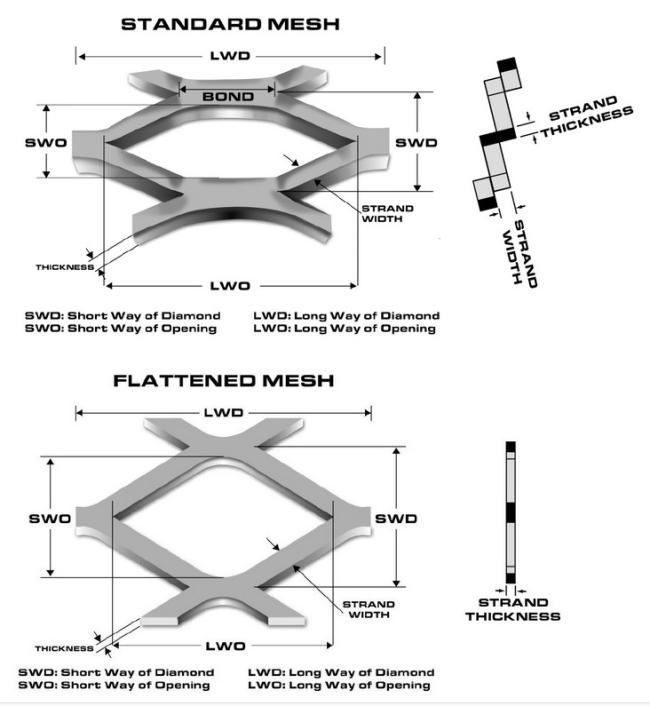

LWD: diamond shaped hole, long way of the diagonal length
SWD: diamond shaped hole, short way of the diagonal length
Strand width:Steel plate mesh diamond hole edge Terrier is making a wide wire stem length of the metal plate.
plate thickness: 0.4-8mm
Customize Design Anti-Corrosive Expanded Metal Mesh
Features:
Weight is light enough for outer wall hanging
Anti-corrosive
Rainstorm or isolation won`t hurt
Visibility and colorful
Used as decorative mesh for building outer wall ,radiator cover mesh
Easily fabricated, finished, installed and formed
Application
expanded metal used with concrete in buildings and construction, maintenance of equipment,
making of arts and crafts, covering screen for first class sound case. Also fencing for super highway,
studio,highway.
Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.It have been 15 years that we manufacture and exported wire mesh product,our main product is stainless steel woven wire mesh,we keep the good manufacture technique of wire mesh product,to client orders,we will finish it within our shortest production time while keep mesh quality.
