Decorative Aluminum Expanded Wire Metal Sheet Anti Corrosive Easy Operation
We manufacture a full range of standard and flattened expanded metal, structural grating, micro mesh and decorative patterns. Raw material can be produced in carbon, galvanized, stainless steel or high strength alloy steel. Certain alloys of copper, brass, bronze and plastics can be expanded as well.
We have filter expanded mesh, Industrial expanded metal, decorating metal mesh, mini-opening expanded mesh, security fence expanded metal sheets.
| Name | Diamond Shape Raised Expanded Metal Sheet Mesh Factory |
| Color | metal original color,it also can be progress into a unique color as per requirement. |
| Material | stainless steel 304,316, copper, silver, Aluminum,low and high carbon steel,galnized iron,copper plate,nickel plate,alloy plate and so on. |
| Style | expanded wire mesh |
| size | as per customers requirement. |
| Certificates | SGS |
| Application | expanded mesh is used in buildings and construction,maintenance of equipments, arts and crafts, window screen,irrigation works,cover screen for first class sound case.Also used as fencing for super highway,studio . |
Features:
1)Easy operation, long work life, enduring, graceful.
2) Visibility and colorful
3) Rainstorm or insolation won`t hurt
4) Aluminum won`t get rusty
5) Anti-corrosive
6) Weight is light enough for outer wall hanging
Specification:
| Sheet thickness(mm) | Opening in width(mm) | Opening in length(mm) | strand | Roll width(m) | Roll length(m) | Weight(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |

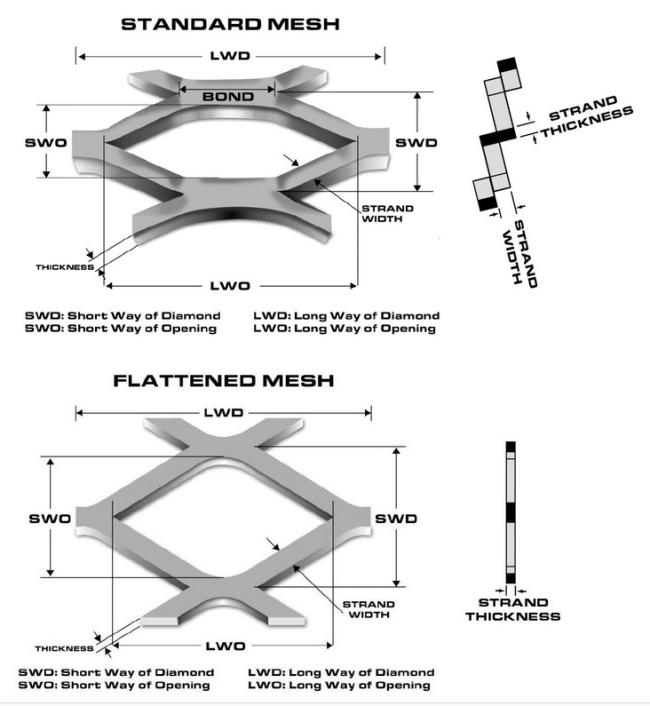

LWD: diamond shaped hole, long way of the diagonal length
SWD: diamond shaped hole, short way of the diagonal length
Strand width:Steel plate mesh diamond hole edge Terrier is making a wide wire stem length of the metal plate.
plate thickness: 0.4-8mm
Customize Design Anti-Corrosive Expanded Metal Mesh
Features:
Weight is light enough for outer wall hanging
Anti-corrosive
Rainstorm or isolation won`t hurt
Visibility and colorful
Used as decorative mesh for building outer wall ,radiator cover mesh
Easily fabricated, finished, installed and formed

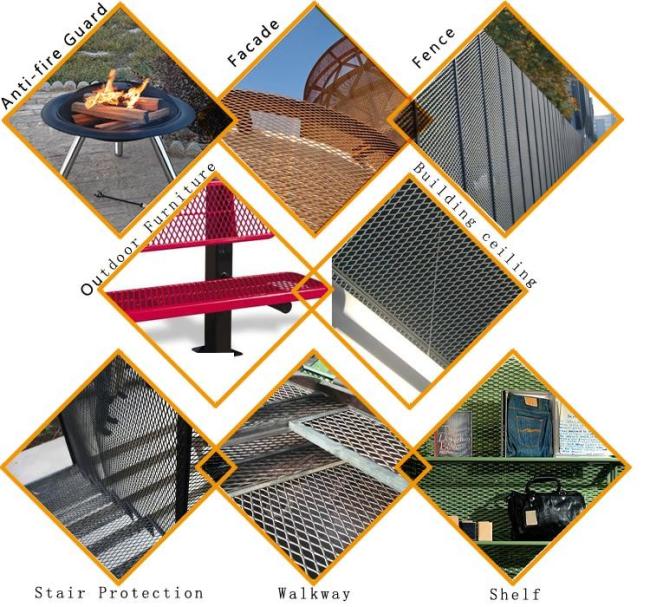

Application
expanded metal used with concrete in buildings and construction, maintenance of equipment,
making of arts and crafts, covering screen for first class sound case. Also fencing for super highway,
studio,highway.
Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.It have been 15 years that we manufacture and exported wire mesh product,our main product is stainless steel woven wire mesh,we keep the good manufacture technique of wire mesh product,to client orders,we will finish it within our shortest production time while keep mesh quality.
