0.25mm 0.28mm Stainless Steel Knitted Wire Mesh 0.20mm 0.23mm
Price:
Negotiable
MOQ:
50Rolls
Delivery Time:
a week
Brand:
QIANPU
Product Description
Stainless Steel Knitted Wire Mesh, Mainly 0.20mm, 0.23mm, 0.25mm, 0.28mm Wire
Knitted Wire Mesh Introduction:
Knitted wire mesh is made of either crochet or knitting of various wire materials including stainless steel, copper, synthetic fiber and other materials.
Knitted wire mesh products are applied to those applications including cryogenic, high temperature, corrosive atmosphere, heat conductive, high usage, or special service applications.
Our knitted wire mesh is made from all material available in wire shapes for processing of the following parts:
Filters Oil and Air Breather Elements Catalytic Converter Mesh Insulator Blanket Mesh Mufflers and Silencers Copper Mesh Oil-Bath Separators Mist Elimination Pads Ground Wire Mesh
Specifications:

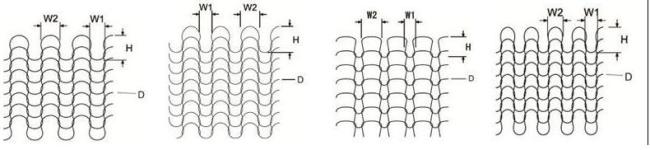

| Specification of flat wire stainless steel knitted mesh | ||||
| Wire Diameter (mm) | Mesh Opening/ Loop Size (mm) | Number of Needles | Maximum Width (mm) | Minimum Width (mm) |
| 0.1 × 0.3 | 2 × 4 | 36 | 60 | 55 |
| 0.1 × 0.3 | 4.5 × 4 2.5 × 4 | 34 | 150 | 100 |
| 0.1 × 0.4 | 4.5 × 5.5 2.5 × 5.5 | 40 | 150 | 120 |
| 0.1 × 0.4 | 4 × 3.5 2.5 × 3.5 | 56 | 205 | 180 |
| 0.1 × 0.4 | 4 × 4 3 × 4 | 65 | 260 | 240 |
| 0.2 × 0.4 | 5.2 × 3.5 3 × 3.5 | 94 | 420 | 380 |
| 0.2 × 0.4 | 7.5 × 5 5 × 5 | 102 | 565 | 490 |
| 0.2 × 0.5 | 5 × 4 2.5 × 4 | 128 | 560 | 470 |
| Specification of round wire stainless steel knitted mesh | |||
| Wire Diameter (mm) | Width (mm) | Number of Stitches Per cm on Length | Number of Stitches Per cm Across Lay Flat |
| 0.08 – 0.18 | 6 - 300 | 3.5 | 4.4 |
| 0.16 | 40 - 600 | 2.4 | 3.5 |
| 0.18 - 0.35 | 30 - 1000 | 1.6 | 1.9 |
| 0.25 - 0.40 | 30 - 1000 | 1.6 | 0.74 |
| 0.4 - 0.5 | 100 - 350 | 0.5 | 0.5 |
Other Specifications according to your requests.
Main Materials Applied for Knitted Mesh:
Monel knitted wire mesh has good corrosion resistance in all extreme environments and it is reasonably conductive and is tough with high tensile strength, giving good wear characteristics.
Applications:
Knitted wire mesh made of tinned copper clad steel has the best shielding performance of all wires used in knitted meshes, combining low contact resistance with a small degree of permeability. It is not suitable for highly abrasive applications where the TIN plating may wear away to expose the copper. The corrosion resistance of tinned copper clad steel knitted wire mesh is suitable for most applications
Stainless steel knitted mesh is often used as a protective final layer over the other knitted mesh gasket, materials on order to provide a wear-resistant contact surface.
Advantages and benefit of stainless steel knitted mesh:
Corrosion resistance.
Alkali and acid resistance.
Rust resistance.
High temperature resistance.
Excellent shielding performance.
Outstanding filtering efficiency.
Durable and long service life.
Packing:
