AISI304 8 To 100 Stainless Steel Woven Wire Mesh Herringbone Weave

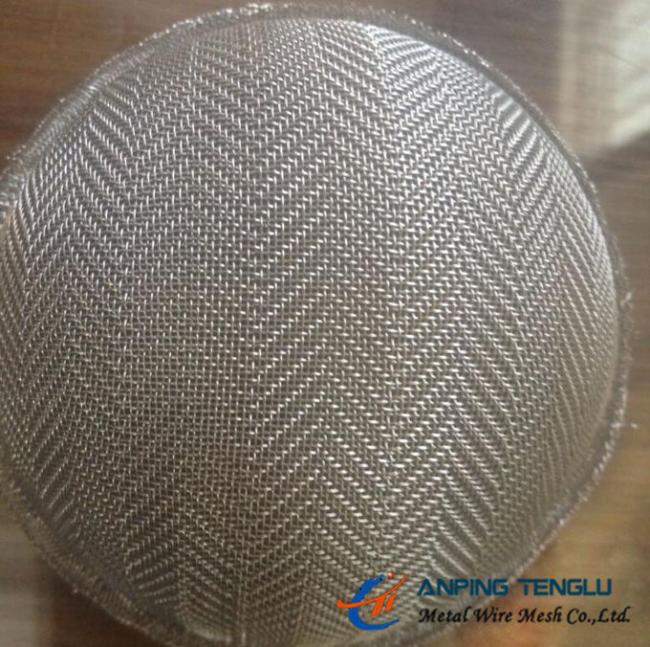

AISI304 Herringbone Weave Used in the Dry Belt SS Woven Wire Mesh
Stainless Steel Herringbone Weave Wire Mesh Introduction:

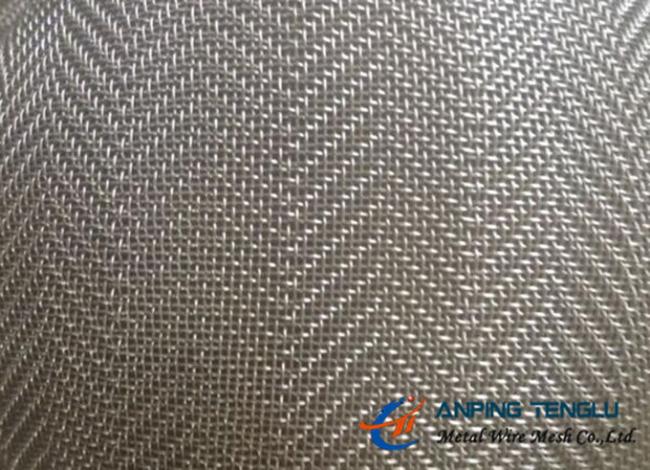

Herringbone, also called broken twill weave, describes a distinctive V-shaped weaving pattern usually found in twill weave wire mesh. The direction of twilled weave is reversed at regular intervals. The pattern is called herringbone because it resembles the skeleton of a herring fish. The main feature is the smooth surface offering strong corrosion resistance, high tensile strength, good air permeability, easy deformation, durability and other special features. This fine mesh can reduce and prevent the leakage of small objects. Currently it is widely used in food, petrochemical, electronic components, machinery parts, heat treatment and other applicable industries.
Material:
Mainly with stainless steel 304.
Weaving Type:
Herringbone Weave (Aslo called broken twill weave)
Specifications:
| Mesh/Inch | Wire Diameter(mm) | Aperture(mm) |
| 8 | 0.71 | 2.47 |
| 10 | 0.65 | 1.89 |
| 12 | 0.60 | 1.52 |
| 14 | 0.50 | 1.31 |
| 16 | 0.40 | 1.19 |
| 20 | 0.40 | 0.87 |
| 24 | 0.35 | 0.71 |
| 30 | 0.30 | 0.55 |
| 40 | 0.25 | 0.39 |
| 50 | 0.20 | 0.31 |
| 60 | 0.17 | 0.25 |
| 80 x 70 | 0.135 | - - |
| 100 x 90 | 0.11 | - - |
Other specifications according to your requirements.
Features:
The main feature is the smooth surface offering strong corrosion resistance, high tensile strength, good air permeability, easy deformation, durability and other special features.
Applications:
It is widely used in food, petrochemical, electronic components, machinery parts, heat treatment and other applicable industries.
Packing:
