0.1mm To 0.3mm Stainless Steel Knitted Wire Mesh 300 Openings Per 600mm
300 Openings Per 600mm Width High Efficient Stainless Steel Knitted Wire Mesh
High Efficient Knitted Wire Mesh Introduction:
Knitted mesh is made of either crochet or knitting of various wire materials including stainless steel, copper, synthetic fiber and other materials.
Knitted wire mesh products are applied to those applications including cryogenic, high temperature, corrosive atmosphere, heat conductive, high usage, or special service applications.
300 - 600 model knitted wire mesh use 0.10 - 0.30mm wire, knitted into a mesh of interlocking loops, application for liquid/ gas separation or gas/ water separation in the process of filtration, screening, distillation, evaporation and absorption etc. The mesh has the characteristics of high filtering accuracy, good penetrability, flexibility, electrical conductivity, thermal conductivity, etc.
Materials:
Stainless steel knitted mesh is often used as a protective final layer over the other knitted mesh gasket, materials on order to provide a wear-resistant contact surface.
Monel knitted wire mesh has good corrosion resistance in all extreme environments and it is reasonably conductive and is tough with high tensile strength, giving good wear characteristics.
Aluminum knitted wire mesh is mechanically weak and will readily take a compression set and this combined with its readiness to form a non-conducting oxide.

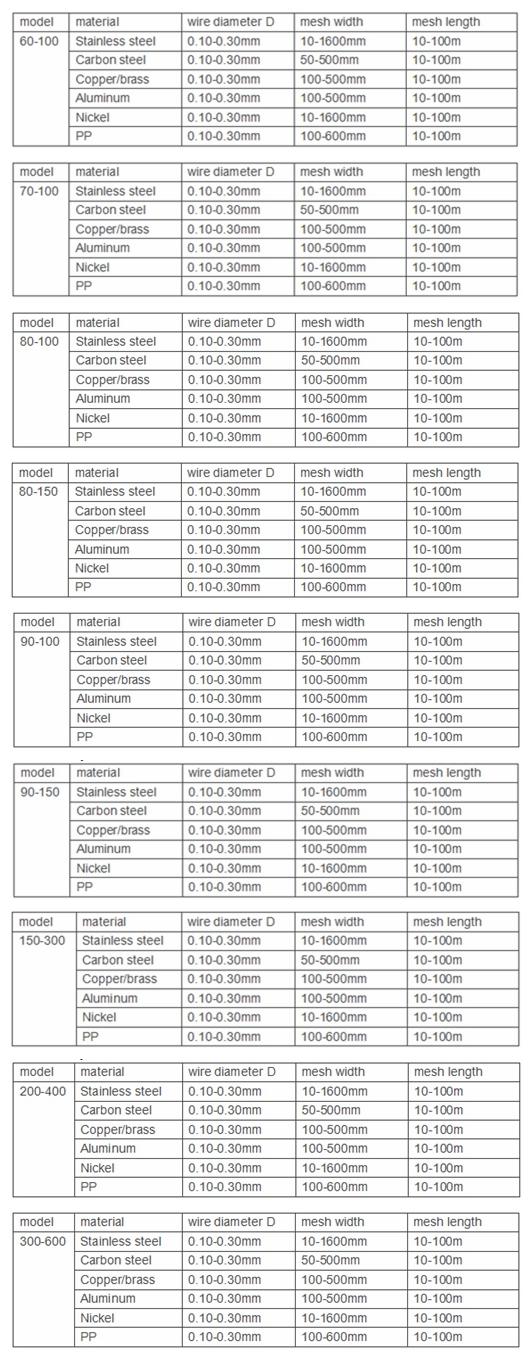

300-600 knitted mesh specs:
| Model | Material | Wire Diameter | Mesh Width | Mesh Length |
| 300-600 | Stainless Steel | 0.1-0.3mm | 10-1600mm | 10-100m |
| Carbon Steel | 0.1-0.3mm | 50-500mm | 10-100m | |
| Copper Brass | 0.1-0.3mm | 100-500mm | 10-100m | |
| Aluminum | 0.1-0.3mm | 100-500mm | 10-100m | |
| Nickel | 0.1-0.3mm | 10-1600mm | 10-100m | |
| Notes: 1. 300-600 model: it has 300 openings in the mesh width of 600mm. 2. Common wire diameter includes 0.20mm, 0.23mm, 0.25mm, 0.28mm. 3. The mesh can be made into single strand, double strand, multi-strand etc. 4. The surface include flattened and crimped. |
||||
Features:
High collection efficiency;
Fast delivery and service;
Custom-designed for specific applications;
Efficient and economical for a wide range of applications;
It is convenient for installation, operation and maintenance.
Applications:
EMI and RFI shielding
Air filter in the cars or tractors
Gas/ liquid separation, gas/ water separation, oil/ water separation
Making cleaning ball
Medical devices
Textile fabrics
Rangehood filters
Decorative mesh
