High Carbon Steel Crimped Wire Mesh Quarry Screen 1.37mm To 12.7mm Diameter
High Carbon Steel Quarry Screen 1.37mm To 12.7mm Diameter Wire Crimped Wire Mesh

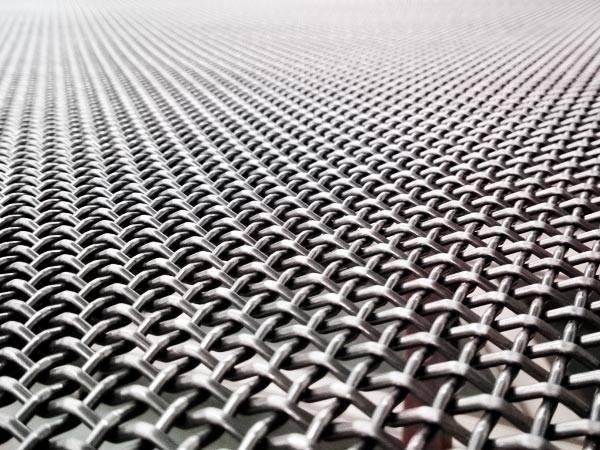

Quarry crimped wire mesh
Crimped Wire Mesh is most used for mining screen mesh, quarry mesh screen, vibrating Screen. And 65Mn wire mesh is the best material.
Material: High carbon steel 65Mn,45#,50#,55#,60#,70#,72A
Wire diameter: 1.37mm-12.7mm
Aperture/Opening: 2mm to 100mm,tolerance +-3%
Our products perfectly matched with various kinds of vibrating screens including international brands. More precise, More service life, More rust proof are our quality standards.
SS304, SS316 stainless steel crimped mesh has the feature of high temperature resisting, acid resisting, alkali resisting, corrosion resisting, etc. It is widely used for mining, coal plants, construction, petrochemical industry, machinery, etc.
Crimped Wire Mesh is made by galvanized steel wire ,high carbon steel, 65Mn wires, galvanized steel wire , stainless steel wire, copper steel wires and other metal wires.

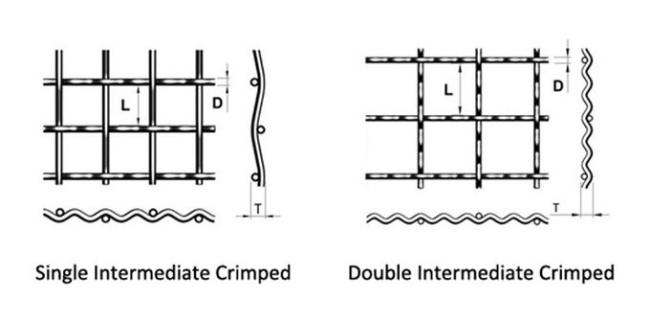

Weaving Patterns: weaving after crimping.
Processing method: Locked weave, Bi-directional plain weave, single wave weave, two-way wave weaving, rectangular opening weaving.
General Use: Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.
Specifications:
| Wire Gauge (SWG) | Wire Diameter (mm) | Mesh/ Inch | Aperture (mm) | Weight (kg) |
| 6 | 4.8 | 1 | 20.6 | 11.5 |
| 8 | 4.05 | 2 | 9 | 16.5 |
| 10 | 3.2 | 2 | 10 | 10.5 |
| 12 | 2.6 | 3 | 5.9 | 10.5 |
| 14 | 2 | 3 | 6.5 | 6 |
| 16 | 1.6 | 4 | 5 | 5.5 |
| 17 | 1.4 | 5 | 5.1 | 5 |
| 18 | 1.2 | 5 | 4 | 3.6 |
| 19 | 1 | 6 | 3.2 | 3 |
| 21 | 0.8 | 7 | 2.8 | 2.3 |
| 22 | 0.7 | 8 | 2.5 | 2 |
Other Specifications according to your requirements.
Weave Patterns: Locked weave, Bi-directional plain weave, single wave weave, two-way wave weaving, rectangular opening weaving.
Material: High carbon steel 65Mn,45#,50#,55#,60#,70#,72A
| NO | Grade | Chemical Composition% | ||
| C | Si | Mn | ||
| 1 | 45# | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50# | 0.47-0.55 | ||
| 3 | 55# | 0.52-0.60 | ||
| 4 | 60# | 0.57-0.65 | ||
| 5 | 65# | 0.62-0.70 | ||
| 6 | 70# | 0.67-0.75 | ||
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 | |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
Features:
Intercrimped assure the proper locking of the warp and weft wires;
Superior rigidity and greater stability;
Strong wear resistance and firm structure.
Usage:

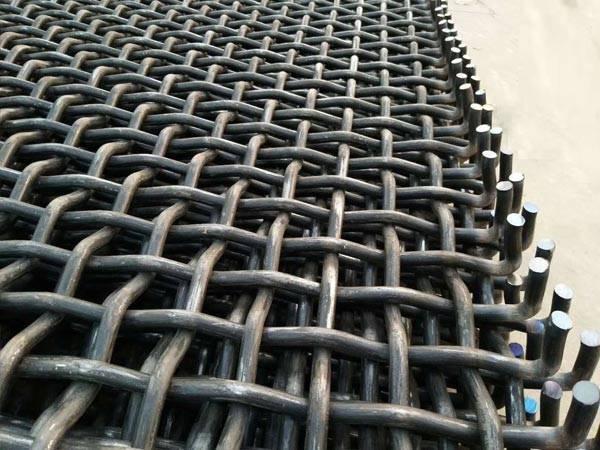

Heavy Screening & Sieving Of Coal Mines.
Stone Quarry Works
Wire Mesh For Pig Breeding
Coal Mine
Cement Plant
The Cement Factory Petroleum
Glass Factory
Hardware Products.
Packing:
Crimped wire mesh is packed in rolls, wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.
