5mm Crimped Wire Mesh 65mn Steel Galvanized Steel Stainless Steel Aluminum
65Mn steel wire galvanized steel stainless steel aluminum Crimped Wire Mesh

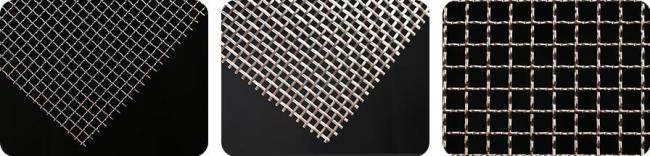

Crimped wire mesh
Crimped wire mesh is constructed of wires that have been crimped prior to weaving them together in a loom. Crimping the wires before weaving provides stability and consistency in larger spaced wire mesh. Various crimping styles have been developed over the years to improve manufacturing efficiencies, function, and aesthetics. The most common materials used to create Cripmed wire mesh are 65Mn steel wire, galvanized steel, stainless steel, aluminum, Brass and Copper, etc.
Specifications:
|
Wire Gauge (SWG) |
Wire Diameter (mm) |
Mesh/Inch |
Aperture (mm) |
Weight (kg/m2 ) |
|
6 |
4.8 |
0.7 |
3 |
14 |
|
6 |
4.8 |
1 |
2 |
20 |
|
6 |
4.8 |
1.2 |
2 |
20 |
|
8 |
4.05 |
18 |
1 |
15 |
|
14 |
2 |
5.08 |
0.3 |
12 |
|
14 |
2 |
2.1 |
1 |
2.5 |
|
14 |
2 |
3.6 |
1.5 |
1.9 |
|
14 |
2 |
21 |
1 |
4.2 |
|
19 |
1 |
2.3 |
0.18 |
1.45 |
|
22 |
0.71 |
12 |
0.14 |
2.94 |
|
23 |
0.61 |
18 |
0.8 |
3.4 |
|
24 |
0.55 |
16 |
0.1 |
2.5 |
|
24 |
0.55 |
14 |
0.12 |
4 |
|
25 |
0.5 |
20 |
0.61 |
2.6 |
Other Specifications according to your requirements.
Weave Patterns: Locked weave, Bi-directional plain weave, single wave weave, two-way wave weaving, rectangular opening weaving.
Features:
Solid construction
Extremely versatile
East to install
Can have low resistance to wind loads
Easily cut to fit
Available in many materials, such as stainless steel and aluminum.
Stainless steel cripmed wire mesh is especially useful because it is extremely chemical resistant, works with hot or cold liquids, and is easily cleaned. Aluminum mesh is lightweight, strong, has a high electrical conductivity, and a low melting point. Aluminum mesh also significantly resists atmospheric corrosion. Carbon steel and galvanized wire mesh are strong, economical, and readily available. Other exotic materials such as copper and nickel can also be woven into wire mesh.
Usage:
• Fencing
• Baskets
• Grills
• Grates
• Display shelves and stands
• Racks
• Liquid filtration
• Air filtration
• Wall reinforcement
Packing:
Crimped wire mesh is packed in rolls, wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.
