Astm 304ss Lock Stainless Steel Crimped Wire Mesh 3/4" Opening 0.0787"
ASTM 304SS Lock Crimped Wire Mesh 3/4" Opening 0.0787" wire Firm Structure
Crimped Wire Mesh Introduction:
Crimped wire mesh can be also known as the iron crimped mesh, stainless steel crimped mesh and black iron crimped mesh according to different materials. It is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings. Our crimped wire mesh products are made of galvanized wire mesh and stainless steel wire mesh. According to loading capacity and wire used, it can be separated into heavy type and light type.
Crimped wire mesh products are used as fence or filter in a lot of industries. Heavy type crimped wire mesh is used in screening in mine, coal factory, construction and other industries. Light type crimped wire mesh can be used to roast for food or meat.
Specifications:
| Lock Crimp Wire Mesh | ||||
| Opening | Wire Diameter | Open Area | ||
| mm | Inch | mm | Inch | % |
| 10.0 | 0.394 | 2.5 | 0.098 | 64.00 |
| 2.0 | 0.079 | 69.44 | ||
| 1.8 | 0.071 | 71.82 | ||
| 1.6 | 0.063 | 74.32 | ||
| 1.5 | 0.059 | 75.61 | ||
| 1.4 | 0.055 | 76.95 | ||
| 1.2 | 0.047 | 79.72 | ||
| 1.0 | 0.039 | 82.64 | ||
| 12.0 | 0.472 | 4.0 | 0.157 | 56.25 |
| 3.5 | 0.138 | 59.93 | ||
| 2.6 | 0.102 | 67.55 | ||
| 1.5 | 0.059 | 79.01 | ||
| 12.7 | 1/2” | 4.0 | 0.157 | 57.83 |
| 3.5 | 0.138 | 61.46 | ||
| 3.0 | 0.118 | 65.43 | ||
| 2.5 | 0.098 | 69.81 | ||
| 2.0 | 0.079 | 74.64 | ||
| 1.8 | 0.071 | 76.71 | ||
| 15.0 | 0.591 | 4.8 | 0.189 | 57.39 |
| 4.5 | 0.177 | 59.17 | ||
| 4.0 | 0.157 | 62.33 | ||
| 3.5 | 0.138 | 65.74 | ||
| 3.0 | 0.118 | 69.44 | ||
| 2.6 | 0.102 | 72.63 | ||
| 2.5 | 0.098 | 73.47 | ||
| 2.0 | 0.079 | 77.85 | ||
| 19.0 | 0.748 | 4.8 | 0.189 | 63.73 |
| 4.0 | 0.157 | 68.24 | ||
| 3.5 | 0.138 | 71.30 | ||
| 20.0 | 0.787 | 4.8 | 0.189 | 65.04 |
| 4.5 | 0.177 | 66.64 | ||
| 4.0 | 0.157 | 69.44 | ||
| 3.5 | 0.138 | 72.43 | ||
| 3.0 | 0.118 | 75.61 | ||
| 2.5 | 0.098 | 79.01 | ||
| 2.0 | 0.079 | 82.64 | ||
| 25.0 | 0.984 | 4.8 | 0.189 | 70.37 |
| 3.5 | 0.138 | 76.94 | ||
| 3.0 | 0.118 | 79.71 | ||
| 2.0 | 0.079 | 85.73 | ||
| 25.4 | 1” | 4.8 | 0.189 | 70.74 |
| 4.5 | 0.177 | 72.16 | ||
| 4.0 | 0.157 | 74.64 | ||
| 3.5 | 0.138 | 77.25 | ||
| 3.0 | 0.118 | 79.99 | ||
| 2.5 | 0.098 | 82.88 | ||
| 30.0 | 1.181 | 4.8 | 0.189 | 74.32 |
| 4.5 | 0.177 | 75.61 | ||
| 4.0 | 0.157 | 77.85 | ||
| 3.5 | 0.138 | 80.20 | ||
| 3.0 | 0.118 | 82.64 | ||
| 2.5 | 0.098 | 85.21 | ||
| 38.1 | 1-1/2” | 4.8 | 0.189 | 78.87 |
| 4.5 | 0.177 | 79.99 | ||
| 4.0 | 0.157 | 71.90 | ||
| 3.5 | 0.138 | 83.88 | ||
| 3.0 | 0.118 | 85.93 | ||
| 2.5 | 0.098 | 88.06 | ||
| 50.8 | 2” | 4.8 | 0.189 | 83.48 |
| 4.5 | 0.177 | 84.39 | ||
| 4.0 | 0.157 | 85.93 | ||
| 3.5 | 0.138 | 87.52 | ||
| 3.0 | 0.118 | 89.16 | ||
| 70.0 | 2.756 | 4.8 | 0.189 | 87.58 |
| 76.2 | 3” | 4.8 | 0.189 | 88.50 |
| 4.5 | 0.177 | 89.16 | ||
| 4.0 | 0.157 | 90.27 | ||
| 3.5 | 0.138 | 91.41 | ||
| 88.9 | 3-1/2” | 3.5 | 0.138 | 92.57 |
| 101.6 | 4” | 4.8 | 0.189 | 91.18 |
Other sizes as your special request.
Material:
Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.
Besides above following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel

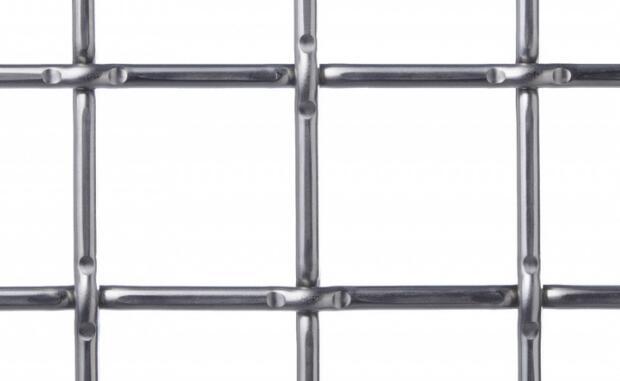

Lock Crimped:
Features:
Structure firm and durable, Heat resistance, Acid resistance, Alkalis Resistant, Corrosion resistance, Wear Resistance, Impact resistance, Keep the wires in a specific position, Strong and durable, long life.
Applicatioins:
- Food industries
- High pressure filters
- Cooling circuit filters
- Grids and trays for thermal treatments
- Decoration
Packing:
in waterproof paper and film, then in pallets. Custom packing available at request.
