High Flow Rate 50 Mesh Stainless Steel 316 Woven Mesh Filter For Water Filtration

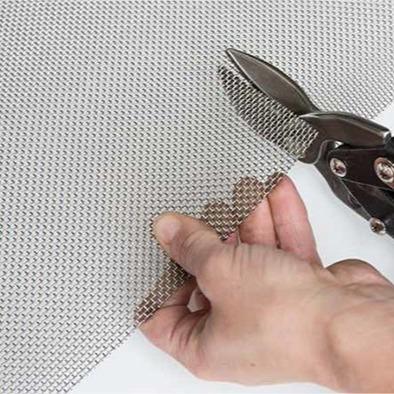

Stainless Steel Woven wire mesh is also called stainless steel screen or stainless steel cloth. They are made by weaving stainless steel into a mesh in the form of a woven type and are selected as industrial materials. Stainless steel woven wire mesh is durable and corrosion-resistant. Woven mesh is widely used in filtering, screening, separation, drying and door and window protection.
| Product Name: | Woven Wire Mesh, Wire Cloth |
| Stainless Steel Grade: |
304, 304L, 316, 316L, 310s, 904L, 430, etc |
| Special Material Options: | Inconel, Monel, Nickel, Titanium, etc |
| Wire Diameter Range: | 0.02 - 6.30mm |
| Hole Size Range: | 1 - 3500mesh |
| Weave Types: | Plain Weave, Twill Weave, Dutch or 'Hollander' Weave, Plain Dutch Weave Twill Dutch Weave, Reverse Dutch Weave, Multiplex Weave |
| Mesh Width: | Standard less than 2000 mm |
| Mesh Length: | 30m rolls or cut to length, minimum 2m |
| Mesh Type: | Rolls and sheets are available |

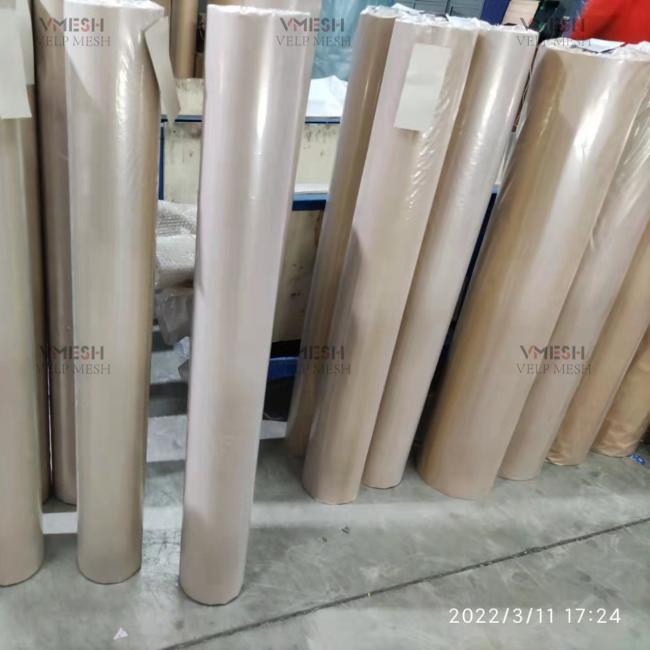

We maintain huge stocks of mesh. Rolls of woven wire stainless steel mesh are readily available in a wide range of mesh specifications. We keep stocks with a mesh count from 2 mesh (with a 1.6 mm wire diameter) through to 500 mesh (with a 0.025 mm wire diameter). These provide apertures from 11.1 mm down to 0.025 mm (25 microns).
Primarily of stainless steel, woven wire mesh stocks are also held in a range of other materials. These include mild steel, brass, phosphor bronze, copper, monel, aluminium . Furthermore, we stock Type 304 and Type 316 stainless steel mesh in most specifications.
Woven wire mesh is available on the roll or cut to size. We provide fine and strict packaging to ensure that the goods will not be damaged.
The usual packing is wooden case, or as customized.
woven bag + safety belt + pvc film + wooden case
