Custom Stainless Steel Wedge Wire Johnson Screen For Oil Gas Filtration Screen
Custom Stainless Steel Wedge Wire Johnson Screen For Oil Gas Filtration Screen
Wedge wire screen Product Information
Wedge wire screen Parameter
| Material | stainless steel 304/316 |

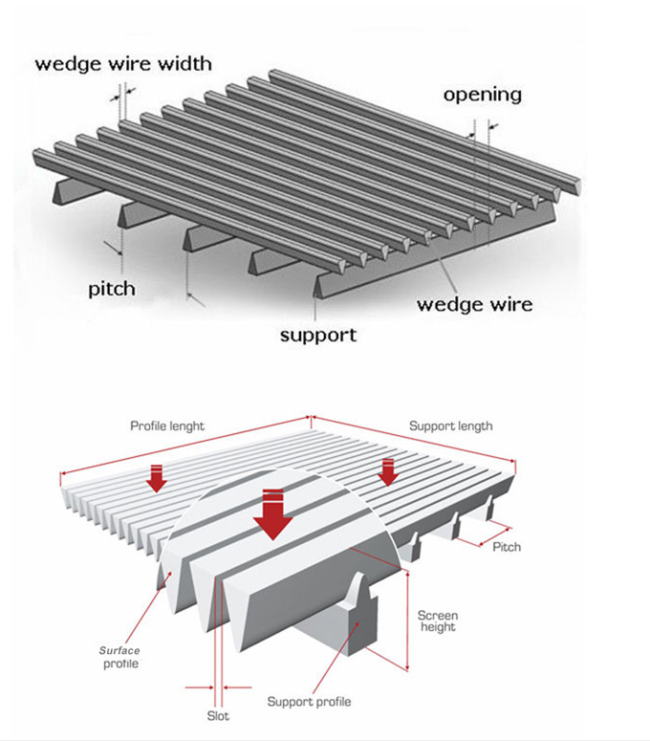

| Wedge wire |
Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm |
| Support rod |
Width:2.3mm 3.0mm 3.3mm 3.7mm Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm Round : from 2.5mm---6.0mm |
| Support profile | Flat,triangle wire,round wire,trapezoid wire |
| Size | can be customized |
| Characteristics | Strong solid structure,High open area, accurate slot dimensions |
|
End Finishing: |
Thread fitting,flange,closed plated,resistance welded closed plate,metal ring,etc |
Wedge wire screen Advantage
-
Strong Corrosion Resistance: Stainless steel mesh can be used for extended periods in humid, acidic, or alkaline environments without rusting or degradation.
-
High Temperature Resistance: The mesh maintains its strength and shape even at high temperatures, making it ideal for high-heat applications.
-
High Strength and Excellent Wear Resistance: Stainless steel mesh is durable and resistant to abrasion, making it particularly suitable for applications that require heavy-duty screening and filtration.
-
High Screening Accuracy: With uniform mesh openings, it provides precise and efficient screening, ideal for fine filtration and applications that require high precision.
-
Easy to Clean and Maintain: The smooth surface of stainless steel resists dirt and debris buildup, making the mesh easy to clean and maintain over time.
Wedge wire screen Application
304 stainless steel wedge wire mesh screens are widely used in water treatment plants, wastewater treatment systems, oil and gas filtration, mining, mineral processing, coal washing, pulp and paper production, food processing, sugar refining, breweries, pharmaceutical manufacturing, resin trapping, starch production, chemical processing, and many other industrial applications.

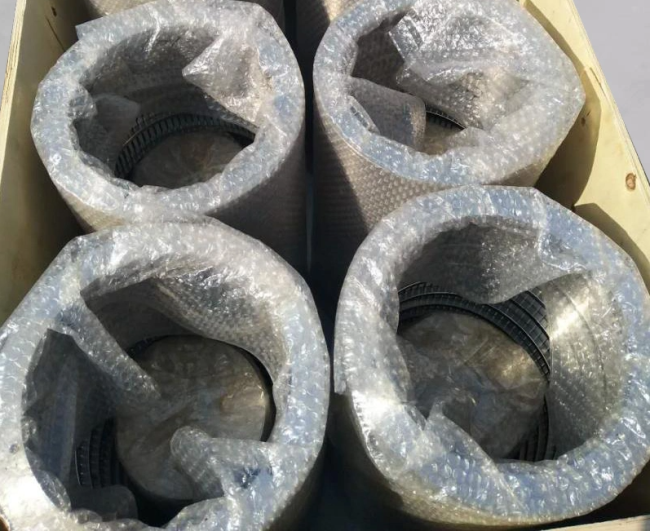

Packing
1.for small quantity, shipped by courier.
2.for large quantity, shipped by air or by sea.
3.tracking number will be emailed to you after order has been shipped.
4.If you have forwarder in China, we can send to your forwarder for free.
FAQ
Q1:Can i get a free samples?
A:Yes,we have free samples to be provided anytime.
Q2:What type of materials do you use for your products?
A:stainless steel.
Q3:Is there quality control on all production lines ?
A:Yes,all production line have adequate quality control.
Q4:What is your terms of payment ?
A:T/T 30% as deposit,and 70% balance before delivery.We’ll show you the videos of products and packages before you pay the balance.
Q5:How about the delivery time ?
A:Generally,it will take 15days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
