Fencing Raised Expanded Metal Diamond Mesh Carbon Steel 3.14lbs Grating Grid
Fencing Raised Carbon Steel 3.14lbs Expanded Grating Grid
Fencing Raised Carbon Steel 3.14lbs Expanded Grating Grid Introduction
Expanded metals grating are manufactured in carbon steel,aluminum for light weight applications, and stainless steel in wet environments.Expanded metal gratings are produced by slitting and stretching the metal plate in one operation creating an anti-skid surface with large openings,This anti slip surface creates a safe foothold to walk and stand.It can be used in the building,oil industry as the filters,the galvanized steel flattened expanded metal normally used as the filters for the air,grease.
Fencing Raised Carbon Steel 3.14lbs Expanded Grating Grid Specifications
Carbon steel expanded metal grating provides a reliable anti slip surface,that is suitable for industrial facilities and other areas requiring walkway safety gratings. Expanded graiting is the most economical industrial walking surface you can install in your plant.
| Style | Min LBS per 100sqft | SWD | LWD | SWO | LWO | Strand width(inches) | Finished strand thickness(inches) | Approx % open area |
| 3.0lbs | 301 | 1.33" | 5.33" | 0.945" | 3.74" | 0.256 | 0.187 | 60 |
| 4.0lbs | 394 | 1.33" | 5.33" | 0.945" | 3.74" | 0.319 | 0.197 | 55 |
| 5.0lbs | 498 | 1.33" | 5.33" | 0.945" | 3.74" | 0.35 | 0.226 | 50 |
| 6.25lbs | 628 | 1.33" | 5.33" | 0.945" | 3.74" | 0.339 | 0.295 | 50 |
Fencing Raised Carbon Steel 3.14lbs Expanded Grating Grid Advantages
1.Grating is the most ecomonical industrial walking surface you can install in your plant.
2.Walking surface is anti skid,providing safe foothold.
3.The open design allows effective sprinkler coverage for fire protection,prevent dirt grease or snow accumulation.
4.Expanded solutions grating costs less than bar type or sheet metal grating and easy to install in applications.
5.Easy to clean and install with strong bearing capacity
6.High strength,corrosion resistance etc.
7.Ventilation light transmission
Fencing Raised Carbon Steel 3.14lbs Expanded Grating Grid Usage
Expanded metal grating is a strong and economical product used in a variety of industry.commercial,architectural and drainage applications.
Expanded metal mesh can be widely used in including the protection of machinery equipment,handicraft manufacturing,shelves.heavy machinery,work platforms.walkway ships.

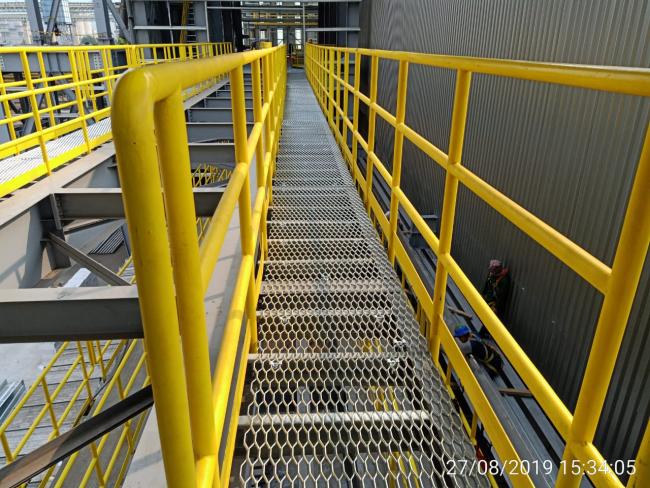

| Walkway,mezzanines and stairways | Drive and sidewalk grates | Security mesh,Concrete reinforcement, |
| Cab truck dividers | Interior partitions barriers | Water treatment plants |
| Industrial plant construction | fence and barrier construction | Trailer manufacturing |
