Standard Specification 358 Welded Wire Mesh Panels Anti Climb For Fence
standard specification 358 anti climb welded wire mesh panel for fence
Product Introduction
It is a sepcification of the welded wire mesh and it has been very popular for many years.

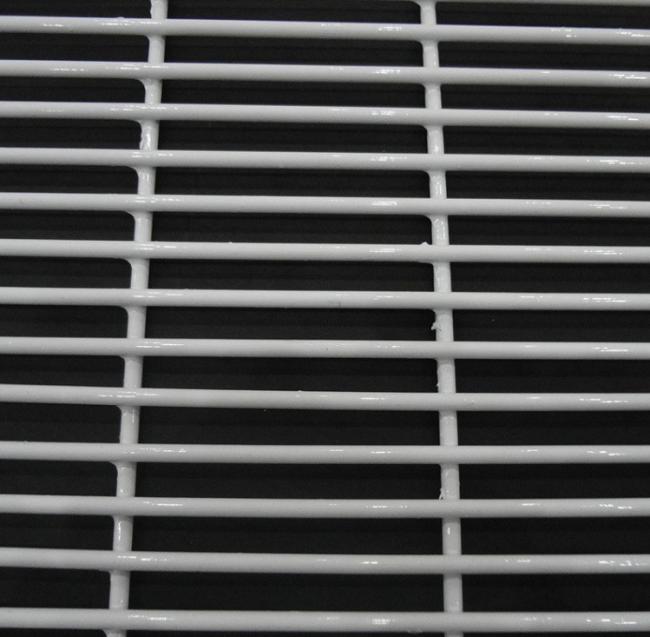

358 guarails: "358" is called from its mesh size is 3"*0.5" inches.8 refers to its wire size,converted to millimeters is 4mm.So the size of 358 guardrail is 76.2mm*12.7mm*4mm(hole length*hole height*wire diameter). The panel size and the post can be customized, please feel free to contact us for inquiry.
The main markets are in Europe and America.
Product Specification
Welded wire mesh panel specifications
|
Material |
Low carbon steel wire Q195, Q235, stainless steel |
|
Surface |
Black wire, re-drawing wire, electroc galvanized, hot dipped galvanized wire, PVC coated |
|
Wire Diameter |
1mm-10mm |
|
Hole (mesh) |
2.5-25cm |
|
Length |
≤8m |
|
Width |
0.5-3m |
|
Package |
iron pallet or nude packing |
|
Wire diameter(mm) |
Vertical spacing(mm) |
Horizontal spacing(mm) |
Length(m) |
|
10 |
100-500 |
30-300 |
1-8 |
|
9 |
100-500 |
30-300 |
1-8 |
|
8 |
100-500 |
30-300 |
1-8 |
|
7 |
50-200 |
20-300 |
1-8 |
|
6 |
50-200 |
20-200 |
1-8 |
|
5 |
50-200 |
10-200 |
1-8 |
|
4 |
30-200 |
10-200 |
1-8 |
|
2-4 |
25-100 |
10-100 |
1-6 |
|
1 |
33 |
15-80 |
2.2 |
|
Specification |
||||
|
Opening |
Wire Diameter |
Width 0.4-2m Length 5-50m |
electric galvanized before welded, electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire
|
|
|
Inch |
Metric Unit |
|||
|
1/4"x1/4" |
6.4mmx6.4mm |
BWG24-22 |
||
|
3/8"x3/8" |
10.6mmx10.6mm |
BWG22-19 |
||
|
1/2"x1/2" |
12.7mmx12.7mm |
BWG23-16 |
||
|
5/8"x5/8" |
16mmx16mm |
BWG21-18 |
||
|
3/4"x3/4" |
19.1mmx19.1mm |
BWG21-16 |
||
|
1"x1/2" |
25.4mmx25.4mm |
BWG21-16 |
||
|
1-1/2"x1 1/2" |
38mmx38mm |
BWG19-14 |
||
|
1"x2" |
25.4mmx12.7mm |
BWG16-14 |
||
|
2"x2" |
50.8mmx50.8mm |
BWG15-12 |
||
|
2"x4" |
101.6mmx101.6mm |
BWG15-12 |
||
|
4"x4" |
101.6mmx152.4mm |
BWG15-12 |
||
|
4"x6" |
101.6mmx152.4mm |
BWG15-12 |
||
|
6"x6" |
152.4mmx152.4mm |
BWG15-12 |
||
|
6"x8" |
15.4mmx203.2mm |
BWG14-12 |
||
|
Note:Special specification can be made according to customers requires. |
||||
Application:
airport,
industry,
agriculture fence,
construction,
transportation,
other aspects.
Packing :
The package can be customized.
Common package: iron pallet + waterproof paper+ safety belts.
