Powder Coated Stainless Steel Security Screen For Anti Insects And Bullets Black
Price:
USD25.50-30.85/m2
MOQ:
50m2
Delivery Time:
5-7days
Brand:
X MESH
Product Description

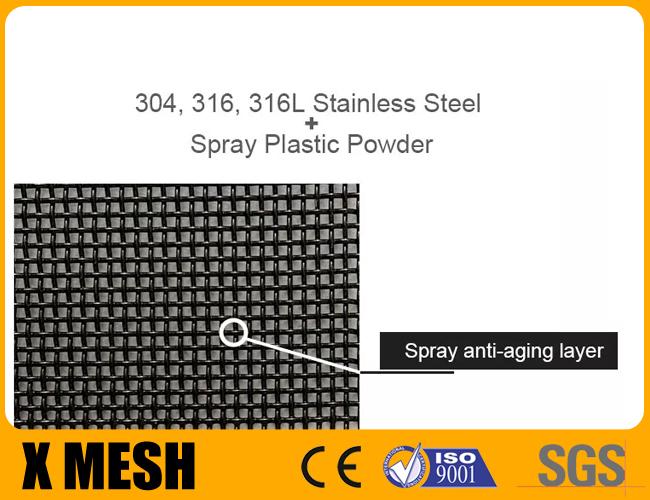

Powder Coated Stainless Steel Security Screen for Anti-insects and Bullets with Black Color
Fly Screen Mesh Introduction:
For Stainless steel insect screen, We use Structural Grade 304 and 316 stainless steel , which is the highest grade to be anticorrosive and durable. The material is high tensile strength, meaning it can resist more force applied against it and is highly effective against knife attack. Uncoated Marine steel has a higher resistance to corrosion when immersed in salt-water, but our specially developed black powder coating gives Structural Grade mesh rust resistance far beyond the normal stainless steel.
Product name |
Fly Screen Mesh |
Material |
316L stainless steel wire |
Wire Diameter |
1.0mm |
Mesh/inch |
10x10mesh |
Width |
1000mm |
Length |
2600mm |
Application |
For Doors |
Color |
Black |
Feature |
high temperature resistant |
Packing |
Plastic film & Pallet Packing |
Fly Screen Mesh Specification:
Material |
Mesh Size |
Hole Size |
Sheet Size |
General tensile 316 Marine grade stainless steel wire |
8mesh×1.2mm |
2.0mm |
Width×Length750mm×2000mm/2400mm/3000mm3500mm 900mm×2000mm/2400mm/3000mm/3500mm 1000mm×2000mm/2400mm/3000mm/3500mm 1200mm×2000mm/2400mm/3000mm/3500mm 1500mm×2000mm/2400mm/3000mm/3500mm |
9mesh×1.0mm |
1.8mm |
||
10mesh×0.8mm |
1.8mm |
||
10mesh×0.9mm |
1.6mm |
||
10mesh×1.0mm |
1.5mm |
||
11mesh×0.8mm |
1.5mm |
||
11mesh×0.9mm |
1.4mm |
||
12mesh×0.7mm |
1.4mm |
||
12mesh×0.8mm |
1.3mm |
||
12mesh×0.9mm |
1.2mm |
||
14mesh×0.5mm |
1.3mm |
||
14mesh×0.55mm |
1.2mm |
||
14mesh×0.6mm |
1.2mm |
||
18mesh×0.32mm |
1.0mm |
||
|
|
|||
High tensile 316 Marine grade stainless steel wire |
8mesh×1.2mm |
2.0mm |
Width×Length750mm×2000mm/2400mm/3000mm3500mm 900mm×2000mm/2400mm/3000mm/3500mm 1000mm×2000mm/2400mm/3000mm/3500mm 1200mm×2000mm/2400mm/3000mm/3500mm 1500mm×2000mm/2400mm/3000mm/3500mm |
8mesh×1.3mm |
1.9mm |
||
9mesh×0.9mm |
1.9mm |
||
9mesh×1.0mm |
1.8mm |
||
10mesh×0.9mm |
1.6mm |
||
10mesh×1.0mm |
1.5mm |
||
11mesh×0.8mm |
1.5mm |
||
11mesh×0.9mm |
1.4mm |
||
1.Sheet Size:Can be customized2.Coating Color:Black/Gray/White3.Packing:50 pcs per polywood box |
|||
Chemical composition of stainless steel wire: |
||||||||
Grade |
Chemical Composition(%) |
|||||||
|
|
C |
Si |
Mn |
P |
S |
Ni |
Cr |
Mo |
304 |
=0.08 |
=1.00 |
=2.00 |
=0.045 |
=0.030 |
8.00~10.50 |
18.00~20.00 |
- |
304H |
>0.08 |
=1.00 |
=2.00 |
=0.045 |
=0.030 |
8.00~10.50 |
18.00~20.00 |
- |
304L |
=0.030 |
=1.00 |
=2.00 |
=0.045 |
=0.030 |
9.00~13.50 |
18.00~20.00 |
- |
316 |
=0.045 |
=1.00 |
=2.00 |
=0.045 |
=0.030 |
10.00~14.00 |
10.00~18.00 |
2.00~3.00 |
316L |
=0.030 |
=1.00 |
=2.00 |
=0.045 |
=0.030 |
12.00~15.00 |
16.00~18.00 |
2.00~3.00 |
430 |
=0.12 |
=0.75 |
=1.00 |
=0.040 |
=0.030 |
=0.60 |
16.00~18.00 |
- |
430A |
=0.06 |
=0.50 |
=0.50 |
=0.030 |
=0.50 |
=0.25 |
14.00~17.00 |
- |
Fly Screen Mesh Benifites:
-
Excellent resistance to corrosion and impact.
-
Quality meets the demands of GB/T 1220–2007 Stainless Steel Rod standard grade.
-
Good privacy protection and aesthetic effect.
-
Easy to install with flat and straight surface.
-
Good air circulation & high quality daylighting.
Fly Screen Mesh Our Testing Standards
1. Diagonal Deviation, strict controls of +/- 5mm
2. Fine Grinding - The Surface Treatment Of 0.03mm
3. Double Plain Weave High Hardness To Bulletproof
4. Precipitation Of Metal Cons ,Non Magnetic
5. Steel Wire After Micron Grade Precision Machining
Fly Screen Mesh Standards
1. Knife Shear Test(AS5039-2008)
2. Anti-Jemmy Test(AS509-2008)
3. Pull Test(AS5039-2008)
4. Durable more than 10 years(AS2331.31-2001)
5. 3006 Hour Salt Spray Tests, 534 hours UV Test
6. Aluminium Frame Tests
7. Stainless Mesh Tests
Fly Screen Mesh Application:
Widely used in civil construction and industrial manufacturing, especially in the coastal and other corrosive work environment is more popular. For example, the usage of high-grade office buildings, residential buildings, and the properties of the door, orchard preferred protection products.
