2440mm Height Security Metal Fencing 51mmx152mm Diamond Hole Size
Price:
USD25.00-75.00/Set
MOQ:
50sets
Delivery Time:
5-8days
Brand:
X MESH
Product Description

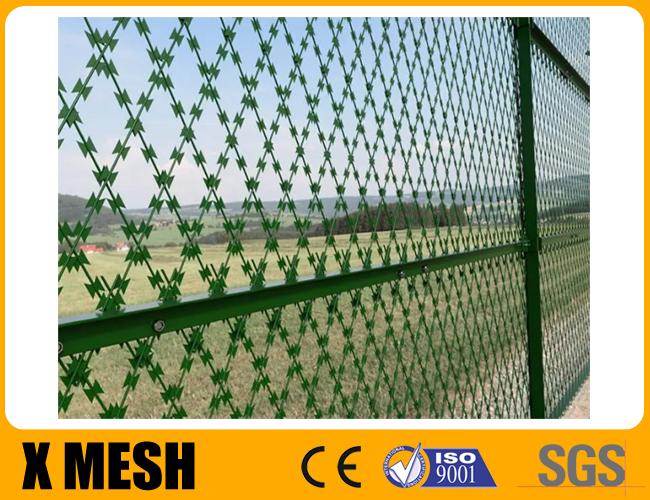

Welded Razor Wire Mesh 51mmx152mm Diamond Hole Size 2440mm Height Security Metal Fencing
Security Metal Fencing Description:
Galvanized razor wire has zinc coating in resist acid rains and bad weather. Compared with naked steel razor wire, galvanized wire is very durable and anti-rust.Galvanized razor wire often combines with chain fences, welded wire fence, walls and gates to provide high security. Welded Razor Mesh Fence is fabricated by welding straight razor wire in square or rhombus profiles with surface treatment with PVC coated.
BTO-12, BTO-15, BTO-18, BTO-22, BTO-30, CBT-60, CBT-65.
Name |
Security Metal Fencing |
Material |
Galvanized Steel/Stainless Steel |
Type |
BTO-22 |
Hole Type |
Diamond |
Hole Size |
51mmx152mm |
Height |
2.44m |
Length |
3m |
Application |
For Airport |
Feature |
Easy installation |
Packing |
Pallet/Roll Packing |
Security Metal Fencing Specification:
Square Aperture Size |
100mmx100mm,150mmx150mm,200mmx200mm |
Diamond Aperture Size |
76mmx152mm, 51mmx152mm, 25mmx51mm |
Panel Height |
1830mm,2440mm,3050mm,3660mm |
Panel Length |
customization |
Peferencenumber |
Thickness(mm) |
Wire dia(mm) |
Barb length(mm) |
Bard width(mm) |
Bard spacing(mm) |
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
BTO-15 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
BTO-30 |
0.5±0.05 |
2.5±0.1 |
30 |
18 |
45±1 |
CBT-60 |
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±2 |
CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
Barbed Tape Wire Specification |
|||||
Loop Outside Diameter |
No. of Loops |
Standard Length per Coil |
Type |
Notes |
|
450mm |
33 |
7-8M |
CBT-60.65 |
Single coil |
|
500mm |
56 |
12-13M |
CBT-60.65 |
Single coil |
|
700mm |
56 |
13-14M |
CBT-60.65 |
Single coil |
|
960mm |
56 |
14-15M |
CBT-60.65 |
Single coil |
|
450mm |
56 |
8-9m(3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
500mm |
56 |
9-10M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
600mm |
56 |
10-11M(3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
600mm |
56 |
8-10M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
700mm |
56 |
10-12M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
800mm |
56 |
11-13M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
900mm |
56 |
12-14M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
960mm |
56 |
13-15M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
980mm |
56 |
14-16M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
Security Metal Fencing Feature:
-
It is almost impossible to climb.
-
High-strength steel core make it hard to cut off.
-
Powerful security fence barriers with neat appearance.
-
Easy installation.
Security Metal Fencing Application:
Razor wire can be installed in the form of barbed tape wire or concertina coil to walls or fencing. It also can be suitable for industry,agriculture,animal husbandry,dwelling house,plantation or fencing.
Razor wire is widely used to manufacture the wire fence for a fencing system or security system
and is applicable in military field,airports fencing,prisons protection,detension houses,government buildings and other national
security facilities.
