25mmx51mm Diamond Hole Size Security Metal Fencing 1830mm Height
Price:
USD25.00-75.00/Set
MOQ:
50sets
Delivery Time:
5-8days
Brand:
X MESH
Product Description
Welded Razor Wire Mesh 25mmx51mm Diamond Hole Size 1830mm Height Security Metal Fencing
Security Metal Fencing Description:
Galvanized razor wire has zinc coating in resist acid rains and bad weather. Compared with naked steel razor wire, galvanized wire is very durable and anti-rust.Galvanized razor wire often combines with chain fences, welded wire fence, walls and gates to provide high security. Welded Razor Mesh Fence is fabricated by welding straight razor wire in square or rhombus profiles with surface treatment with PVC coated.
BTO-12, BTO-15, BTO-18, BTO-22, BTO-30, CBT-60, CBT-65.
Name |
Security Metal Fencing |
Material |
Galvanized Steel/Stainless Steel |
Type |
BTO-22 |
Hole Type |
Diamond |
Hole Size |
25mmx51mm |
Height |
1.83m |
Length |
3m |
Application |
As Security Wall |
Feature |
It is almost impossible to climb |
Packing |
Pallet/Roll Packing |
Security Metal Fencing Specification:
Square Aperture Size |
100mmx100mm,150mmx150mm,200mmx200mm |
Diamond Aperture Size |
76mmx152mm, 51mmx152mm, 25mmx51mm |
Panel Height |
1830mm,2440mm,3050mm,3660mm |
Panel Length |
customization |
Peferencenumber |
Thickness(mm) |
Wire dia(mm) |
Barb length(mm) |
Bard width(mm) |
Bard spacing(mm) |
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
BTO-15 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
BTO-30 |
0.5±0.05 |
2.5±0.1 |
30 |
18 |
45±1 |
CBT-60 |
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±2 |
CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
Barbed Tape Wire Specification |
|||||
Loop Outside Diameter |
No. of Loops |
Standard Length per Coil |
Type |
Notes |
|
450mm |
33 |
7-8M |
CBT-60.65 |
Single coil |
|
500mm |
56 |
12-13M |
CBT-60.65 |
Single coil |
|
700mm |
56 |
13-14M |
CBT-60.65 |
Single coil |
|
960mm |
56 |
14-15M |
CBT-60.65 |
Single coil |
|
450mm |
56 |
8-9m(3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
500mm |
56 |
9-10M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
600mm |
56 |
10-11M(3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
600mm |
56 |
8-10M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
700mm |
56 |
10-12M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
800mm |
56 |
11-13M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
900mm |
56 |
12-14M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
960mm |
56 |
13-15M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
980mm |
56 |
14-16M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
|
Security Metal Fencing Feature:
-
It is almost impossible to climb.
-
High-strength steel core make it hard to cut off.
-
Powerful security fence barriers with neat appearance.
-
Easy installation.
Security Metal Fencing Application:

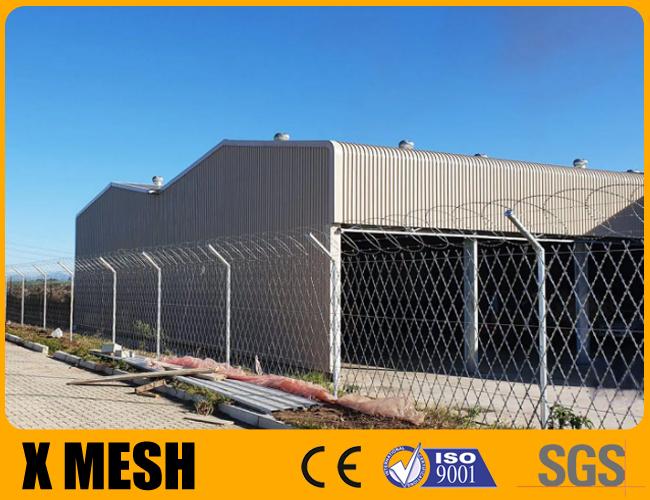

Welded razor wire fence can be used as guarding fence, for doors and windows, and also be used in military. This product can protect you and your property, and ensures the safety of the protective barriers.
