Roll Of Green Vinyl Coated Chain Link Fence ASTM F668
Price:
USD1.25-5.85/m2
MOQ:
200m2
Delivery Time:
5-7days
Brand:
X MESH
Product Description
ASTM F668 Standard Green Vinyl commercial chain link mesh fencing
chain link mesh fencing Introduction:
chain link mesh fencing ( vinyl coating )

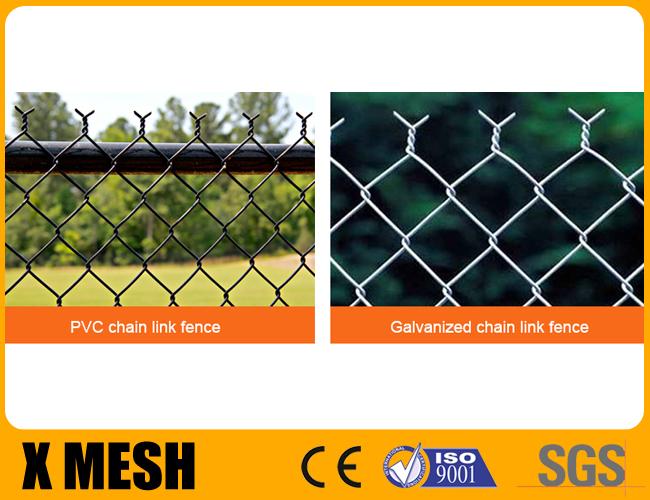

There are two types of vinyl coating (PVC coating) based on the thickness: extruded and adhered and fused and bonded. Dark green(RAL 6005) chain link fence is the most popular one among a lot of colors. Extruded and bonded chain link, always refer to as 'heavy' vinyl chain link fence is also an option. Extruded vinyl coated chain link fence is by far the most popular kind of chain link fence available in colors. It is typically the least expensive too. However, some quality conscious customers also prefer fused and bonded fence fabric. Meets ASTM F 668-04, Class 1, thickness of polymer coating between 0.015 - 0.025 inch(0.38 - 0.64mm)
chain link mesh fencing Extruded and adhered
zinc coatingcore wire size |
PVC coated finished
|
PVC coated wire
|
Core wire zinc,
|
PVC coating
|
Breaking strength
|
Tensile strength,
|
|||||||
ga. |
inch |
mm |
ga |
inch |
mm |
oz/ft2 |
g/m2 |
inch |
mm |
lbf |
N |
ksi |
Mpa |
9 |
0.148 |
3.76 |
6 |
+/- 0.005 |
+/-0.13 |
0.30 |
92 |
0.015 to
|
0.38 to
|
1,290 |
5,740 |
75 |
515 |
11 |
0.120 |
3.05 |
8 |
+/- 0.005 |
+/-0.13 |
0.30 |
92 |
850 |
3,780 |
75 |
515 |
||
14 |
0.080 |
2.03 |
11 |
+/- 0.005 |
+/-0.13 |
0.25 |
76 |
380 |
1,690 |
75 |
515 |
||
chain link mesh fencing Fused and bonded
zinc coatingcore wire size |
pvc coated finished
|
PVC coated wire
|
Core wire zinc,
|
PVC coating
|
Breaking strength
|
Tensile strength,
|
|||||||
ga |
inch |
mm |
ga |
inch |
mm |
oz/ft2 |
g/m2 |
inch |
mm |
lbf |
N |
ksi |
Mpa |
6 |
0.192 |
4.88 |
5 |
+/- 0.005 |
+/-0.13 |
0.40 |
122 |
0.006 to
|
0.15 to
|
2,170 |
9,650 |
75 |
515 |
9 |
0.148 |
3.76 |
8 |
+/- 0.005 |
+/-0.13 |
0.30 |
92 |
1290 |
5,740 |
75 |
515 |
||
10 |
0.135 |
3.43 |
9 |
+/- 0.005 |
+/-0.13 |
0.25 |
92 |
1290 |
5,740 |
90 |
620 |
||
11 |
0.120 |
3.05 |
10 |
+/- 0.005 |
+/-0.13 |
0.30 |
92 |
850 |
3,780 |
75 |
515 |
||
12 |
0.105 |
2.67 |
11 |
+/- 0.004 |
+/-0.10 |
0.30 |
76 |
650 |
2,890 |
75 |
515 |
||
14 |
0.080 |
2.03 |
13 |
+/- 0.004 |
+/-0.10 |
0.25 |
76 |
380 |
1,690 |
75 |
515 |
||
chain link mesh fencing Application:

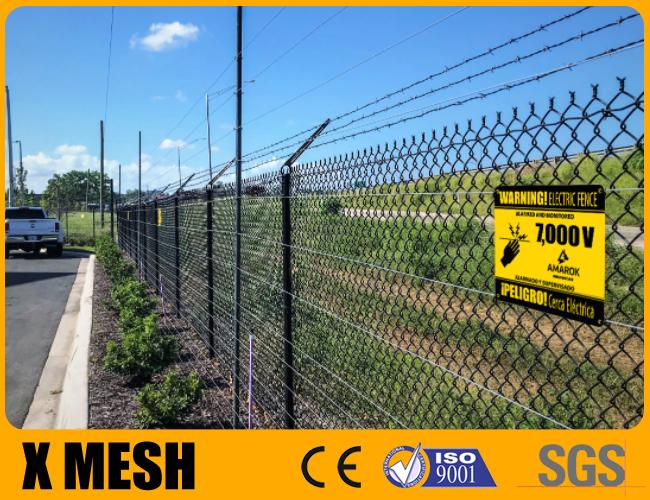

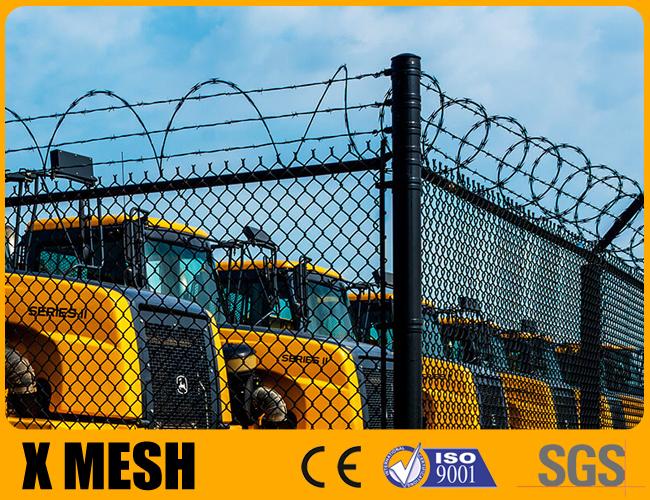

chain link mesh fencing has many applications including residential housing fences, building site and factory enclosures, sporting field enclosures, temporary fencing, internal factory partitions and more.chain link mesh fencing has many applications including residential housing fences, building site and factory enclosures, sporting field enclosures, temporary fencing, internal factory partitions and more.
