BS 10244 Metal Mesh Fencing 200x50mm Wire Mesh For Gates
Price:
USD25.00-58.35/Set
MOQ:
100sets
Delivery Time:
5-8days
Brand:
X MESH
Product Description

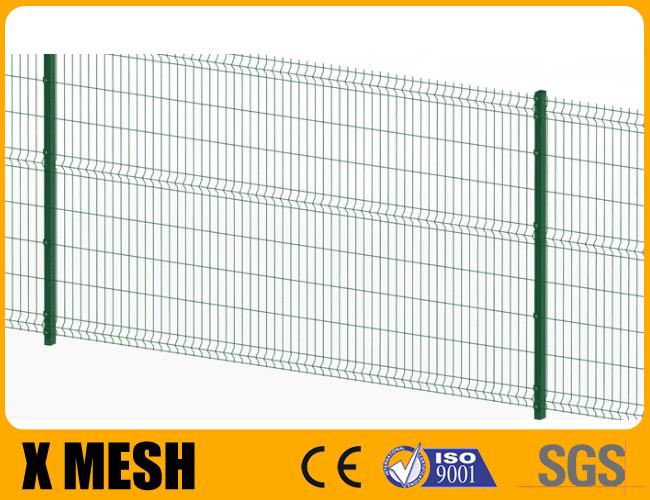

200 x 50mm mesh 1.5m High BS 10244-2:2001 Standard School Metal Mesh Fencing
Metal Mesh Fencing Description:
Metal Mesh fencing is also known as curvy welded fencing, triangle mesh fence,3D fence, etc. Triangle bend fence is pretty light yet durable, its composition is simply wire welded together to make a fence. The surface treatment of Welded wire mesh fence includes: hot-dipped galvanized, PVC coated, powder coated.
Metal Mesh Fencing Introduction:
Panel WireMaterial: 1. Low carbon steel wire/iron wire , 2.Hot dipped galvanized wire
Panel wire Diameter: 3mm-6mm
Panel mesh (Opening)size: common sizes: 50x50mm,50x100mm,50x150mm,50x200mm, customized size is available.
Panel Surface treatment: Hot Dipped galvanized or Powder coating or PVC coating
Metal Mesh Fencing Specification:
Mesh Panel |
Wire Thickness |
Panel Width |
Number of Folds |
Height |
Spacing between horizontal wire: 100mm, 150mm, 200mm |
3.0mm
|
2.0m or 2.50m
|
2 |
830mm |
2 |
1030mm |
|||
2 |
1230mm |
|||
The spacing between vertical wire:
|
2 |
1430mm |
||
3 |
1630mm |
|||
3 |
1830mm |
|||
Reforced folds: 100mm, 200mm |
4 |
2030mm |
||
4 |
2230mm |
|||
4 |
2430mm |
Fence panel |
Material |
Low carbon steel wire |
Wire diameter |
3.0mm-6.0mm |
|
Opening(mm) |
50x100, 50x150,50x200,75x150,75x200 |
|
Height |
0.8-3M |
|
Width |
2-3M |
|
Panel type |
with or without curves are both available |
|
Fence post |
Square post |
40x40mm,50x50mm,60x60mm,40x60mm |
Round post |
40-60mm |
|
Peach post |
50x70mm, 70x100mm |
|
Post thickness |
1.2-2.5mm |
|
Post height |
0.8-3.5M |
|
Post base |
with or without the base flangle are both available |
|
Post fittings |
post clips with bolts and nuts ,post rain post |
|
Fence finishing |
Hot -dipped galvanized |
|
PVC powder spraying coated or PVC powder dipped coated |
||
Galvanized +PVC powder spraying/ dipped coated |
||
Packing |
1. with pallet; 2. bulk in container |
|
The customization is also available |
||
Specification of Square post |
|
Size |
40* 50mm.40*40mm, 50* 50mm,60*60mm,80*80mm |
Thickness |
1.2mm, 1. 5mm, 2.0mm. |
Height |
1800mm,2100mm,2300mm,2500mm or as your request |
Surface Treatmenq |
Hot -dipped galvanized, PVC, hot galva nized+PVC |
clips |
Plastic clip, metal clip |
Metal Mesh Fencing Packing:
1.Metal Mesh Fencing: plastic film / wooden case + metal/wooden pallet.2.Fence post: plastic bag + metal/wooden pallet (with rainhat
installed).
3.Fence accessories: plastic bag + carton box (clips & screws).
Accessories come in different types and materials and can be selected as needed.No special attachment for piping installation, use
propulsion device, easy to grip, fast, reduce cost.
Metal Mesh Fencing Application:
1.Material:Low carbon steel wire and other materials
2.Process: Made through weaving, punching and welding.
3.Application:Fencing and protection for road, railway, airport, residence district, seaport, garden, feeding and husbandry
4.Product Features:Corrosion resistant, age resistant, sunshine proof, weather proof.
5.Corrosion Form:Electric galvanized, Hot-dipped galvanized after welded, Powder coated, PVC coated
![]()
