316 Grade Stainless Steel Welded Mesh 5mm Wire Diameter 2.4 X 1.2m Sheet Size
Price:
USD1.85-2.35/m2
MOQ:
1000m2
Delivery Time:
5-7days
Brand:
X MESH
Product Description
316 Grade 5mm Wire Diameter 2.4 x 1.2m Sheet Size Stainless Steel Welded Mesh
Stainless Steel Welded Mesh Introduction:

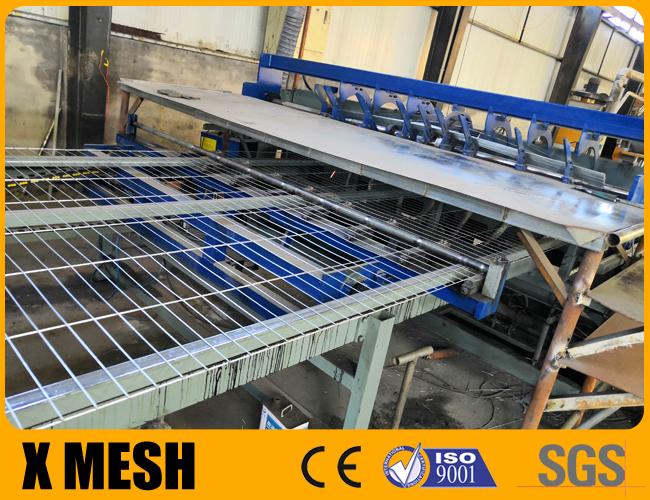

Stainless steel welded mesh is manufactured by the longitudinal and transverse wires being resistance welded together.
We stock stainless mesh in both 304 and 316 grades. All our welded mesh rolls come in 30 metre lengths but we're happy to cut lengths to your exact requirements. We won't force you to purchase more than you need.
Product Name |
Stainless Steel Welded Mesh |
Weight |
12.4kgs |
Grade |
316 |
Wire Diameter |
5mm |
Mesh Size |
50 x 50mm |
Length |
2400mm |
Width |
1200mm |
Application |
For Chemical Industrial |
Packing |
Pallet/Wooden Case |
Type |
Sheet |
Stainless Steel Welded Mesh Specification:
Grade |
Length |
Width |
L/W Spacing |
C/W Spacing |
L/W Diam |
C/W Diam |
Weight (kg) |
304 |
2.4m |
1.2m |
25mm |
25mm |
2.5mm |
2.5mm |
9.02 |
304 |
2.4m |
1.2m |
50mm |
25mm |
3.15mm |
3.15mm |
10.79 |
304 |
2.4m |
1.2m |
50mm |
50mm |
3.15mm |
3.15mm |
7.27 |
304 |
2.4m |
1.2m |
50mm |
50mm |
4mm |
4mm |
11.72 |
304 |
2.4m |
1.2m |
50mm |
50mm |
5mm |
5mm |
12.4 |
304 |
2.4m |
1.2m |
50mm |
75mm |
5mm |
5mm |
15.35 |
316 |
2.4m |
1.2m |
25mm |
25mm |
2.5mm |
2.5mm |
9.02 |
316 |
2.4m |
1.2m |
50mm |
50mm |
3.15mm |
3.15mm |
7.27 |
316 |
2.4m |
1.2m |
50mm |
50mm |
4mm |
4mm |
11.72 |
316 |
2.4m |
1.2m |
50mm |
50mm |
5mm |
5mm |
12.4 |
Stainless Steel Welded Mesh Feature:
✔️ Minimal maintenance
✔️ Strength
✔️ Long term life cycle and performance
✔️ Low environmental impact
Stainless Steel Welded Mesh Application:
Industrial Wire Mesh panels used for various applications such as guards, covers, trailers, cages and fences. Also available in Zinc Aluminium, please enquire. Minimun order quantity applies.
