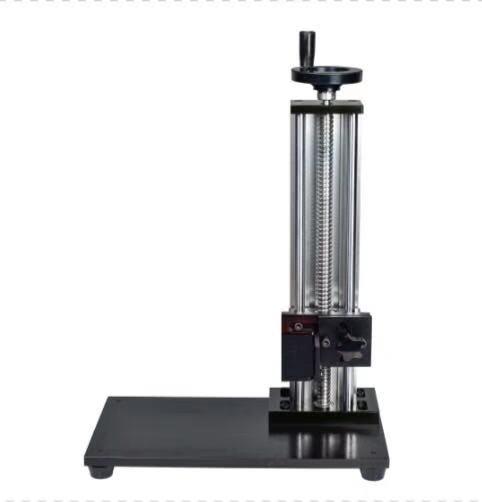

Roughness Test Platform (Cast Iron) JH-200

1 Overview:

The roughness meter platform is one of the main accessories of the portable roughness measuring instrument. It is suitable for various domestic hand-held roughness meters TR200, TR210, NDT150, etc., and provides a high-precision measuring platform and column lifting system for it, which can be easily Adjusting the instrument will greatly reduce the operating difficulty of the instrument, especially when measuring high-precision parts, the effect will be more obvious. This product is also suitable for users who use roughness measuring instruments from other manufacturers (including foreign manufacturers), but a special connection part needs to be customized. Of course, special users for other purposes are not excluded. For special sensors, this set of accessories must be used to make complex and precise adjustments.

2. Names of each part:

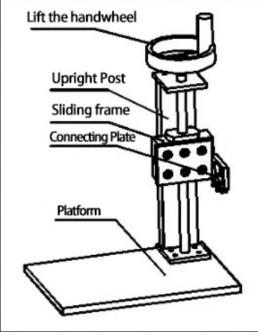

                                              Figure 1 Name of each component

3.Connection plate size:

Figure 2

4.Maintenance:

1. Frequent cleaning and rust prevention;

2. Don't forcefully move the carriage sideways;

3. When moving, do not move the column directly, but move the platform to prevent the column from loosening and positioning errors.

5. Technical parameters:

1. Lifting height: 200 ± 1 mm;

2. Return error: not more than 1/6 turn of the handwheel;

3. Measurement platform size: 260mm×180mm×20mm.

Features: Column lifting and return stroke difference is very small, the column lifting is light and flexible, the positioning accuracy is accurate and reliable

6.Standard configuration:

Remarks: Various customization requirements can be provided to suit the various types of roughness measuring instruments of various manufacturers.
