4 Samples Metallographic Mounting Press 4KW 220V

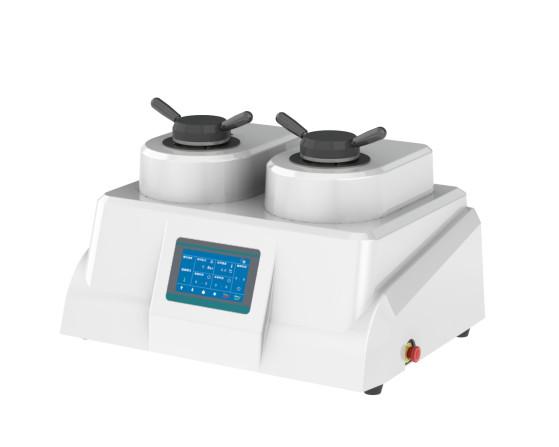

HYXQZ-2 Automatic Metallographic Specimen Mounting Machine
1.Product overview
Metallographic specimen inlay is a very important step in the process of metallographic specimen preparation. It is especially suitable for some tiny samples which are difficult to handle or have irregular shape, easy to hand or follow-up automatic grinding and polishing (can be used with the company's automatic grinding and polishing machine, the effect is better.). It is especially suitable for specimens with edge protection or with automatic grinding and polishing. The inlaying of specimens is an essential working procedure. It is especially suitable for metallographic laboratories in factories, colleges and universities and scientific research institutions, it is the best choice for metallographic sample inlay.
2.Main functions and features
1,The shell adopts high-end ABS one-piece forming, with novel appearance and high-end atmosphere.
2,Touch screen display control, clear and intuitive interface, easy to operate.
3,Using high-end precision hydraulic, mute technology, the whole working process noise-free
4,The whole process is fully automatic closed-loop control, only one key to automatically complete all the mosaic process.
5,With cooling system, cooling faster, more efficient mosaic, cooling mode can choose time cooling mode, set the cooling time, when the automatic stop, can also choose temperature cooling mode, set the cooling temperature, to achieve automatic stop temperature.
6,A variety of mold specifications optional, special mold can be customized according to customer needs.
7,Manual operation can be automatic operation, according to customer needs can be arbitrary DIY operation, more flexible and convenient to use.
8,Can store more than 100 sets of MOSAIC PROCESS FORMULA, easy to quickly call, to achieve serial production.
9,According to customer needs to meet customer customized needs, all-round one-stop service.
10,Four samples can be embedded at the same time, so that the mosaic efficiency doubled in an instant
11,Program built-in Intelligent Algorithm, can choose time mode and intelligent mode (especially suitable for first-time users).
3.Technical parameter
| Name | Parameters |
| Die Specification | Double Barrel Standardφ30(Matching:φ22,φ45),Degree Centigrade |
| Effective depth of die | 70mm |
| Heating Power | 4KW |
| Afterburner mode | Hydraulic pressurization |
| System pressure | 0-300Bar |
| Temperature setting range | 0-60Bar |
| Pressure setting range | 0-200Degree Centigrade |
| Cooling setting range | 0-99Minutes |
| Mosaic time | 0-99Minutes |
| Suitableformosaic material | 5In minutes(From heating to 155 degrees to cooling to 40 degrees, black inlay, inlay thickness within 20 mm) |
| Power supply | Thermoplasticity and thermoset |
| Total power | Voltage:220V Voltage:50HZ |
| Contour dimension | 4.5KW |
| Weight | 760X580X550 |
| Temperature setting range | 95KG |
4.Configuration list
| Product accessories | Unit | Quantity | Notes |
| Φ30Die Assembly | 1 | One | Has Been installed on the device |
| MOSAIC (black) | 500 | Michael | |
| Feeding Spoon | 1 | One | |
| Funnels | 1 | One | |
| Brush | 1 | One | |
| Intake pipe | 1 | Root | 6Split interface |
| Outlet Pipe | 1 | Root | |
| Technical Documentation | 1 copy of product description 1 Certificate of conformity | ||
