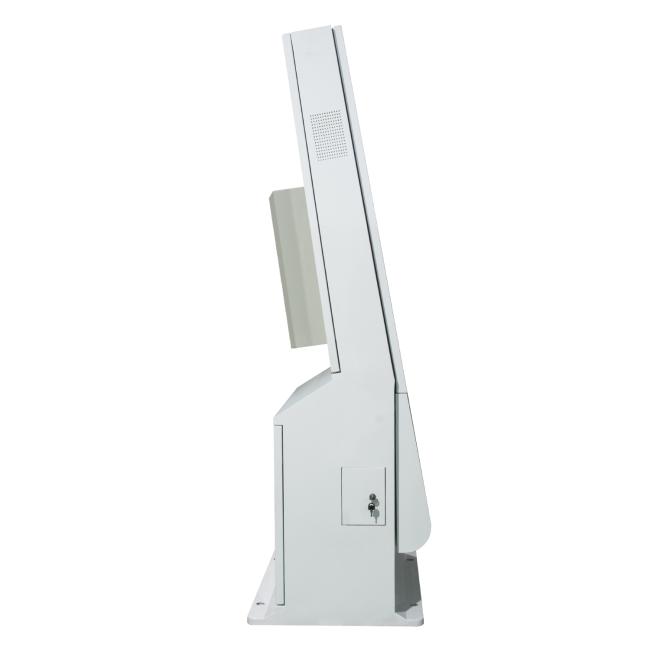

43 inch outdoor lcd windows capacitive touch screen digital signage with printer
43 inch outdoor lcd windows capacitive touch screen digital signage with printer
Specification:
Built-in QR code scanning, A4 color printer, with air conditioning
| Panel Specification-- live video display | |
| Model Number | WW-SN-4304 |
| Panel Size | 43 inch |
| Display area | 529.4*941.2 MM |
| Brand | Samsung/Auo A grade new panel |
| Resolution | 1920*1080 |
| Display Color | 16.7M |
| Pixel Pitch | 0.4835(H)*0.4835(V)mm |
| Brightness | 360cd/m*2 |
| Back Light | LED |
| Aspect ratio | 16:09 |
| Response time | 6.5MS |
| Contrast | 4000:01:00 |
| View angle | 178°/178°(H/V) |
| Life time | >60,000 hours |
| Video Specification | |
| Resolution | Max 1080P HD |
| Video Format | RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV, MP4 etc |
| Audio Format | MP3, WMA, APE, Flac etc |
| Picture Format | JPG, BMP, GIF etc |
| Input Function | |
| Multi touch(Infrared/Resistance/Capacitive) | Support |
| Remote control | Support |
| USB Mouse/Keyboard | Support |
| Output Function | |
| Horizontal/Vertical Showing Mode | Support |
| 1080P HD Dot to Dot oIutput | Support |
| LVDS/HDMI/VGA/AV | Support |
| Advantages | |
| Time Switch | Turn on/off automatically |
| Rolled Text | Showing on the bottom of the panel |
| Calendar | Support |
| Weather | Support |
| Logo | Support |
| Splicing Screen | Support Video/photos/rolled text/weather/Calendar/logo showing in the same screen at the same time |
| Android Board Specification | |
| Processer | Cortex-A8 1.5GHZ |
| Mainboard | Allwinner A20 |
| RAM | 1GB |
| Flash Memory | 4GB |
| HDMI | 1 |
| USB | 1 |
| Network | Ethernet RJ45, 10M/100M |
| Audio | built-in HD audio 8(Realtek ALC888) audio system |
| Operating System | Android 4.2 System |
| WiFi model | Support 802.11N Home using Version |
| OSD Language | |
| Menu Language | Chinese, English, Spanish, Russian, German, French, Arabic, etc. |
| Environment | |
| Working Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Working Humidity | 20%-80% |
| Storage humidity | 5%~95% |
| Power | |
| Power Supply | DC +12V |
| Maximum power consumption | 4.5W |
| Standby power consumption | 1W |
| Appearance | |
| Dimension | 1850(H)mm*640(W)mm*90(D)mm |
| NetWeight | 70kgs/pcs |
| Color | White, Black, Silver, Golden, Customize based on Pantone number |
| Material | Cold Rolled Steel, Aluminum, Stainless Steel |
| Installation | Floor standing or mounted on the Floor |
| Certificcates | CE/FCC/ROHS/C-TICK/BV/SASO |
| Accessories | CD, Screws, Keys, Power Cable, Warranty Card, User Manual |
| Package | |
| Package Step | Foam+Carton box+Wooden box |
| Package Dimension | 215*28*105cm/pcs/wooden box; |
| 215*49*105cm/2pcs/wooden box | |
| Gross Weight | 110kgs/pcs/wooden box; |
| 180kgs/2pcs/wooden box | |
Features:

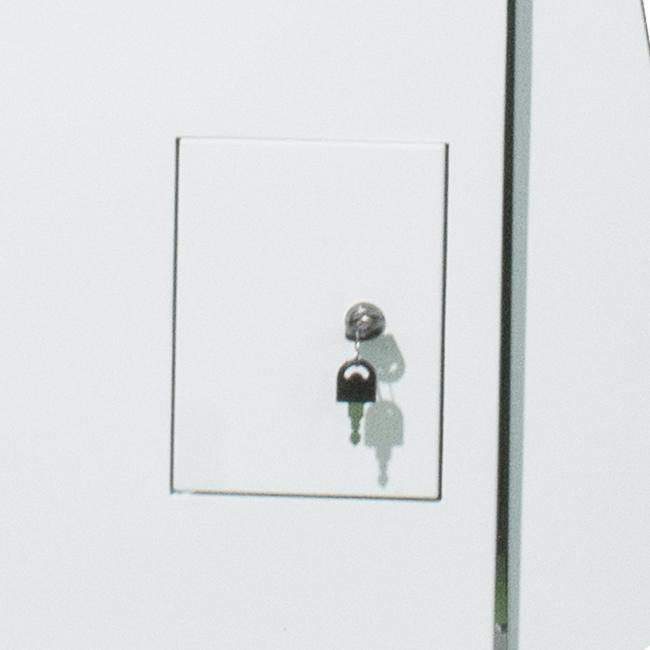

1, Anti-theft lock doorThe door lock is three-levelprotection, the machine screwhidden design, no exposedremovable screw, security andanti-theft.
2, True 10 point lR touch, can touch it with finger, pen, oranything that blocks light, fast response, strong anti -interference.
3, Full Function, assorted the function forsystem management, publicdata searching,multi-mediateaching, exhibition andshow,office, industrial control, real estate presell,menu or song order etc. , users can change the different modes freely andautomatically, free guidelink approchable.
4, Easy operation search by touch, notraining required
