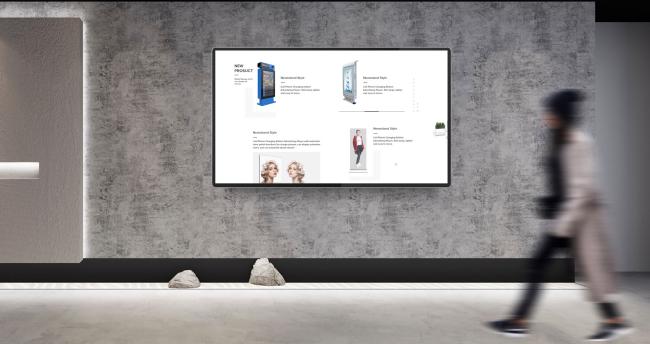

indoor lcd screen resolution 1920*1080 android network version wall mounted digital signage
indoor lcd screen resolution 1920*1080 android network version wall mounted digital signage
1. We have everything you want: smart split screen, automatic loop, high-definition screen, function customization, remote publishing, built-in WIFI cloud intelligent management, built-in speaker
2. Cloud intelligent publishing is easier: computers and mobile phones are updated and published at any time, multi-terminal login, cloud management, real-time monitoring, and material publishing (1. Login account 2. Create program 3. Save and send)
3. Only split screen and play as you wish: multiple split screen modes simultaneously display video images to meet the needs of different customers.
4. Simple operation, built-in wireless wifi network.
| Panel parameter | Size | 49'' screen | |||
| Display area | 604*1073.8mm | ||||
| Resolution | 1920*1080 | ||||
| Brightness | 400cd/m*2 | ||||
| Color | 16.7M | ||||
| Aspect ratio | 16:9 | ||||
| Response time | 6.5MS | ||||
| Contrast | 4000:1 | ||||
| View angle | 178°/178°(H/V) | ||||
| CPU | HD video and audio decoder chip | ||||
| Mainboard | 40A | ||||
| System Ram | DDR3 1Gbyte | ||||
| System Rom | NAND FLASH 8Gbyte | ||||
| IO connectors | 1 x USB host,1 x USB OTG,1 x serial Port,1 x I2C Interface,1 x LVDS Interface ,1 x stereo Audio Out | ||||
| Storage | USB/SD card | ||||
| Decoding resolution | MAX 1080P | ||||
| Audio | built-in HD audio 8(Realtek ALC888) audio system | ||||
| Video format | MPEG1,MPEG2,MPEG4,H.264,WMV | ||||
| Audio format | MP3 | ||||
| Photo format | JPEG,BMP,PNG | ||||
| wifi | yes | ||||
| OS | Android 5.1+ | ||||
| OSD Language | Chinese, English,etc. | ||||
| Play Mode | Supports loop playback, timed playback and other multi-player mode | ||||
| Environment | Operating Temperature :0°C to 40°C Storage Temperature :-20°C to 60°C Humidity:20%-80% RH at 40°C, |
||||
| System Power Supply | AC 110V~240V,50/60HZ | ||||
| Power cord | Yes | ||||
| Case | Cold rolled steel with powder coating+ toughened glass surface | ||||
| Standard operation software | free | ||||
| Spare part | user manual,operation software | ||||
