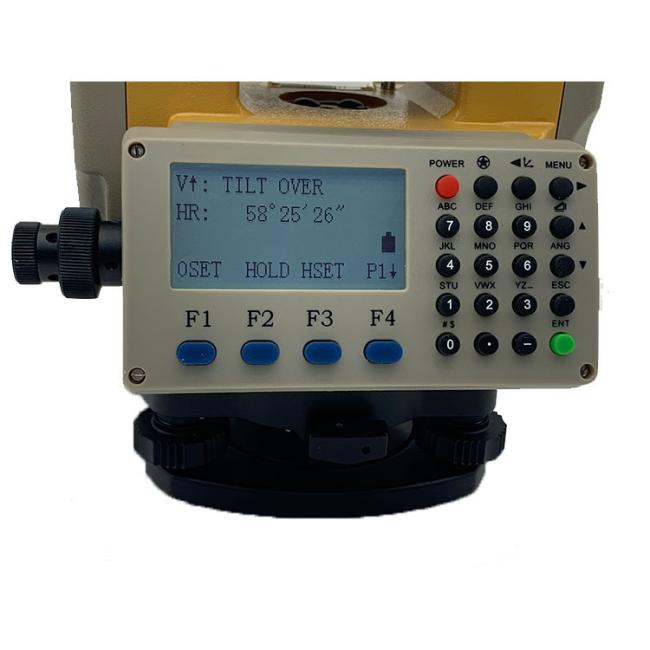

450M Total Station Survey Equipment Reflectorless For Construction Measuring

Name: 450M Total Station Survey Equipment Reflectorless For Construction Measuring
Brand: Foshan Baichuang Technology Limited

Price Negotiable

Price: Negotiated

MOQ: 200 pcs

Delivery Time: About 15 Days After Receiving The Deposit(Based On The Quantity)

Brand: BCTEK

Product Description

Total Station 450M Reflectorless Total Station Measuring Distance For Constuction Use

Product Description

DTM152M Total Station uses the newest Topcon GTS102N operating system which is very friendly use for technicians and engineers.

Double batteries can satisfy the long time using.

Double strong hardboard plastic package can protect the instruments during the shipping.

Complete programs which can satisfy your daily survey work.

Models and technical parameters		DTM-152
Distance	without prism	300m/500m
	With prism	sigle prism 3000m,Triangular prism5000m
Accuracy	without prism	±(5mm+3ppm·D)
	with prism	±(2mm+2ppm·D), ± (3mm+2ppm·D)
unit		(m)/(ft)
Display	max	99999999.9999m
	min	0.1mm
Normal measurement		1'(normal)0.8'(quick)
Measurement time		1~99
Angel measurement
Angle measurement mode		absolute angle encoder system
Diameter		79mm
minimun reading		1''
TEST	Horizontal scale	pair-radius reading
	Vertical scale	pair-radius reading
Accuracy		2''
Telescope
Imgaing		Erect
Tube length		170mm
Objective aperture		48mm
Magnification		30X
Field of view		1.5°
Resolution		3.5''
Minimum of focusing distance		1.5m
Compensation
system		Single /dual spindle
Conpensation range		±3'
resolution		1''
Dispaly
type		Double LCD display
Date transmission
Interface		USB,RS-232C
Storage		40,000 POINTS
Other
Device		optical/laser
Power		Rechargeable lithium battery,DC7.4V,4000mAh
Continuous-time		8 hours
Size		174X207X383mm
Weight		6.8kg
Working temperture		-20℃~50℃
