333kVA Single Phase Pole Mounted Distribution Transformer 14.4kV/7.2kV Dual Primary Voltage to 480V
Price:
$1000-$10000
MOQ:
1unit
Delivery Time:
30days
Brand:
WINLEY
Product Description
333kVA Overhead Distribution Transformer Single Phase 14.4-7.2kV to 480V for North American Power Systems

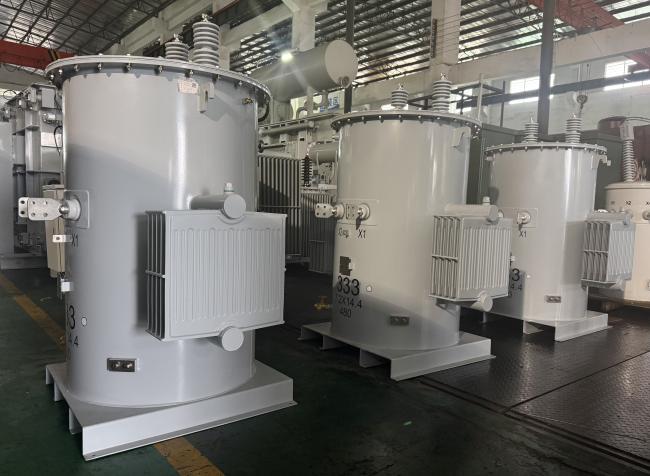

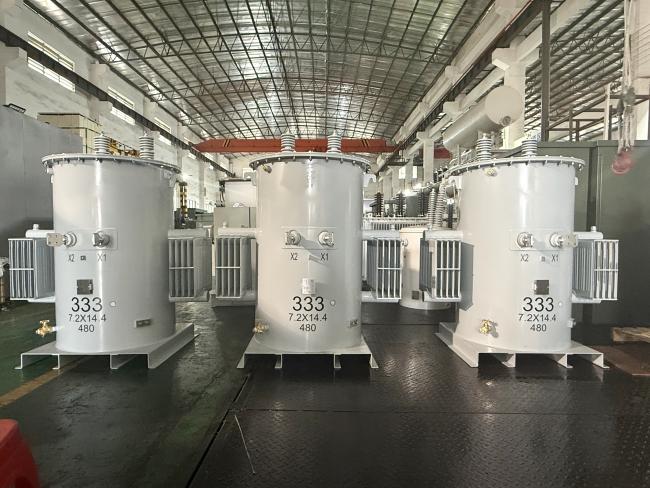

Product Photo
Why Choose Us
- 18 Years Expertise — ANSI, IEEE, CSA, DOE compliant.
- UL/cUL Certified — Ready for North American market.
- 2-Year Warranty — Technical support & after-sales support available.
- Fast Delivery — 600+ units/month, 7-35 days.
- Global Track Record — 10,000+ units worldwide, -40°C to 50°C.
- Custom Design — OEM/ODM welcome.

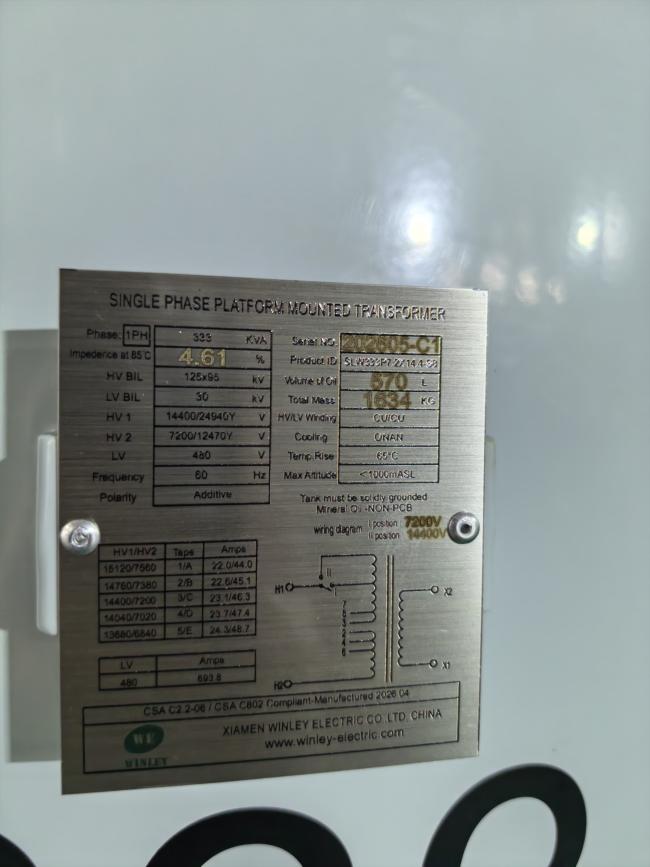

Main Data
| Transformer Type | Overhead Distribution Transformer, Conventional Type |
| Phase | Single Phase |
| Capacity | 333 KVA |
| Primary Voltage | 24940GrdY/14400V & 12470GrdY/7200V |
| Secondary Voltage | 480V |
| Frequency | 60 Hz |
| Temperature Rise | 65°C |
| Insulation Rating | Class A |
| Cooling Class | ONAN |
| Impedance (@ 85°C) | 4.61% |
| Efficiency Standard(s) | Meets DOE Standards, Meets CSA C802.1, Meets ANSI C57.12.20 |
| Winding Material | Copper |
| Dimensions(H×D×W) | 1700×1300×1900 mm |
| Total Weight (Liquid Filled) | 1634kg |
| Efficiency | 99.43% |
| No Load Loss | 460 W |
| Full Load Loss (85°C)) | 2012.2 W |

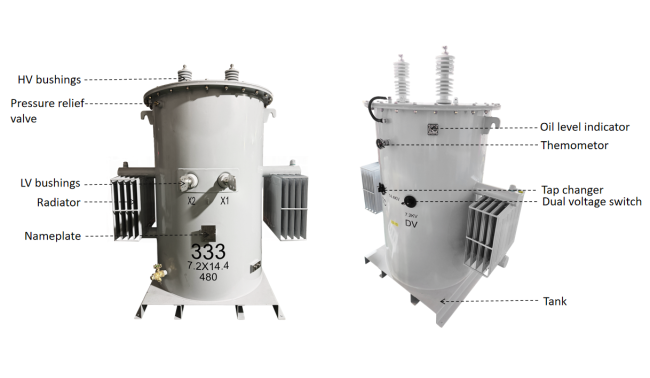

Technical drawings
Standard Features
- 333kVA High-Capacity Overhead Distribution
Single-phase pole-mounted design for 24940GrdY/14400V & 12470GrdY/7200V to 480V power conversion, ideal for residential, rural, and light commercial utility networks. - Full North American Compliance
Tested per ANSI C57.12.20, fully meets CSA C802.1 and DOE efficiency standards for utility-grade safety and performance validation. - Robust Liquid-Filled Construction
Conventional-type overhead design with ONAN self-cooling, built to withstand harsh outdoor weather and extreme temperature conditions. - Dual High Voltage Primary Design
Flexible dual voltage primary configuration (14.4kV/7.2kV) for versatile grid connection applications. - Premium Copper Windings
High-purity copper windings with grain-oriented steel core for low loss, high efficiency, and long-term operational reliability. - Pressure-Sealed Tank Technology
Advanced pressure-sealed tank design reduces maintenance requirements and extends service life. - Mineral Oil Insulation
Non-PCB mineral oil insulation for excellent thermal stability, fire resistance, and long service life in overhead environments. - Flexible Termination Design
Tin-plated primary and secondary terminals compatible with both copper and aluminum conductors, simplifying field installation.
Applications
| Sector | Applications |
| Residential | Neighborhoods, housing developments, apartments |
| Agricultural | Farms, irrigation systems, rural electrification |
| Commercial | Retail stores, offices, community buildings |
| Utility | Distribution networks, street lighting, remote power |
| Infrastructure | Construction sites, temporary power |
Specifications
| Rated Capacity (kVA) |
High voltage (kV) |
No Load Loss (W) |
On load Loss (W) |
Height (mm) |
Depth (mm) |
Width (mm) |
Weight (kg) |
| 15 kVA | 34.5/19.92 13.8/7.96 13.2/7.6 12.47/7.2 or others |
50 | 195 | 840 | 740 | 610 | 294 |
| 25 kVA | 80 | 290 | 840 | 740 | 610 | 362 | |
| 37.5 kVA | 106 | 360 | 840 | 760 | 610 | 476 | |
| 50 kVA | 135 | 500 | 840 | 810 | 610 | 553 | |
| 75 kVA | 190 | 650 | 840 | 860 | 610 | 672 | |
| 100 kVA | 280 | 1010 | 910 | 1200 | 965 | 714 | |
| 167kVA | 435 | 1530 | 1000 | 1200 | 965 | 913 | |
| 250 kVA | 550 | 2230 | 1250 | 1300 | 1430 | 1106 |
Production Process
