8000kVA 34.5kV/480V Three Phase Substation Power Transformer ONAN Oil Immersed ANSI IEEE Standards

Price Negotiable
Price: $1000-$150000
MOQ: 1unit
Delivery Time: 90days
Brand: WINLEY
Product Description
8000kVA 34.5kV/480V Three Phase Substation Power Transformer ONAN Oil Immersed
The 8000kVA 34.5kV/480V three-phase oil immersed substation transformer features a dual low-voltage split winding design (8000/4000-4000kVA), ideal for large-capacity power distribution, renewable energy integration, and industrial use. It improves electrical isolation, limits short-circuit current, and enhances system stability and safety. With aluminum alloy radiators, it ensures efficient cooling, lower weight, and strong corrosion resistance. It is widely used in solar power plants, energy storage systems, manufacturing plants, and utility substations.

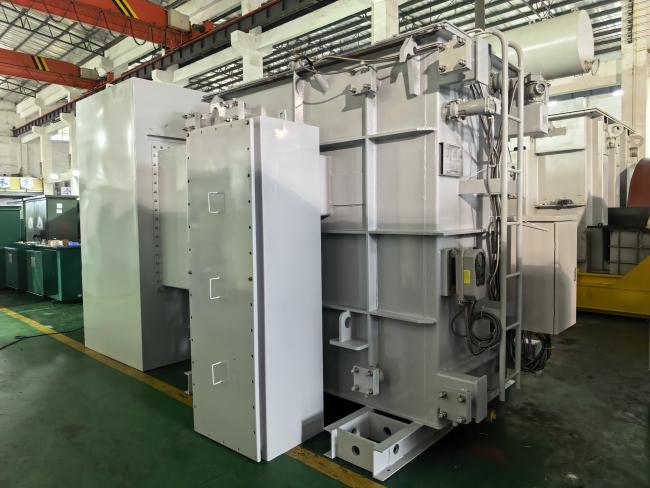

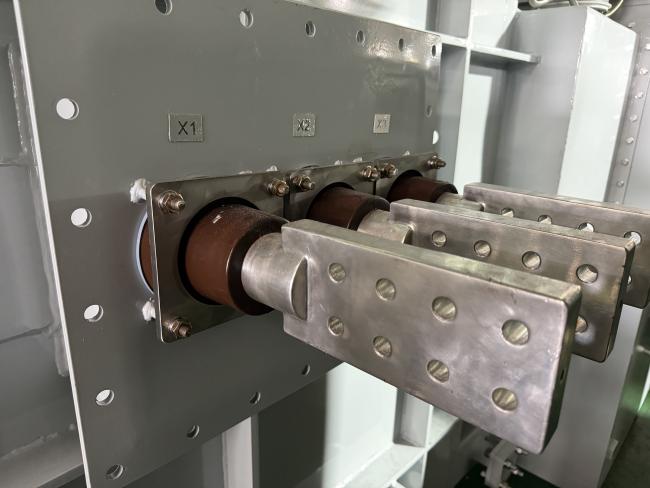

Product photos

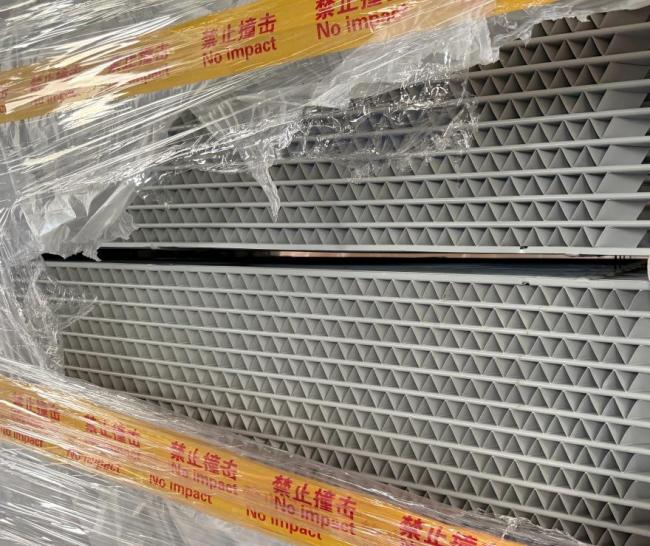

Aluminum alloy Radiators

Main Data
Transformer Type  Substation Power Transformer, Hermetically Sealed Type
Transformer Configuration  Liquid Filled Pad Mounted
Feed Type  Radial Feed
Phase  Three Phase
Capacity 8000 kVA
Vector Group  YNd1
Cooling Class  ONAN; Self-Cooled
Radiator Material    Aluminum Alloy
Primary Voltage  34500Y/19920
Secondary Voltage  480V x 480V
Frequency  60 Hz
Temperature Rise  65°C
Insulation Rating  Class E Insulation - 120°C, 248°F
Winding Material  Cooper
Efficiency %  99.41%
No Load Loss (in watts)  2,200 Watts
Full Load Loss (in watts) at 100%  23,450 Watts
Dimensions*  83-L x 75-D x 75-W
Total Weight (Liquid Filled)*  31,900 lbs



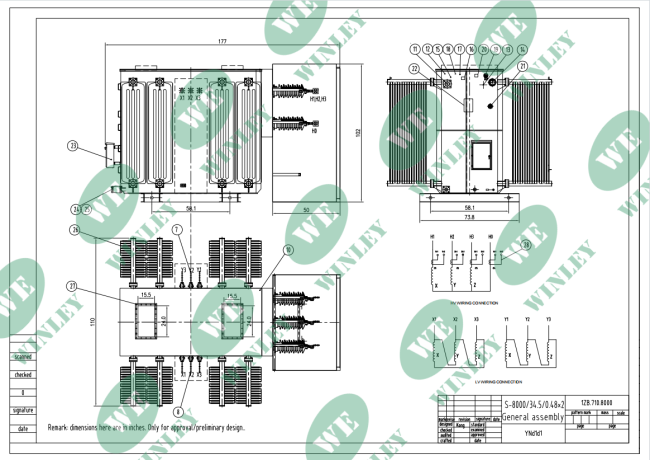

Technical drawings


Standard Features

  • High-Capacity Design - 8MVA three-phase substation transformer for 34.5kV to 480V step-down conversion, ideal for industrial and utility applications.
  • North American Compliant - Fully meets ANSI C57.12.00, CSA C802.1 and DOE 2016 efficiency standards.
  • Ultra-High Efficiency 99.41% - Achieves 99.41% efficiency at 50% load with only 2,200W no-load loss for significant energy savings.
  • Dual Secondary Windings - 480V x 480V dual secondary configuration supports flexible applications including 12-pulse rectifier and dual-load feeds.
  • Premium Copper Windings - High-purity copper windings on both HV and LV sides ensure superior conductivity and low temperature rise.
  • Complete Protection Package - Factory-installed lightning arresters (36kV), current transformers, pressure relief device, and temperature gauges.
  • Aluminum Rolly Radiator - High thermal efficiency, lightweight design, and corrosion resistance.


Applications


Sector Applications
Indusrial Manufacturing plants, heavy machinery, assembly lines
Utility Distribution substations, power grid, renewable energy farms
Commercial Large office buildings, hospitals, data centers
Infrastructure Airports, railway systems, water treatment



Substation Transformer Specification
