5000kVA Three Phase Oil Immersed Substation Power Transformer 33kv/13.8kV ANSI IEEE Standards
Price:
$1000-$150000
MOQ:
1unit
Delivery Time:
90days
Brand:
WINLEY
Product Description
5000kVA Three Phase Oil Immersed Substation Power Transformer 33kv/13.8kV ANSI IEEE Standards
This 5 MVA 33kV/13.8kV oil-immersed power transformer is designed for medium-voltage substations, industrial distribution systems, and grid interconnection projects. Rated at 5,000 kVA with up to 5,600 kVA short-time overload capacity, it provides stable voltage conversion and reliable load handling for applications with fluctuating demand and peak-load operation.

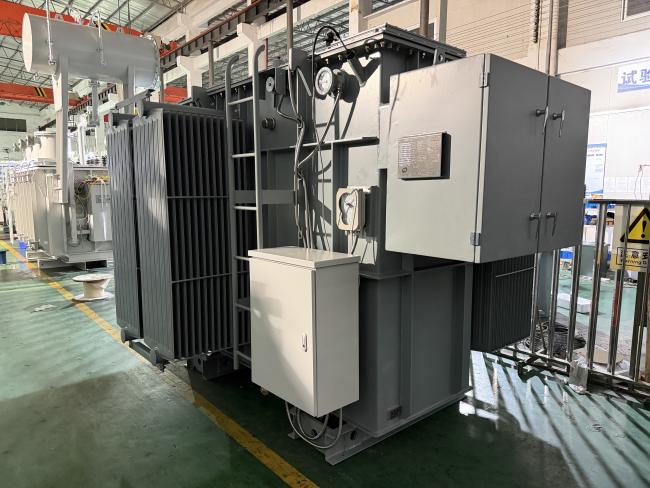

Product photos

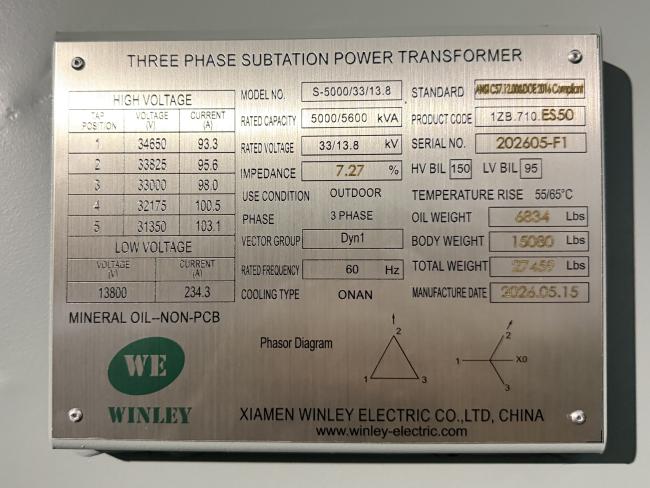

Main Data
| Item | Data |
|---|---|
| Type | Substation type |
| Rated capacity | 5000/5600kVA |
| Phase | 3 |
| Primary voltage | 33000V |
| Secondary voltage | 13800Y/7970V |
| Cooling method | ONAN |
| Rated frequency | 60Hz |
| Vector group | Dyn1 |
| Insulation class | A |
| Temperature rise | 55/65℃ |
| Off-load loss | 4200W |
| On-load loss (85℃) | 47000W |
| Impedance | 7.0–8.0% |
| Winding material | Copper |
| Tank & enclosure | NEMA 3R coated steel |
| Dimension | 133 × 140 × 117in (L × W × H) |
| Weight | 28500lbs |
| Sea level | ≤1000m |

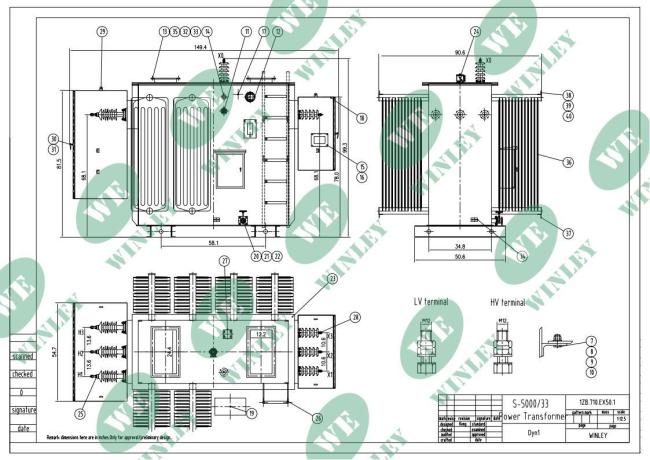

Technical drawings
Standard Features
- Dual-Capacity Rating
Rated at 5000 kVA for continuous operation, with 5600 kVA thermal capacity margin for short-time peak load conditions. - 33kV to 13.8kV Step-Down
Designed for stable medium-voltage power distribution in substations, industrial plants, and grid connection projects. - ANSI C57.12.00 Compliant
Designed and factory-tested according to ANSI C57.12.00 requirements. - ONAN Cooling
Natural oil and air cooling supports reliable outdoor operation with lower maintenance needs. - Dyn1 Vector Group
Suitable for common three-phase medium-voltage distribution systems. - Non-PCB Mineral Oil
Provides reliable insulation performance and supports safer transformer operation. - Outdoor Substation Structure

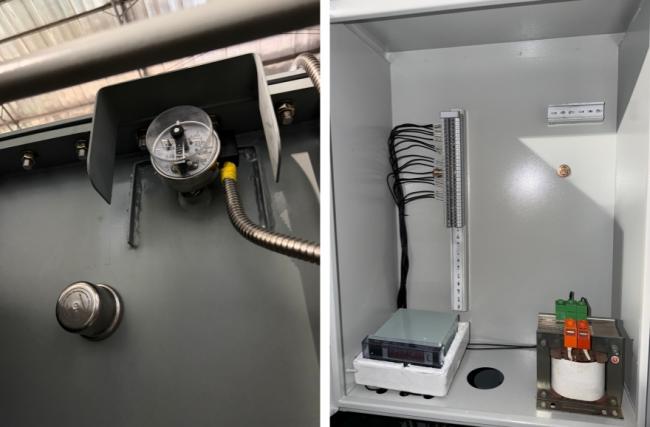

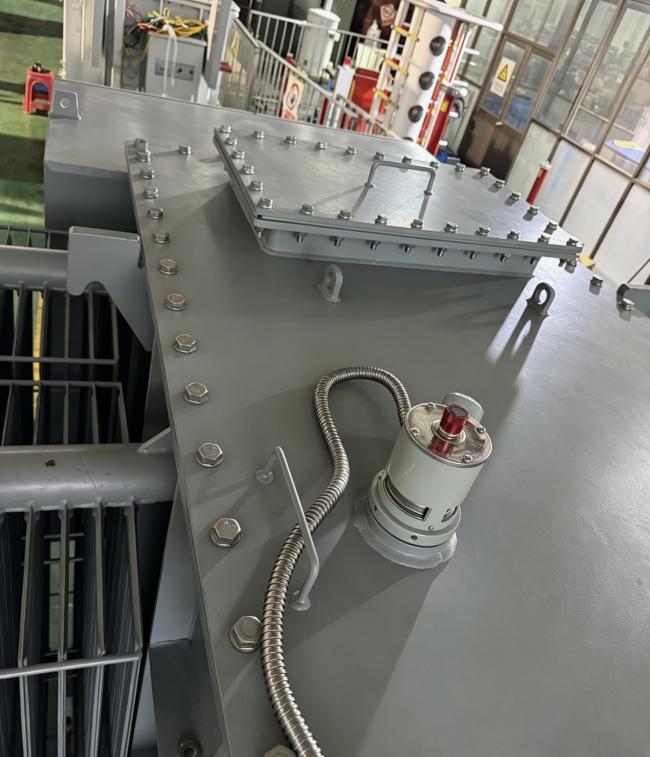

Equipped with radiators, HV/LV bushings, oil level indicator, pressure relief device, drain valve, grounding pads, and lifting plates.
Applications
|
Sector
|
Applications
|
|
Industrial
|
Manufacturing plants, heavy machinery, assembly lines
|
|
Utility
|
Distribution substations, power grid, renewable energy farms
|
|
Commercial
|
Large office buildings, hospitals, data centers
|
|
Infrastructure
|
Airports, railway systems, water treatment
|
Substation Transformer Specification
| kVA | HV | LV | Width(mm) | Length(mm) | Height(mm) |
|---|---|---|---|---|---|
|
315kVA
|
11000V
|
400V
|
800
|
696
|
1336
|
|
500kVA
|
27600V
|
480GrdY/277V
|
1730
|
2300
|
1510
|
|
500kVA
|
11000V
|
415V
|
1700
|
1700
|
1650
|
|
750kVA
|
11000V
|
433V
|
1850
|
1845
|
1465
|
|
1000kVA
|
14400V
|
415/240V
|
1085
|
1860
|
1570
|
|
1200kVA
|
13800V
|
240V
|
2450
|
1850
|
1820
|
|
1500kVA
|
24940V
|
600V
|
1800
|
1880
|
1895
|
|
2000kVA
|
7200V
|
600GrdY/346
|
1766
|
2680
|
1982
|
|
2000kVA
|
44000V
|
600V
|
1260
|
2090
|
1700
|
|
2500kVA
|
24940V
|
480GrdY/277V
|
2400
|
2200
|
2060
|
|
3000kVA
|
11000V
|
415V
|
1600
|
2330
|
1920
|
|
3000kVA
|
22800V
|
415/240V
|
2130
|
3500
|
1910
|
|
3750kVA
|
44000V
|
600V
|
2240
|
2650
|
2700
|
|
4000kVA
|
33kV
|
600Y/347
|
2150
|
3250
|
2290
|
|
5000kVA
|
34500V
|
7200V
|
3780
|
1850
|
3450
|
|
5000kVA
|
34500V
|
4160V
|
2799
|
2400
|
2938
|
|
6300kVA
|
35000V
|
400V
|
3520
|
2820
|
3470
|
|
6800kVA
|
34500V
|
800V
|
3400
|
2670
|
3400
|
|
7500kVA
|
27600Y
|
4160V
|
3350
|
3290
|
2270
|
