630T H Frame Hydraulic Servo Press small servo press For Forming

Price Negotiable

Price: Negotiable

MOQ: 1pcs

Delivery Time: In 60days

Brand: MEILI

Product Description

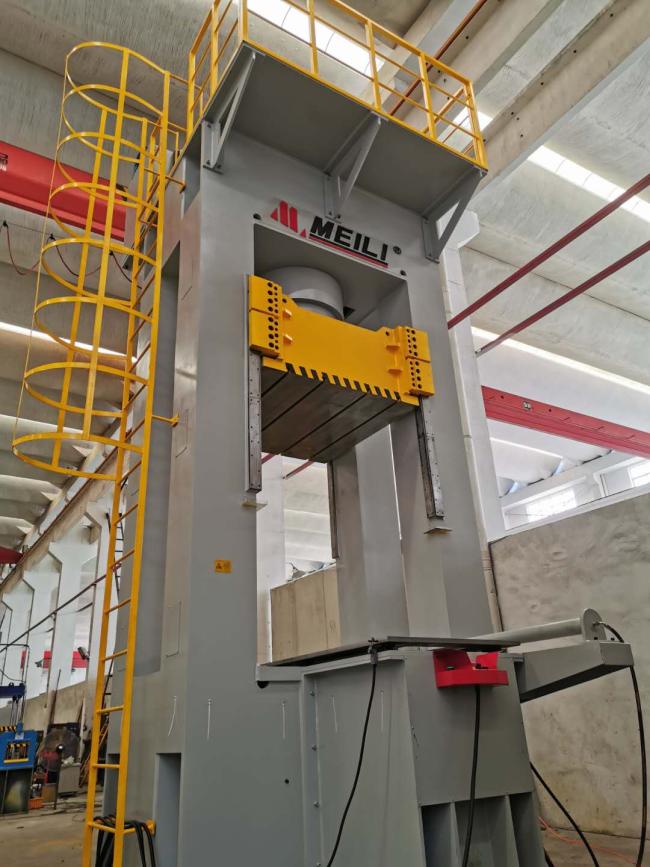

630T H Frame Servo Hydraulic Press for forming

Servo Features:

1. Energy saving with high effieciency. Servo motor driving system can achieve 30%-50% energy saving.

2. Low noise. Noise can be controlled below 70 decibels.

3. Longer system life by reducing heat and the number of components.

4. Elimination of cooling systems for fluids involved in the process.

5. High accuracy, flexbility and reliability, low power consumption, less maintenance.

OPTIONAL ACCESSORIES/FUCTIONS

Die lifters

Die clamps

Dowel holes

Slug holes

Moving platens

Die cushions

Ejectors

Specification		Unit	40T	63T	100T	160T	200T	315T	500T	630T	1000T	1250T	1600T	2000T
Nominal force		KN	400	630	1000	1600	2000	3150	5000	6300	10000	12500	16000	20000
Ejecting force		KN	63	100	250	250	400	630	1000	1000	1600	1600	2400	2400
Max working pressure of fluid		Mpa	22	25	25	25	25	25	25	25	25	25	25	25
Slider Stroke		mm	400	500	500	500	700	800	900	900	900	900	900	1200
Max opening Height		mm	600	700	900	900	1120	1250	1500	1500	1500	1500	1600	2000
Table Size	L-R	mm	500	580	710	900	900	1200	1400	1500	1500	1800	2000	3000
Table Size	F-B	mm	500	500	580	800	900	1200	1400	1500	1500	1600	1600	2000
Ejecting stroke		mm	120	160	200	200	250	300	350	350	400	400	450	450
Speed of slider	Idle stroke	mm/s	60	60	70	100	120	120	120	140	160	160	200	200
	Pressing	mm/s	40	8-15	8-15	8-15	8-15	8-15	8-15	8-15	8-15	8-15	8-15	8-15
	Returning	mm/s	80	70	70	80	90	90	90	100	120	120	120	120
Motor powder		KW	5.5	5.5	7.5	11	15	18.5	30	44	68	75	90	130
