Steel Electric Hydraulic Press Machine 220V 380V Accuracy 0.01mm
Electric hydraulic press for sale
Product Characteristics

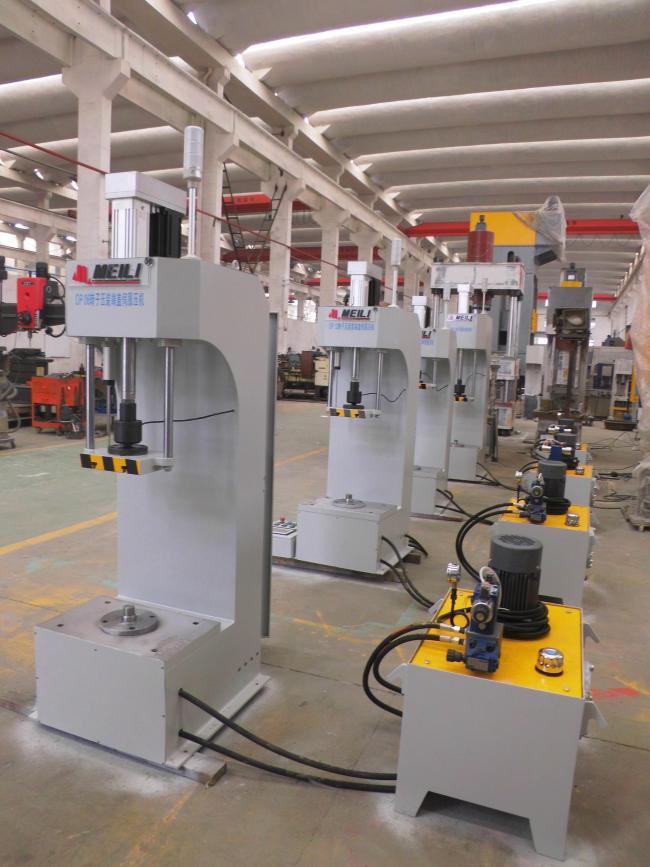

1. The fuselage adopts the traditional bow structure, which is similar to the traditional mechanical punch, with simple and compact structure, small floor area and convenient operation.
2. The master cylinder is a piston type oil cylinder with a fast cylinder inside, which can realize high-speed downward and slow pressing action. Improve production efficiency.
3. The oil cylinder is of upper oil cylinder type. When the stamping slider works, it is pressed from top to bottom, the lower die is stationary, and the upper die is pressed.
4. The upper part of the fuselage is equipped with precision positioning device, mechanical dead limit and servo adjustment device.
5. The precision positioning device is driven by servo motor. The positioning accuracy is 0.01mm.
| Description | Unit | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Nominal Force | T | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
| Table size | L-R | mm | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 500 | 600 |
| F-B | mm | 250 | 250 | 320 | 320 | 320 | 440 | 440 | 440 | 500 | |
| Max daylight | mm | 300 | 300 | 300 | 350 | 400 | 450 | 500 | 500 | 500 | |
| Stroke of slider | mm | 120 | 120 | 150 | 200 | 250 | 250 | 300 | 350 | 350 | |
| Down speed | mm/s | 0-80 | |||||||||
| Working speed | mm/s | 0-15 | |||||||||
| Return speed | mm/s | 0-80 | |||||||||
| Throat Depth | mm | 120 | 120 | 160 | 160 | 180 | 250 | 250 | 250 | 280 | |
| Operation Height | mm | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | |
| Powder of motor | KW | 1 | 2 | 2 | 3 | 4 | 5 | 7.8 | 11 | 20 | |
