MPPT 230V Output Solar Panel Hybrid Inverter 48V 5KW With Bluetooth Communication
Solar Panel Hybrid Inverter 48V 5KW with Bluetooth, Communication RS232 RS485 CAN, MPPT, 230V AC output, Solar Inverter Support 9 units in parallel (Max. 45kw)
| MODEL | SO-SIV-G4MKSC-48V5KVA-P | SO-SIV-G4VMC-24V3KVA |
| Rated Power | 5000VA/5000W | 3000VA/3000W |
| PARALLEL CAPABILITY | Yes, 9 units | NO |
| SOLAR CHARGER | ||
| Solar Charger Type | MPPT | MPPT |
| Maximum PV Array Power | 5000 W | 4000W |
| MPPT Range @ Operating Voltage | 120 ~ 430 VDC | 120 ~ 450 VDC |
| AC CHARGER | ||
| Maximum Charge Current | 100 A | 100 A |
| INPUT | ||
| Voltage | 230 VAC | 230 VAC |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% | 230VAC ± 5% |
| Efficiency(Peak) | 93% | 90% ~ 93% |
| Transfer Time |
15 ms (For Personal Computers) 20 ms (For Home Appliances) |
15 ms (For Personal Computers) 20 ms (For Home Appliances) |
| Waveform | Pure sine wave | Pure sine wave |
| BATTERY | ||
| Battery Voltage | 48 VDC | 24 VDC |
| PHYSICAL | ||

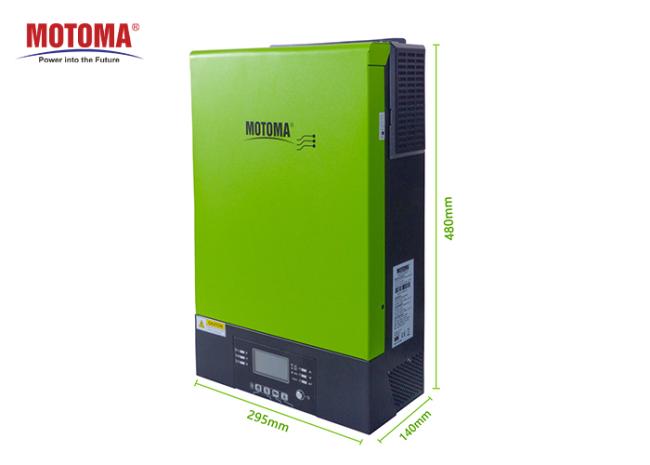

| Dimension, D x W x H (mm) | 140 x 295 x 468 | 115 x 300 x 400 |
| Net Weight (kgs) | 12.0 | 9.0 |
| Communication Interface | USB/RS232/RS485/Dry-contact/Bluetooth | |
Battery Parameters
Pure sine wave solar inverter
• Detachable LCD control module with multiple communications
• Wide DC input range
• Built-in Bluetooth for mobile monitoring (Android App is available)
• Supports USB On-the-Go function
• Reserved communication port for BMS (RS485)
• Smart battery charger design for optimized battery performance
• Battery independent function
• Parallel operation up to 9 units
Advantage:
Energy Storage Inverter
Support Bluetooth, Communication RS232 RS485 CAN
Support USB on-the-Go Function
Max. 9pcs in parallel (Max. 45KW)
Pure sine wave, MPPT
Wide DC input range
Application:
Home / Villa / Residential / Commercial / Industrial
Fridge, TV, Radio, PC, Printers and Lights
Application:
FAQ
1. Q: Is there a MOQ limit?
A: The MOQ is 5PCs per order.
2. Q: What's the normal lead time?
A: Normally it's 15-20 days, and if there is stock, the lead time would be much shorter.
3. Q: Can I get the samples for testing before place an order?
A: Yes, sample order is acceptable.
4. Q: Do you provide customized service
A: Yes, we have professional engineering team for design the inverter
