Bluetooth Communication Solar Hybrid Inverter 48V 5KW MPPT 230V AC Output
Solar Energy Hybrid Inverter 48V 5KW with Bluetooth, Communication MPPT 230V AC Outout, Communication RS232 RS485 CAN, Pure Sine Wave
| MODEL | SO-SIV-G4MKSC-48V5KVA-P |
| Rated Power | 5000VA/5000W |
| PARALLEL CAPABILITY | Yes, 9 units |
| SOLAR CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 5000 W |
| MPPT Range @ Operating Voltage | 120 ~ 430 VDC |
| Maximum PV Array Open Circuit Voltage | 450 VDC |
| Maxmum Solar Charge Current | 100 A |
| AC CHARGER | |
| Maximum AC Charge Current | 100 A |
| Maximum Charge Current | 100 A |
| INPUT | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% |
| Overload capacity | 5s@≥150% load; 10s@110%~150% load; 100ms @ ≥200% load |
| Efficieny (Peak) | 93 % |
| Transfer Time | 15 ms (For Personal Computers) 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| BATTERY | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
| PHYSICAL | |
| Dimension, D x W x H (mm) | 140 x 295 x 468 |
| Net Weight (kgs) | 12.0 |
| Communication Interface | USB, RS232, RS485, Bluetooth |
| ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -15°C to 60°C |
Battery Parameters
Pure sine wave solar inverter
• Detachable LCD control module with multiple communications
• Wide DC input range
• Built-in Bluetooth for mobile monitoring (Android App is available)
• Supports USB On-the-Go function
• Reserved communication port for BMS (RS485)
• Smart battery charger design for optimized battery performance
• Battery independent function
• Parallel operation up to 9 units
Advantage:
Energy Storage Inverter
Support Bluetooth, Communication RS232 RS485 CAN
Support USB on-the-Go Function
Max. 9pcs in parallel (Max. 45KW)
Pure sine wave, MPPT
Wide DC input range

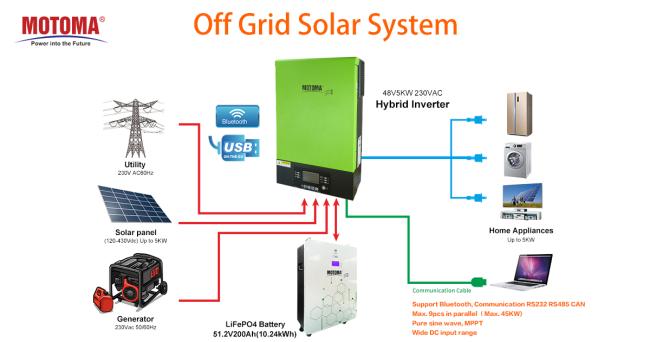

Application:
Home / Villa / Residential / Commercial / Industrial
Fridge, TV, Radio, PC, Printers and Lights
FAQ
1. Q: Is there a MOQ limit?
A: The MOQ is 5PCs per order.
2. Q: What's the normal lead time?
A: Normally it's 15-20 days, and if there is stock, the lead time would be much shorter.
3. Q: Can I get the samples for testing before place an order?
A: Yes, sample order is acceptable.
4. Q: Do you provide customized service
A: Yes, we have professional engineering team for design the inverter
