ZX200 ZX200-3 Planetary Gear Parts Traveling Gear Ring 1025787 3063840 3063842 3063843

Price Negotiable
Price: Negotiated
MOQ: 1pc
Delivery Time: 1-3 working Days
Brand: MENZEH GEARS
Product Description

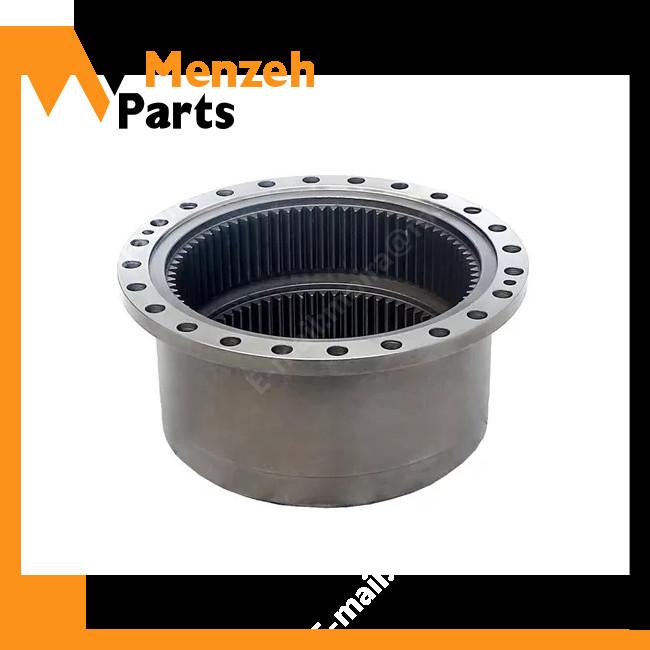

1025787 3063840 3063842 3063843 ZX200 ZX200-3 Planetary Gear Parts Traveling Gear Ring

Part Name Traveling Gear Ring
Part No. 1025787 3063840 3063842 3063843
Used For ZX200 ZX200-3
Warrenty 3 months
After Warranty Video technical support Online support Free Spare parts

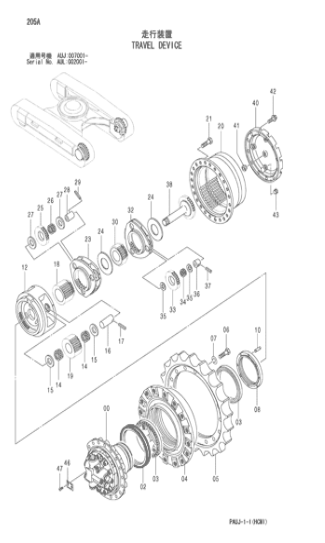

Pos. Part No Qty Parts name Comments
  9170996 [2] TRAVEL DEVICE I 9195447
  9233687 [2] TRAVEL DEVICE I 9233688 (for assembly of machine)
  9195447 [2] TRAVEL DEVICE
  9233688 [2] TRAVEL DEVICE (for transportation)
0 9168003 [1] MOTOR;OIL I 9195451
0 9234034 [1] MOTOR;OIL I 9237802 (for assembly of machine)
0 9195451 [1] MOTOR;OIL
0 9237802 [1] MOTOR;OIL (for transportation)
2 4114753 [1] SEAL;GROUP I 4634693
2 4634693 [1] SEAL;GROUP
3 4246793 [2] BRG.;ROL.
4 1025833 [1] DRUM
5 1018740 [1] SPROCKET
6 J932055 [16] BOLT
7 A590920 [16] WASHER;SPRING
8 3086531 [1] NUT
10 4436242 [1] PIN;KNOCK
12 1025875 [1] CARRIER
14 4438593 [6] BRG.;NEEDLE
15 4284521 [6] PLATE;THRUST
16 4315838 [3] PIN
17 4116309 [3] PIN;SPRING
18 3082156 [1] GEAR;SUN
19 3084353 [3] GEAR;PLANETARY
20 1025787 [1] GEAR;RING
21 J931640 [24] BOLT
23 2042432 [1] CARRIER
24 4401293 [2] SPACER
25 3082155 [3] GEAR;PLANETARY
26 4438592 [3] BRG.;NEEDLE
27 4192982 [6] PLATE;THRUST
28 4402086 [3] PIN
29 4192020 [3] PIN;SPRING
30 3082149 [1] GEAR;SUN
32 1025826 [1] CARRIER
33 3082148 [3] GEAR;PLANETARY
34 4387383 [3] BRG.;NEEDLE
35 4192910 [6] PLATE;THRUST
36 4210853 [3] PIN
37 4173093 [3] PIN;SPRING
38 2042351 [1] SHAFT;PROP.
38 2049585 [1] SHAFT;PROP.
40 2034833 [1] COVER
41 4285323 [1] PIN;STOPPER Y 4478346
41 4478346 [1] PIN;STOPPER
42 J011230 [12] BOLT;SEMS I 4609016
42 4609016 [12] BOLT;SEMS
43 4245797 [3] PLUG
46 3053559 [1] NAME-PLATE
47 M492564 [2] SCREW;DRIVE













FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
