Lq15V00020S071 Lq15V00020S08 YT02C01115D3 2416T13435 YN50C01172P1 Sk250-8 SK170-9 SK260 2Nd Travel Carrier Assy Gear Sun
Price:
Negotiated
MOQ:
1pc
Delivery Time:
1-3 working Days
Brand:
MENZEH GEARS
Product Description

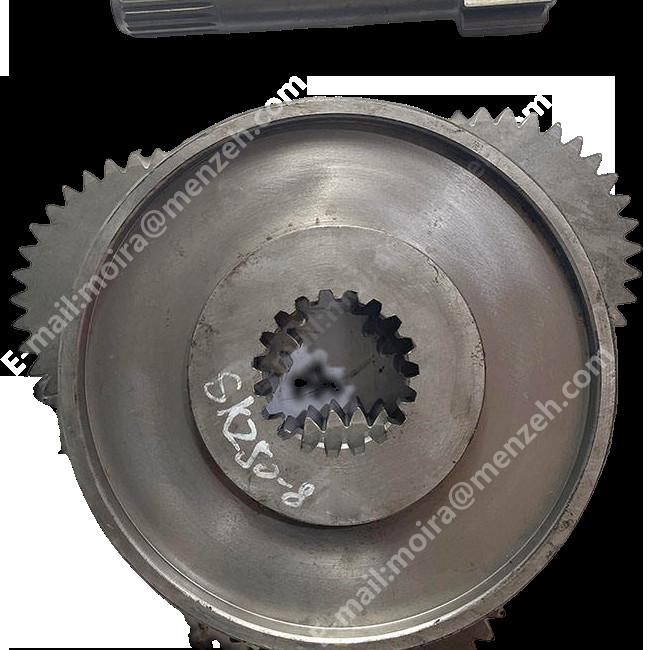

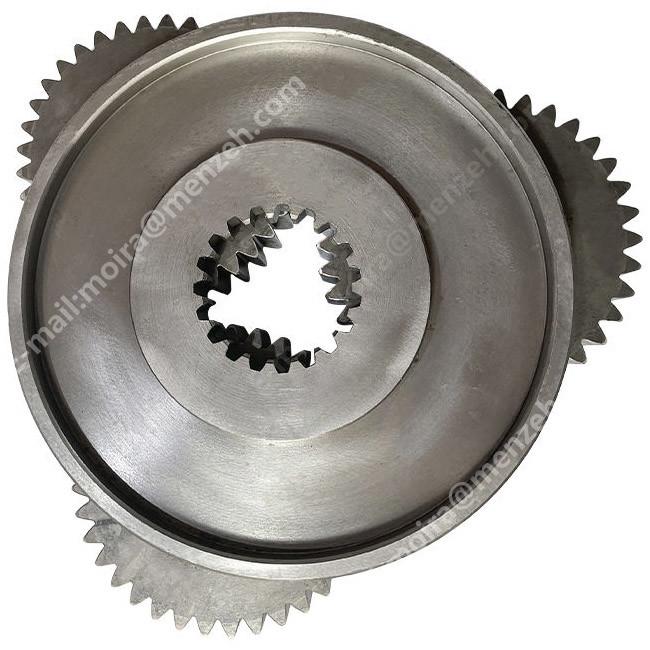

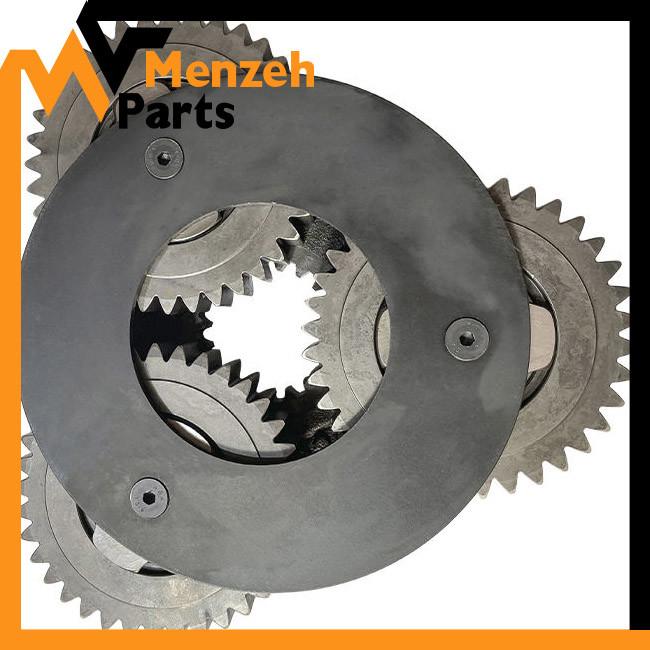

Lq15V00020S071 Lq15V00020S08 YT02C01115D3 2416T13435 YN50C01172P1 Sk250-8 SK170-9 SK260 2Nd Travel Carrier Assy Gear Sun
| Part Name | Carrier Assy |
| Part No. | Lq15V00020S071 Lq15V00020S08 YT02C01115D3 2416T13435 YN50C01172P1 |
| Used For | Sk250-8 SK170-9 SK260 |
| Warrenty | 3 months |
| After Warranty | Video technical support Online support Free Spare parts |

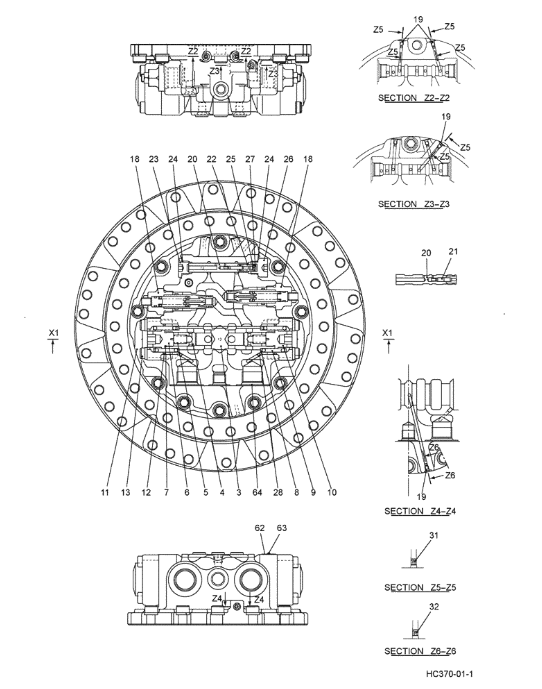

| Pos. | Part No | Qty | Parts name | Comments |
| . . | LQ15V00020F1 | [1] | HYDRAULIC MOTOR | SM ASSY, PROPEL Superseded by part number: LQ15V00020F5 |
| 1 | NA | [1] | NOT SERVICED | FOR FLANGE |
| 2 | NA | [1] | NOT SERVICED | FOR PLATE |
| 3 | NA | [1] | NOT SERVICED | FOR SPOOL |
| 4 | NA | [2] | NOT SERVICED | FOR VALVE,CHECK |
| 5 | NA | [2] | NOT SERVICED | FOR SPRING |
| 6 | NA | [2] | NOT SERVICED | FOR PLUG |
| 7 | ZD12P02100 | [2] | O-RING,2.4mm Thk x 20.8mm ID, 90 Duro | KOB O-Ring -- ID 20.80 ± 0.23 x OD 25mm |
| 8 | 2436U1027S203 | [2] | SEAT/SLOT | KOB |
| 9 | LQ15V00020S009 | [2] | SPRING | SM |
| 10 | 2436U1027S205 | [2] | SEAT/SLOT | KOB |
| 11 | NA | [2] | NOT SERVICED | FOR CAP |
| 12 | ZD12G04500 | [2] | O-RING,44.40mm ID x 50.60mm OD x 3.10mm | KOB ID 44.40 ± 0.41 x OD 50mm |
| 13 | ZS23C12040 | [8] | SCREW,Hex Socket Head, M12 x 40mm | KOB M12x1.75x40mm |
| 14 | 2436U281S37 | [2] | BALL | KOB |
| 15 | 2441U792S18 | [2] | SPRING | SM |
| 16 | 2441U792S19 | [2] | PLUG | SM |
| 17 | ZD12P00800 | [2] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB ID 7.8mm x OD 9.7mm |
| 18 | YN23V00003F1 | [2] | VALVE PRESSURE RELIE | KOB SEE (HC38) |
| 19 | NA | [8] | NOT SERVICED | FOR PLUG |
| 20 | NA | [1] | NOT SERVICED | FOR SPOOL |
| 21 | NA | [1] | NOT SERVICED | FOR SPOOL |
| 22 | LQ15V00007S027 | [1] | SPRING | KOB |
| 23 | 2441U792S141 | [1] | PLUG | KOB |
| 24 | ZD12P01800 | [2] | O-RING | KOB ID 17.8mm x OD 20.2mm |
| 25 | LQ15V00007S030 | [1] | GUIDE PIN | KOB |
| 26 | LQ15V00007S031 | [1] | PLUG | KOB |
| 27 | 2441U983S27 | [1] | WASHER | KOB |
| 28 | NA | [2] | NOT SERVICED | FOR ORIFICE |
| 29 | NA | [4] | NOT SERVICED | FOR PLUG |
| 30 | ZD12P01100 | [4] | O-RING | KOB ID 10.8mm x OD 13.2mm |
| 31 | NA | [3] | NOT SERVICED | FOR ORIFICE |
| 32 | NA | [1] | NOT SERVICED | FOR ORIFICE |
| 33 | LQ15V00007S042 | [1] | SHAFT | KOB |
| 34 | NA | [1] | NOT SERVICED | FOR BLOCK,CYLINDER |
| 35 | NA | [9] | NOT SERVICED | FOR PISTON ASSY |
| 36 | NA | [1] | NOT SERVICED | FOR PLATE,RETAINER |
| 37 | NA | [1] | NOT SERVICED | FOR HOLDER,RETAINER |
| 38 | YN15V00005S114 | [1] | SNAP RING | KOB |
| 39 | YN15V00005S115 | [1] | SPRING SEAT | KOB |
| 40 | YN15V00005S116 | [1] | SPRING | KOB |
| 41 | YN15V00005S117 | [1] | RING | KOB |
| 42 | 2441U792S119 | [3] | PIN | KOB |
| 43 | LQ15V00020S043 | [1] | PLATE | SM |
| 44 | 2441U792S110 | [2] | BALL | KOB |
| 45 | NA | [2] | NOT SERVICED | FOR PISTON ASSY |
| 46 | LQ15V00007S055 | [1] | BALL BEARING | KOB |
| 47 | LQ15V00007S056 | [1] | BALL BEARING | KOB |
| 48 | LQ15V00020S048 | [1] | PIN | SM |
| 49 | ZS23C14035 | [10] | SCREW,Hex Socket Head, M14 x 35mm | KOB M14x2.0x35mm |
| 50 | LQ15V00020S050 | [1] | SEAL | SM OIL SEAL |
| 51 | LQ15V00020S051 | [3] | PLATE | SM DISK Superseded by part number: LQ15V00031R940 |
| 52 | 2441U983S126 | [2] | PLATE | KOB |
| 53 | LQ15V00020S053 | [1] | PISTON | SM BRAKE |
| 54 | 2441U984S42 | [1] | O-RING | KOB |
| 55 | 2441U983S130 | [1] | O-RING | KOB |
| 56 | 2441U792S130 | [6] | SPRING | KOB |
| 57 | YN15V00005S128 | [4] | PIN | KOB |
| 58 | YN15V00005S139 | [2] | SPRING | KOB |
| 59 | LQ15V00020S059 | [1] | PLATE | SM VALVE |
| 60 | ZD12P01000 | [4] | O-RING | KOB ID 09.80 ± 0.17 x OD 13mm |
| 61 | 2441U802S30 | [1] | O-RING | KOB |
| 62 | NA | [1] | NOT SERVICED | FOR NAME PLATE |
| 63 | NA | [2] | NOT SERVICED | FOR SCREW,DRIVE |
| 64 | NA | [2] | NOT SERVICED | FOR PLUG |
| 65 | NA | [1] | NOT SERVICED | FOR PLUG |
| 66 | NA | [1] | NOT SERVICED | FOR PLUG |
| 67 | LQ15V00020S067 | [2] | SEAL | SM SEAL, FLOATING |
| 68 | LQ15V00007S077 | [2] | BEARING | KOB |
| 69 | NA | [1] | NOT SERVICED | FOR |
| 70 | NA | [1] | NOT SERVICED | FOR SHIM (0.05) |
| 71 | LQ15V00020S071 | [1] | RUBBER RING | SM HOLDER |
| 72 | LQ15V00007S081 | [8] | FRICTION WASHER | KOB |
| 73 | LQ15V00007S082 | [8] | SCREW | KOB |
| 74 | LQ15V00020S074 | [4] | PLATE | SM THRUST |
| 75 | LQ15V00007S084 | [4] | RACE | KOB |
| 76 | LQ15V00020S076 | [4] | NEEDLE BEARING | SM NEEDLE |
| 77 | LQ15V00007S086 | [4] | DRIVEN GEAR | KOB |
| 78 | LQ15V00020S078 | [4] | PLATE | SM THRUST |
| 79 | LQ15V00007S088 | [4] | SCREW | KOB |
| 80 | LQ15V00020S080 | [1] | GEAR | SM SUN |
| 81 | LQ15V00007S090 | [1] | RING | KOB |
| 82 | LQ15V00020S082 | [1] | CARRIER | SM HOLDER |
| 83 | LQ15V00007S092 | [3] | PLATE | KOB |
| 84 | LQ15V00020S084 | [3] | RACE | SM INNER |
| 85 | LQ15V00020S085 | [3] | NEEDLE BEARING | SM NEEDLE |
| 86 | LQ15V00020S086 | [3] | GEAR | SM |
| 87 | LQ15V00007S096 | [3] | PLATE | KOB |
| 88 | LQ15V00020S088 | [1] | PLATE | SM THRUST |
| 89 | LQ15V00007S098 | [3] | SCREW | KOB |
| 90 | LQ15V00020S090 | [1] | GEAR | SM DRIVE |
| 91 | NA | [1] | NOT SERVICED | FOR PLATE,THRUST |
| 92 | LQ15V00007S101 | [1] | COVER | KOB |
| 93 | ZS28C10016 | [16] | SCREW,Hex Socket Head, M10 x 16mm | KOB M10x1.50x16mm |
| 94 | LQ15V00007S103 | [3] | PLUG | KOB |
| 95 | ZD12P02400 | [3] | O-RING | KOB ID 23.70 ± 0.24 x OD 30mm |
| 96 | LQ15V00007S105 | [4] | PIN | KOB |
| K. | LQ15V00020R100 | [1] | KIT | SM REPAIR, CONSISTS OF ITEM 7X2, 12X2, 17X2, 24X2, 30X4, 50X1 54X1, 55X1, 60X4, 61X1 |
| K. | LQ15V00020R200 | [1] | KIT | SM REPAIR, CONSISTS OF ITEM 67X2, 95X3 Superseded by part number: LQ15V00031R200 |
| K. | LQ15V00020R300 | [1] | KIT | SM REPAIR, CONSISTS OF ITEM 1X1, 45X2 |
| K. | LQ15V00020R400 | [1] | KIT | SM REPAIR, CONSISTS OF ITEM 2X1, 3X1, 4X2, 5X2, 6X2, 7X2, 19X8, 20X1, 21X1, 28X2, 29X4, 30X4, 31X3, 32X1 |
| K. | 2441U792S13 | [1] | CAP | KOB REPAIR KIT, CONSISTS OF ITEM 11X2, 12X2, 13X8, 14X2, 15X2, 16X2 17X2 |
| K. | LQ15V00020R600 | [1] | BLOCK | KOB REPAIR KIT, CONSISTS OF ITEM 34X1, 35X9, 36X1, 37X1, 38X1, 39X1, 40X1, 41X1, 42X3 |
| K. | LQ15V00007R700 | [1] | REPAIR KIT | KOB CONSISTS OF ITEM 70X1 |
| K. | LQ15V00007R800 | [1] | REPAIR KIT | KOB CONSISTS OF ITEM 91X1 |
| K. | LQ15V00020R900 | [1] | REDUCER | KOB REPAIR KIT, CONSISTS OF ITEM 67X2, 68X2, 69X1, 70X1, 71X1, 72X8, 73X8, 74X4, 75X4, 76X4, 77X4, 78X4 |
FAQ:
1. If I only know the excavator model, but can not offer parts No., what should I do ?
If possible, you can send us pictures of old products, nameplate or the measurement for reference, or we would supply you parts picutres, sizes for your confirmation.
2. What is the warranty of the parts after I purchased?
The warranty is 6/12 Months based on the item details.
3. How can I pay the order?
We can receive payment through T/T, Paypal(for small amount), Alibaba trade assurance.
4. When will get the items after I place order?
Once your payment is confirmed, we will arrange the goods in 1-3 working days; if not in stock , we will inform you before placing the order.
5. How can I do if there is something wrong with the items?
First of all, we have full confidence in our professional knowledges, and we also supply experienced engeerneers checking before sending parts to you, if still have answers, please supply us pictures or vedio for further checking and confirmation, after we confirmed us wrong, we would supply you parts freely, or return parts to us, or other mathoths to save costs during fixing...
6. What is your main products ?
We are specialized in the excavator gear parts, such as travel gearbox/ass'y/parts, swing gearbox/ass'y. If you need other excavator parts, we also can supply as your requirements.
